Slide Gate Operators / Eagle I

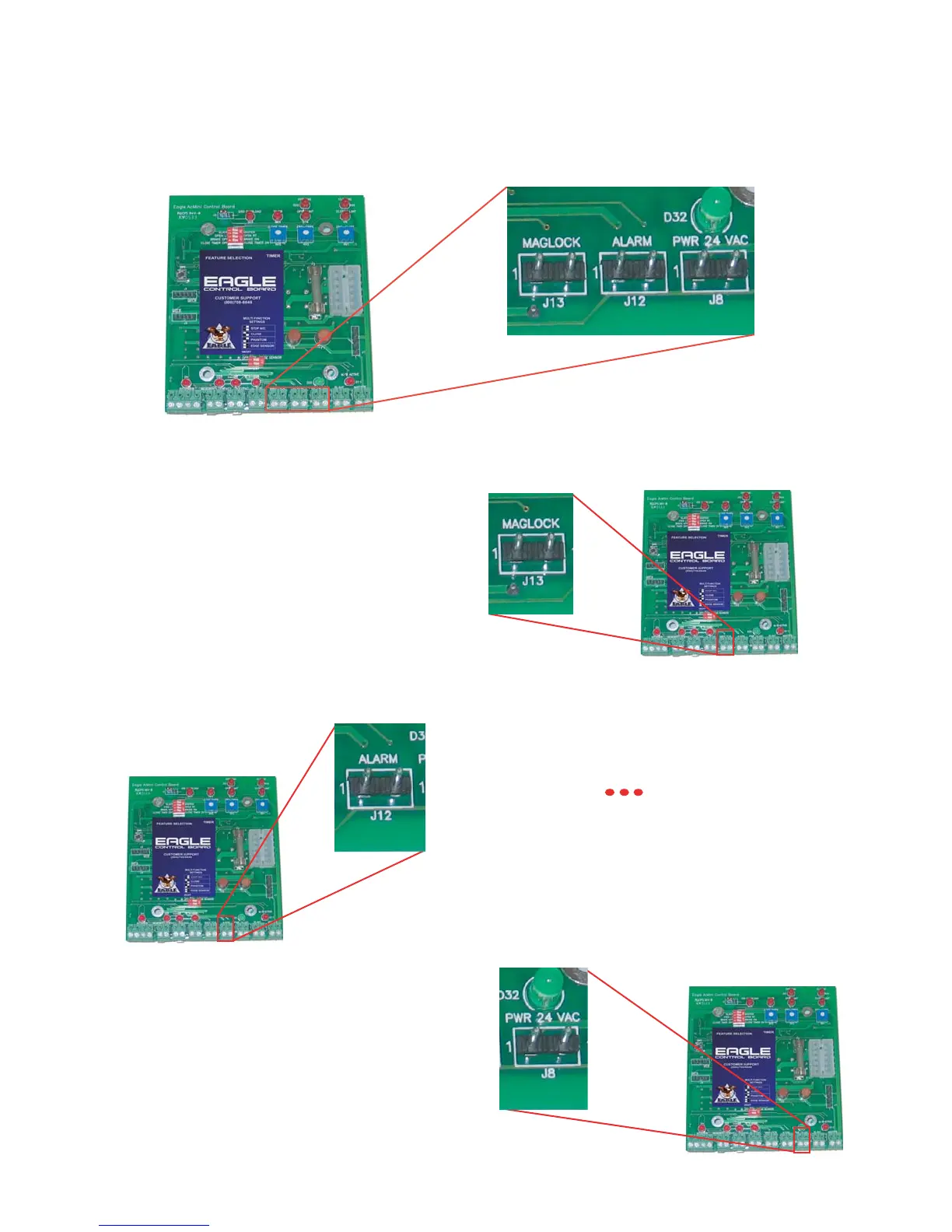

Describing The Output Connections
____________________
Alarm (12 VDC)
Power (24 VAC)
MAG Lock Solenoid Connections (24 VDC)
The Control Board provides a 24VDC
and relay output for MAG Locks
or Solenoids.
The Control Board provides 24 VAC Power,
which can be used for loop detectors
and receivers.
Eagle Access Control Systems, Inc. / (800) 708-8848 / www.eagleoperators.com
(14)
Safety Alarm: If the gate hits an obstruction
twice while closing or opening, the system will
shut down for 5 minutes. On the Board, you
have two options of reset mode.
Selecting the "off" position will require a
"manual reset" of the board if the previous
happens. However, by selecting the "On"
position, the system will automatically reset
itself.
Entire Output Section
