Eagle I - Receiver Connections; Gate Travel Distance; Setting The Limit Switches

Slide Gate Operators / Eagle I
____________________

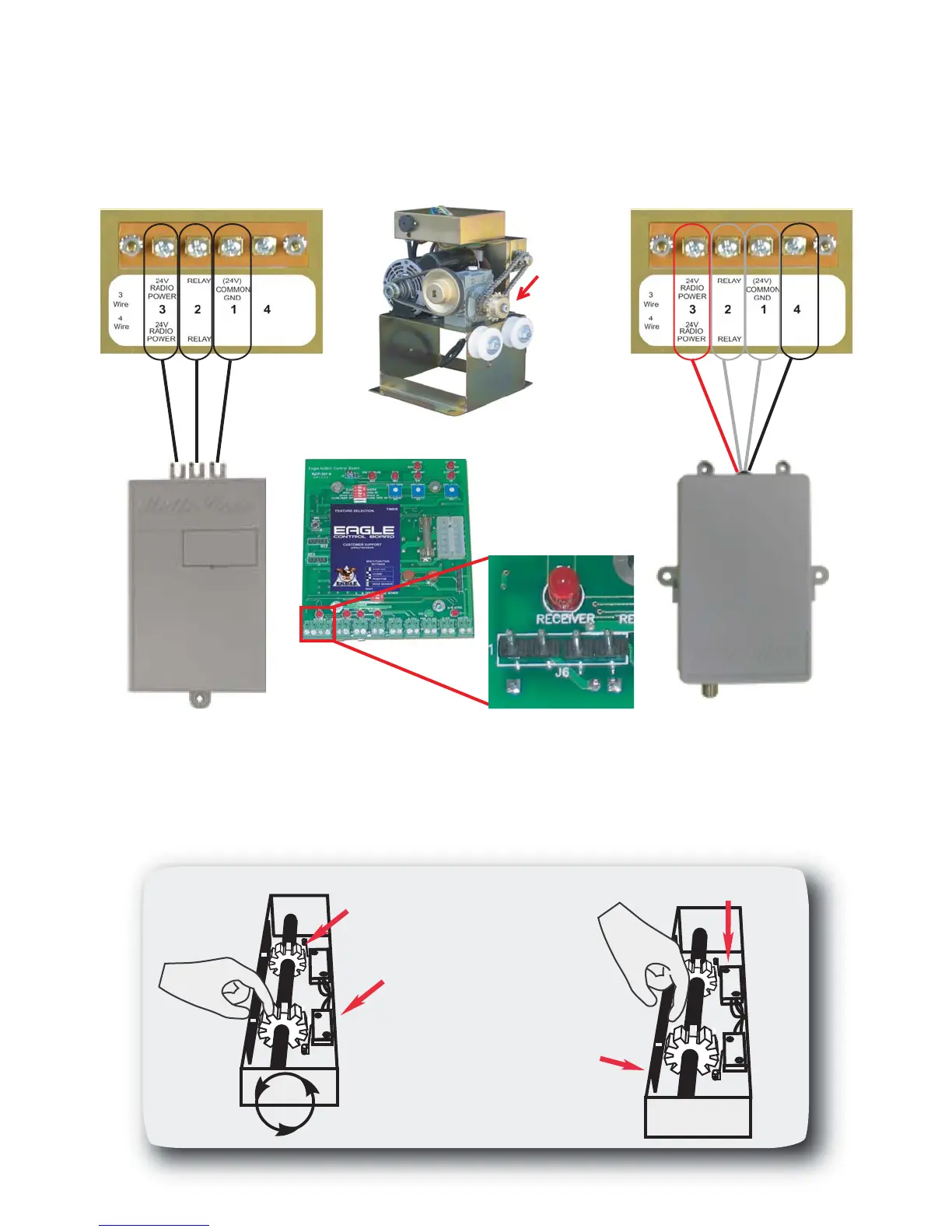

Receiver Connections
Gate Travel Distance / Setting The Limit Switches
The limit switches must be set so that the gate stops at the proper
position. Follow these instructions to appropriately set the limit switches.
4-Wire Connections3-Wire Connections
The Receiver Terminal is mounted on the control box for easy
installation and is pre-wired for a 3-wire or 4-wire receiver.
____________________
Adjust cams for
proper stoppage
Be sure that the locking plate
is locked into place after each
adjustment
Limit Switches
Eagle Access Control Systems, Inc. / (800) 708-8848 / www.eagleoperators.com
(17)
Limit Switches
(24V)
COMMON
GRD
(24V)
COMMON
GRD
Receiver Connections
on the Eagle Diamond
Board
