Slide Gate Operators / Eagle I
____________________

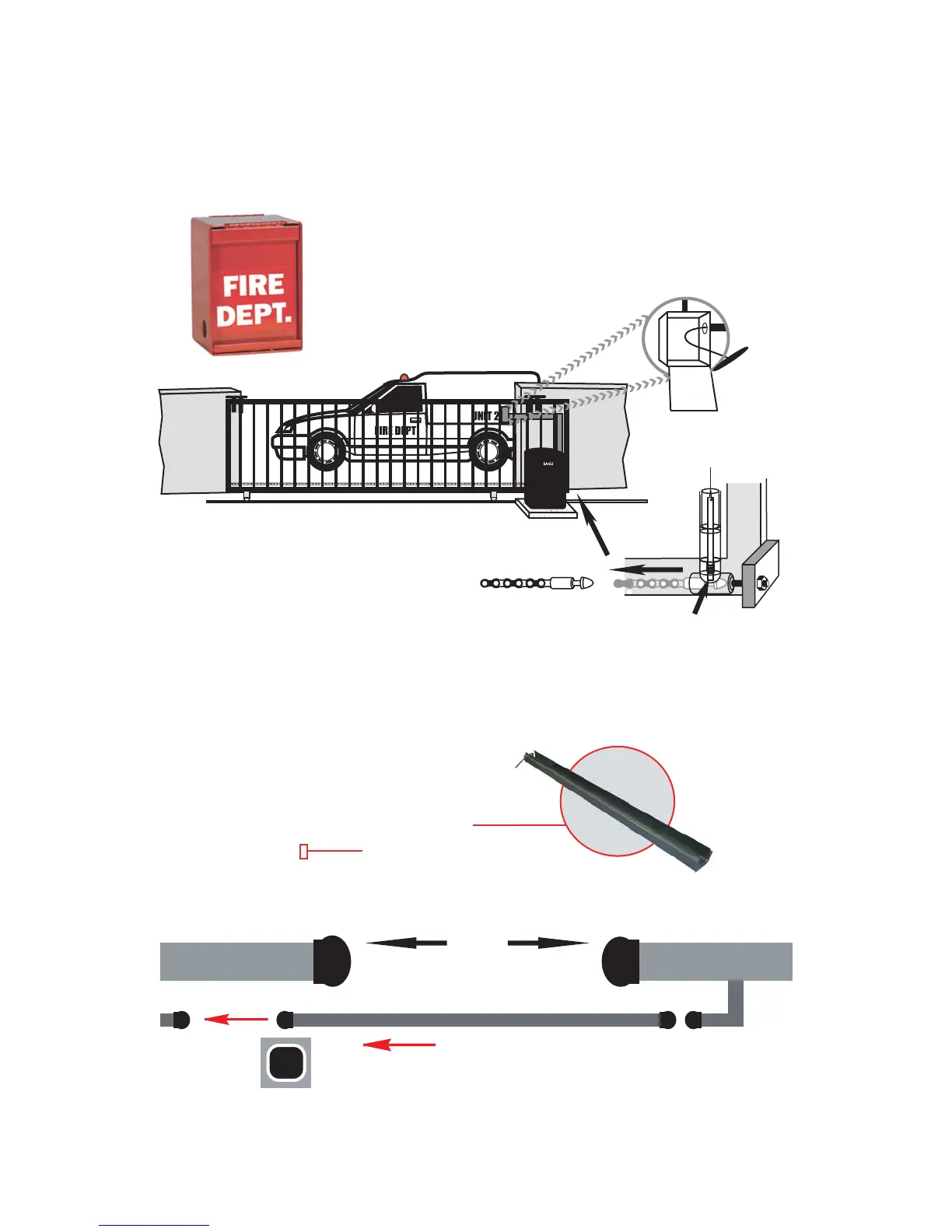

The Fail Safe System
Optional Release Procedure
Using the Eagle-2070-Fire Box
____________________
Eagle Access Control Systems, Inc. / (800) 708-8848 / www.eagleoperators.com
(18)
Pull Firmly On
The "T" Handle
To Release
The Chain
TURN THE POWER TO THE GATE OPERATOR OFF
AND UNLOCK THE FIRE BOX
THE CHAIN IS HELD IN PLACE BY A SPRING LOADED PIN
The Fail Safe System does not require a crank or special tool to manually open the gate in case
of emergency. If a situation does arrise, simply turn off the power switch and push open the gate.
Mounting The Secondary Entrapment
Note: Eagle Access Control Systems, Inc.
recommends the installation of Edge Sensors
on all sliding gate operator systems.
Edge Sensors should be
appropriately installed at
recommended locations to
ensure proper entrapment
protection against injury.
All Edge Sensors are shown
at recommended locations.
*
All Contact Sensors
Are Connected To
Edge Sensor Inputs
Eagle Operator
EDGE SENSORS
WALL WALL
GATE OPENING
*
*
*
*
**
(TOP VIEW)
