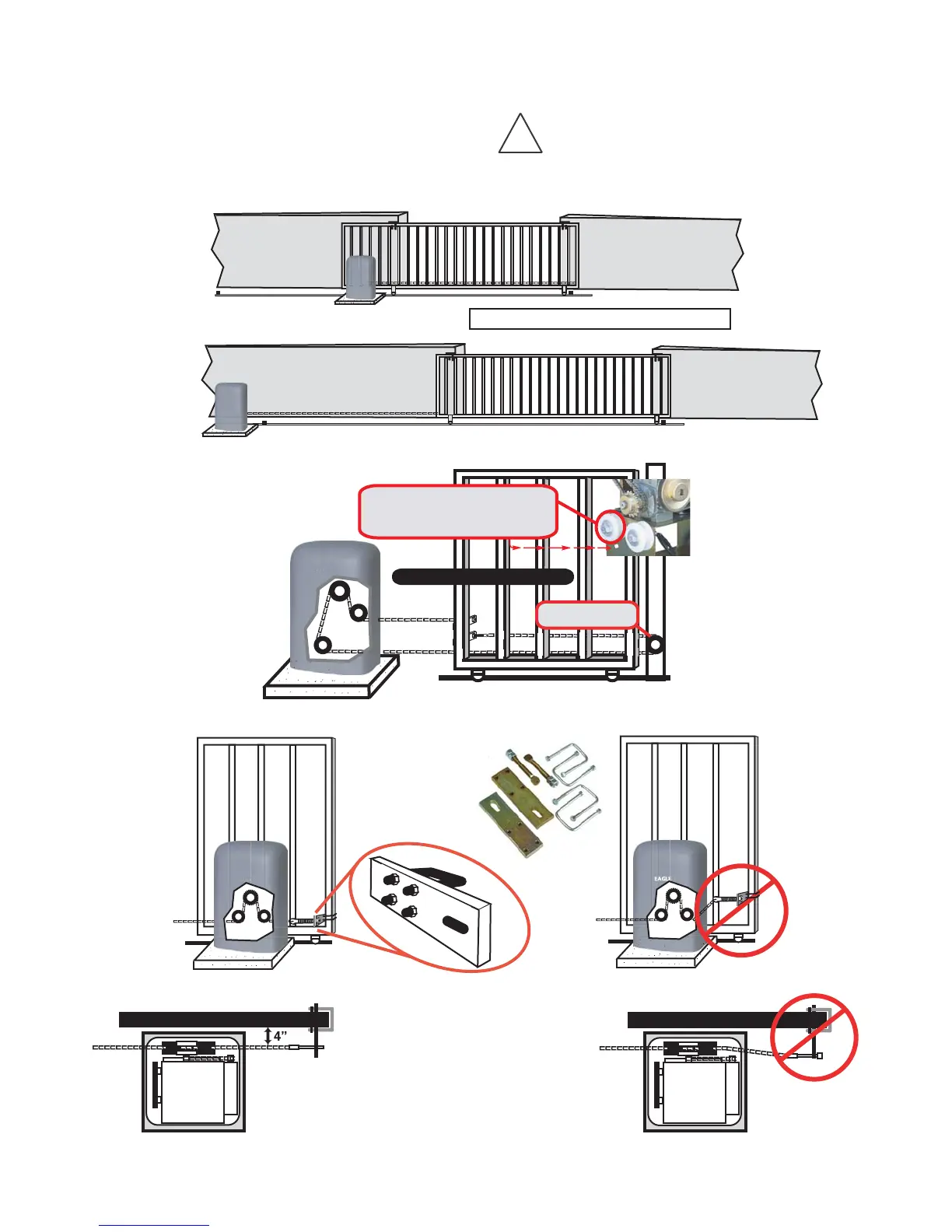

Methods of Installation
It is highly recommended to install "over travel stops" at both ends of the gate rail in any type of installation
in order to prevent derailing.
Front Installation
Rear Installation
Proper Chain Installation
Eagle Access Control Systems, Inc. / (800) 708-8848 / www.eagleoperators.com
(7)
CAUTION!
!
The "No Weld Chain Kit"
comes standard with
all sliding gate units.
K
i
t"
Recommended Positive Stop Locations
**
**
*
CORRECT
Minimum space between gate and
output sprocket must be 4". After you
position the gate operator, bolt-down
the operator to the concrete bed. Make
certain the concrete bed is solid.
____________________
____________________
EAGLE
Rear Chain Installation
For Rear Installations, be sure to drop the
Idler Wheel farthest from the gate to the
lower position that is provided on the
Chassis.
Extra Idler Wheel
EAGLE
EAGLE
EAGLE
EAGLE
