Slide Gate Operators / Eagle I
____________________

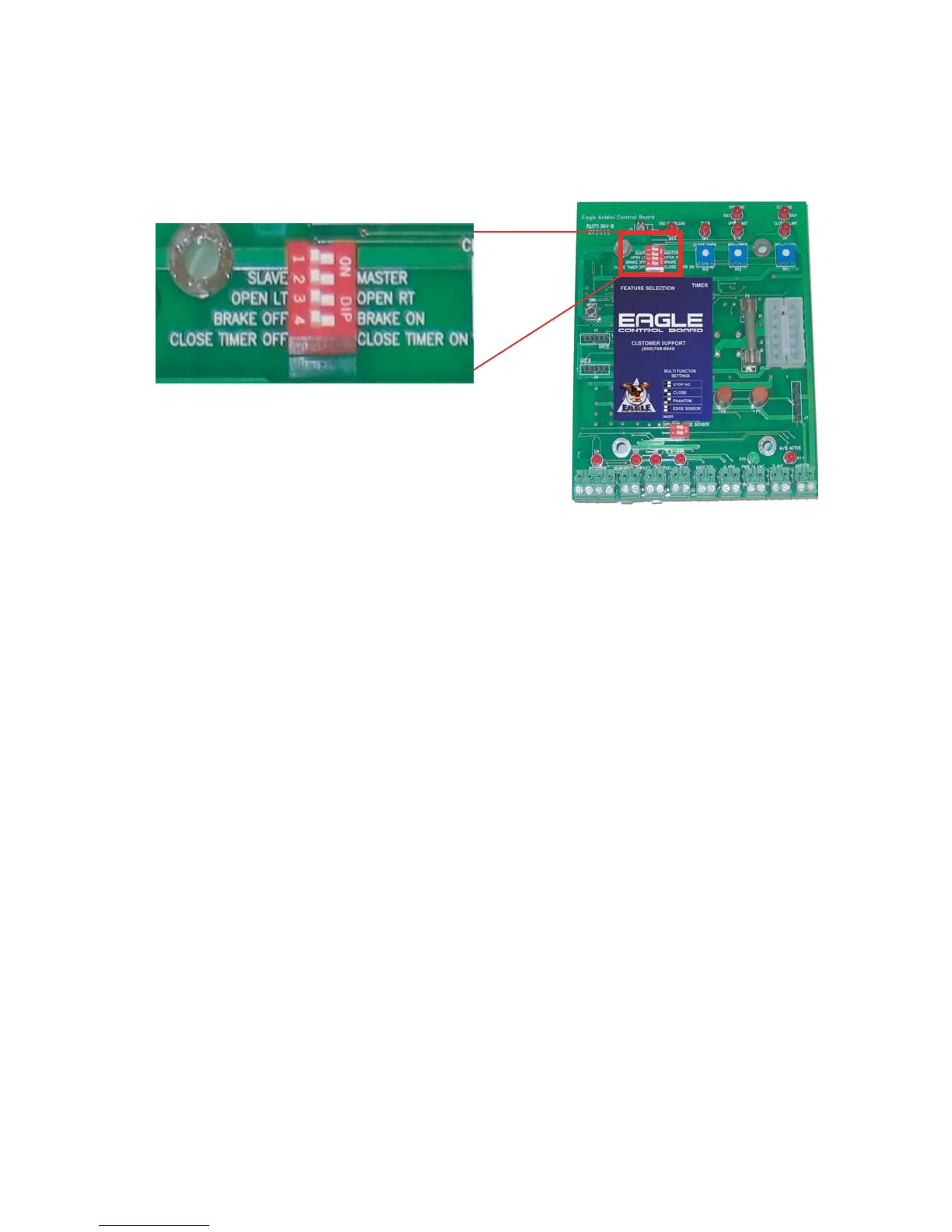

Slave Control Options
Eagle Access Control Systems, Inc. / (800) 708-8848 / www.eagleoperators.com
(13)
Switch #1 must be set to the Slave
or to the "off" position.
Switch #2 must be set to the "open
left" or to the "open right" position.
Switch #3 brake on / off.
Switch #4 Not in use.
