Eagle T20CF - Page 23

- 23 -
6. Machine Parts & Illustrations

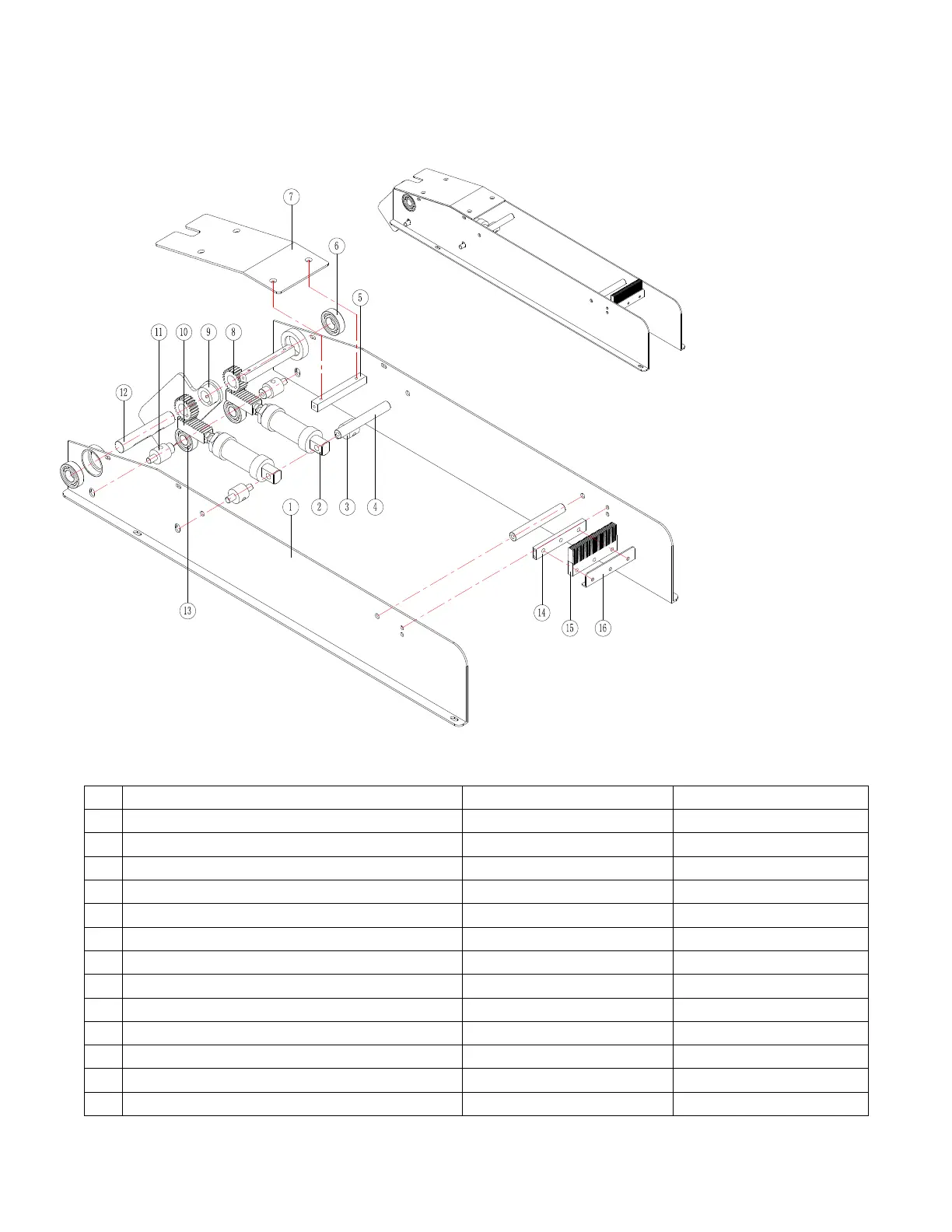

6.7 Front Cover-Folding Assembly
Description
Part Number
Qty
1
Machine Core Support Plate
CF-20TX-15
2
2
Cylinder
MAL32x30-CA
2
3
Folding front Cylinder Back Shaft
CF-20TX-4
2
4
Connecting Rod
CF-01-04-190
2
5
Transition Plate Fixing Bar
CF-20TX-13
2
6
Bearing
6004
2
7
Transition Plate
CF-20TX-14
1
8
Folding Front Gear
CF-20TX-3
2
9
Folding Front Plate Combination
CF-20TX-7
1
10
Folding Front Rack
CF-20TX-2
2
11
Folding Front Rack Bearing Shaft
CF-20TX-5
2
12
Folding Front Turning Shaft
CF-20TX-8
1
13
Bearing
6203
2
