Eagle T20CF - Carton Sealer - Rear Roller

- 35 -
6. Machine Parts & Illustrations

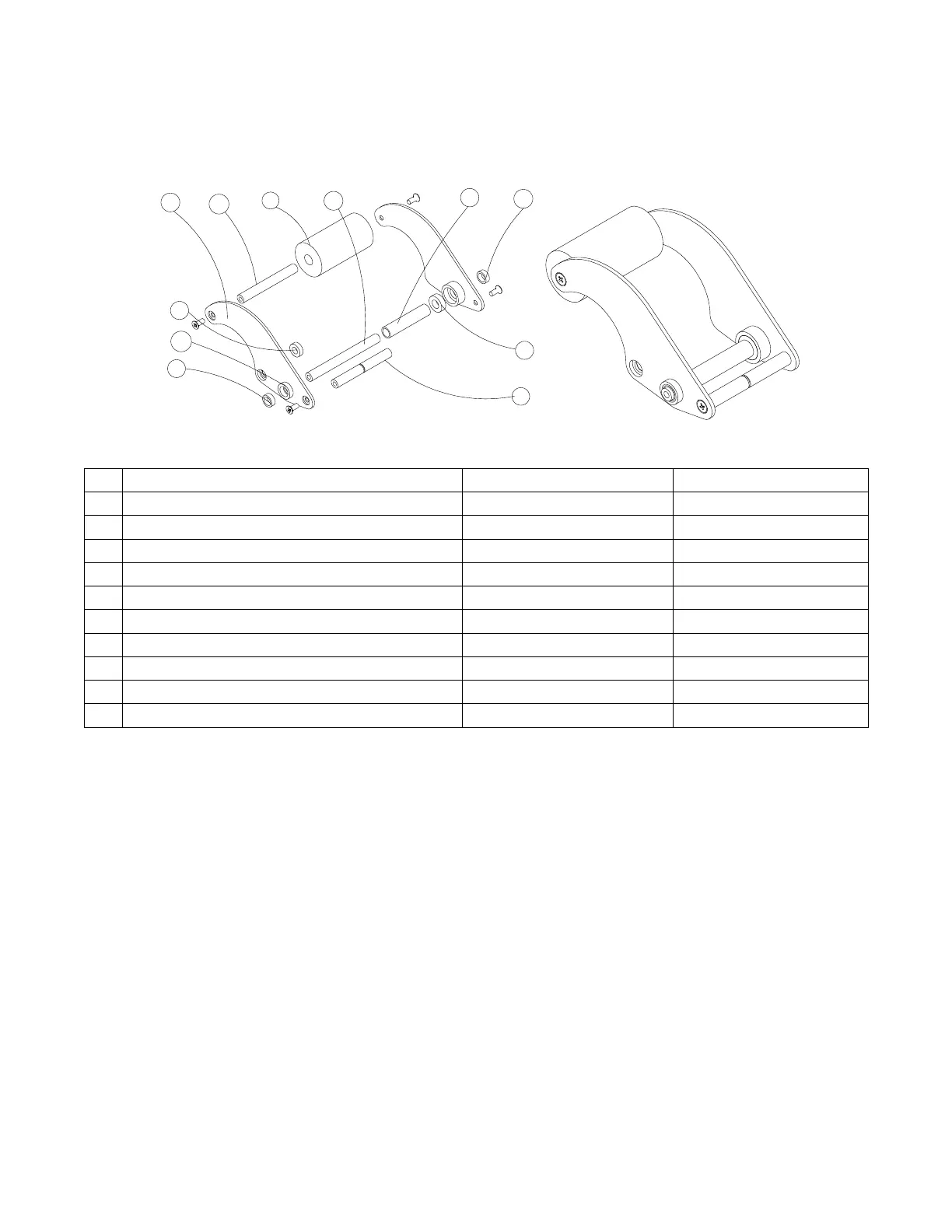

6.13 Carton Sealer - Rear Roller Assembly
10
9
6
5
4
3
2
1
6
8
7
Description
Part Number
Qty
1
Rear Connecting Plate
FJ-01-13
1
2
Front & Back Roller Shaft
FJ-00-10
1
3
Back Rubber Roller Wheel
FJ-40-03
1
4
Main Shaft
FJ-00-06
1
5
Main Shaft Sleeve
FJ-02-05
1
6
Back Locating Ring
FJ-02-06
2
7
Bearing
6800Z (26800)
2
8
Tension Spring Shaft
FJ-00-05
1
9
Washer
FJ-02-00
1
10
Bearing
688Z (208088)
1
