Eagle T20CF - Tape Knife

- 38 -
6. Machine Parts & Illustrations

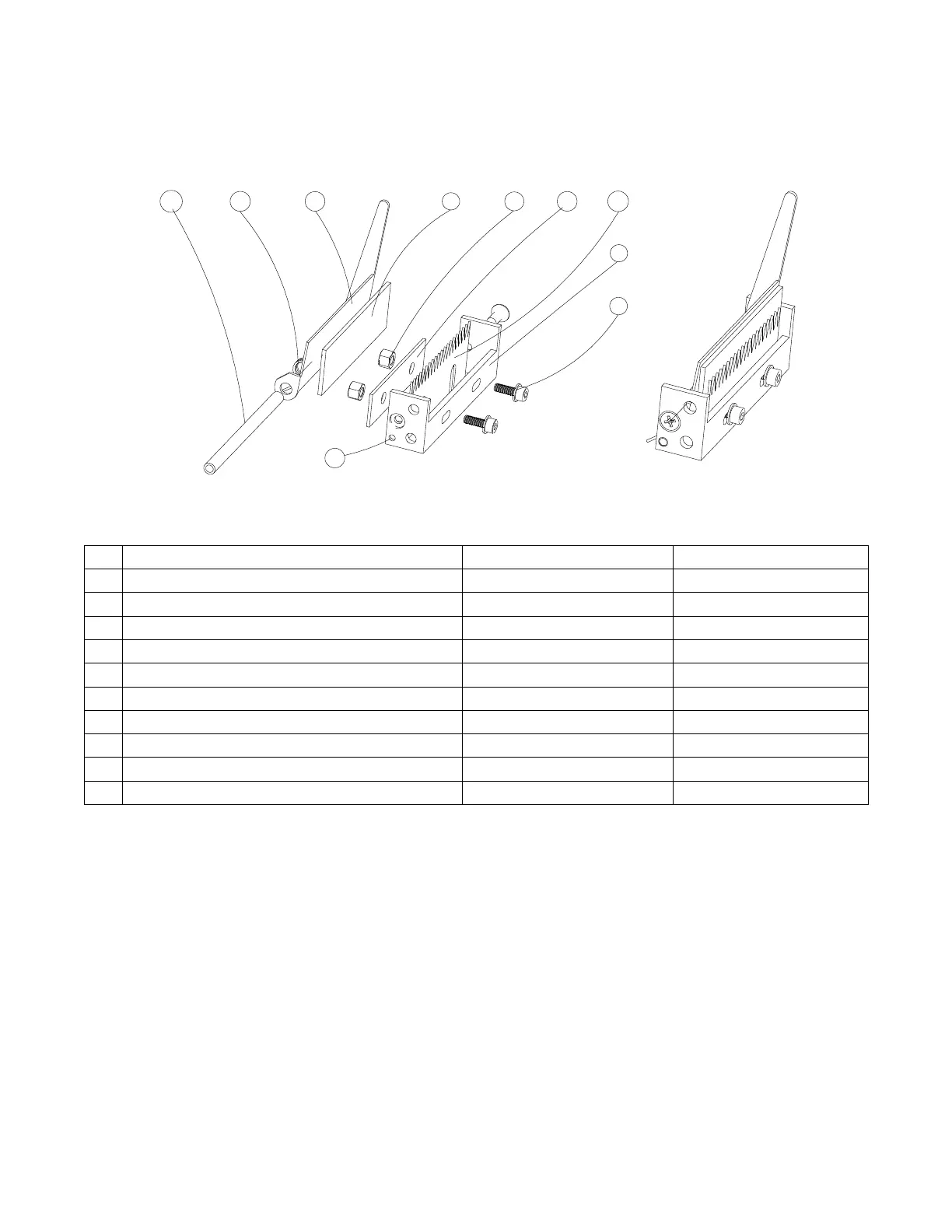

6.16 Tape Knife Assembly
10
9
8
7
6
5
4
3
2
1
Description
Part Number
Qty
1
Knife Back Plate Shaft
FJ-00-00
1
2
Torsion Spring
FJ-H-01
1
3
Blade Carrier Cover
FJ-01-06
1
4
Sponges
1
5
Nut
M4
1
6
Knife Board
FJ-40-04
1
7
Blade
1
8
Blade Carrier Block
FJ-01-07
1
9
Hex Socket Screw
M4x16
2
10
Cross Flat Touch Screw
M4x12
1
