SH-TSX Product Manual - © EasyIO / www.easyio.eu

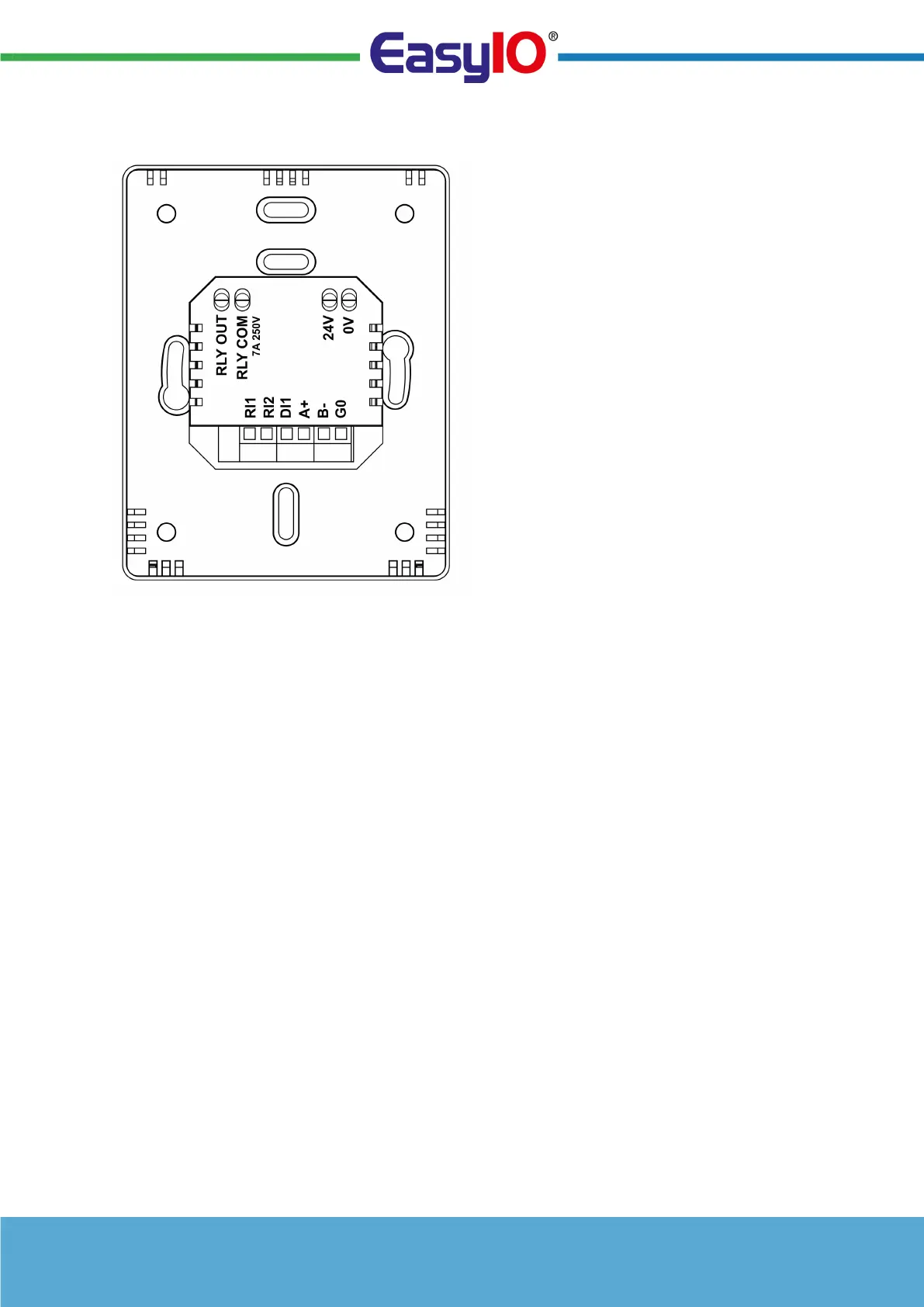

Wiring connections
24V Model Wiring
RLY OUT 250VAC/30VDC 7A Relay Contact
RLY COM 250VAC/30VDC 7A Relay Contact
24V 24Vac/dc Supply
0V 0V Supply
RI1 Remote NTC10 Temperature Sensor Input 1
RI2 Remote NTC10 Temperature Sensor Input 2
DI1 Volt-Free Digital Input Contact
A+ Modbus / BACnet MS/TP RS485 A+ Connection
B- Modbus / BACnet MS/TP RS485 B- Connection
G0 0V Common
WARNING: Switch off the power before any wiring is carried out.
