INPUT ISOLATION TRANSFORMER INSTALLATION
Eaton 9155 UPS (8–15 kVA) User's Guide S 164201553 Rev G (www.eaton.com/powerquality)
23

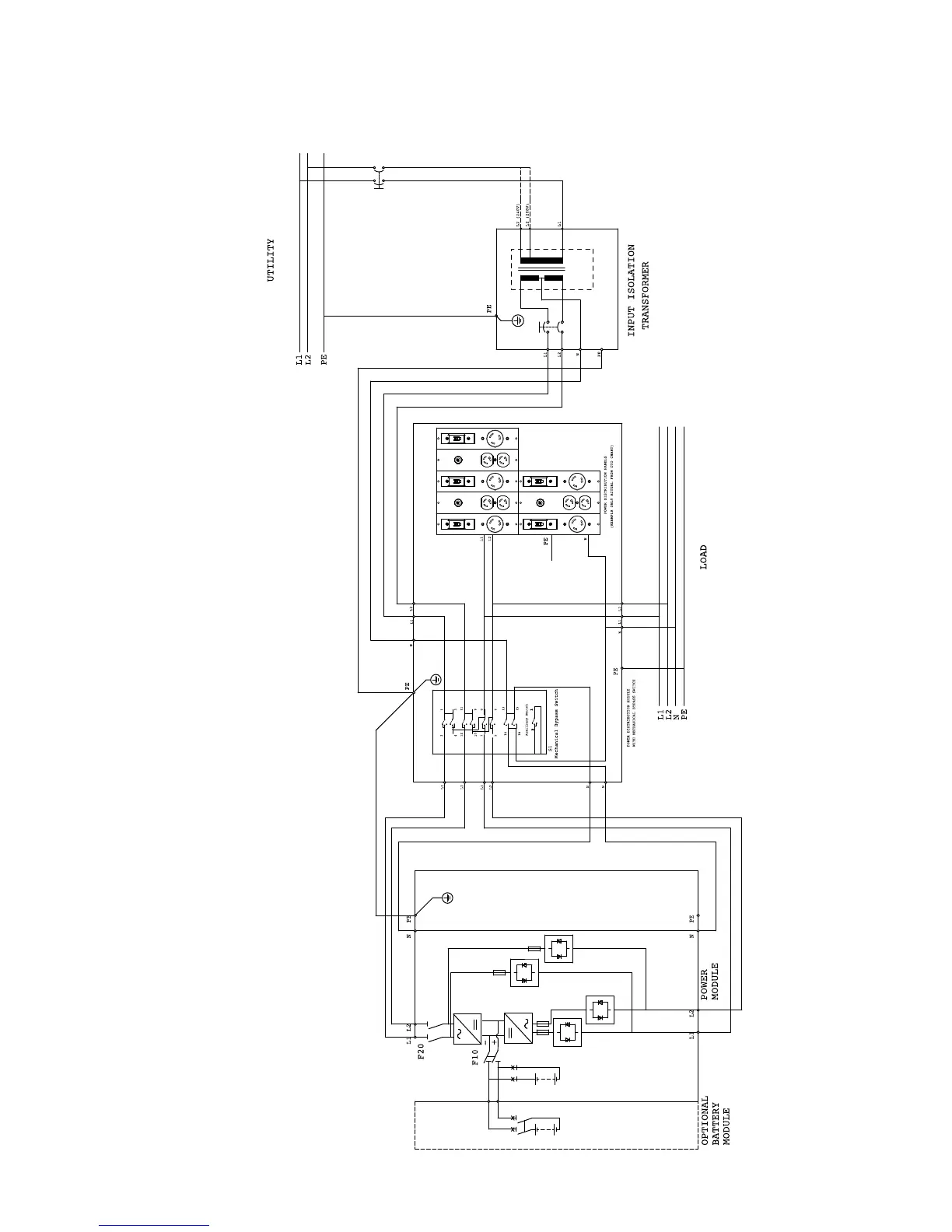

Figure 13. UPS with Input Isolation Transformer and MBM/PDM Wiring Diagram
