UPS Installation Plan and Unpacking

Eaton 93PM UPS (20–50 kW, 480V Four Wire – 50 kW Frame) Installation and Operation Manual P-164000540—Rev 4 www.eaton.com/powerquality 3-9

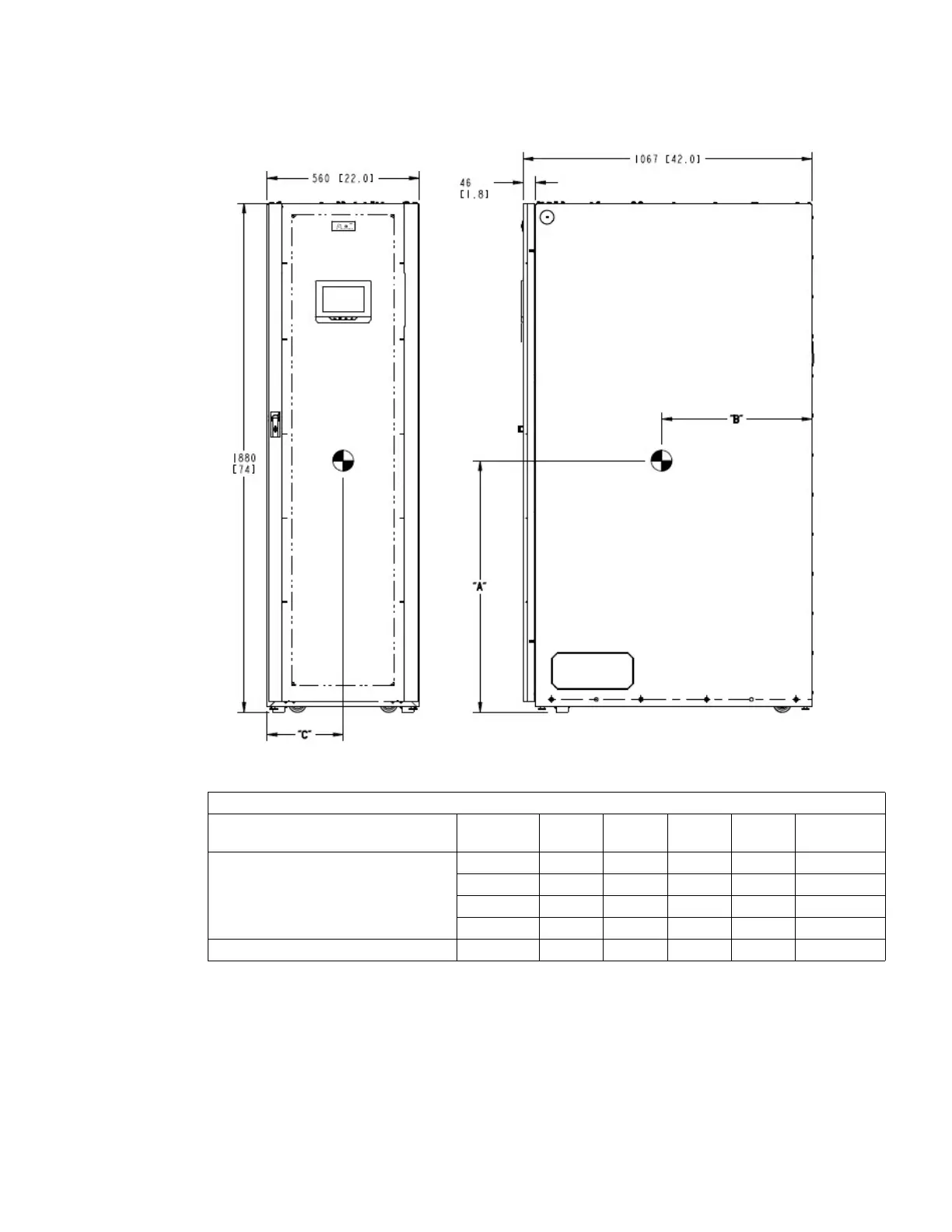

Figure 3-6. UPS Cabinet Center of Gravity

Weight and Center of Gravity

Internal

Battery Strings Frame

mm (in)

Installed Weight

kg (lb)

Eaton 93PM-50-1 UPS

0 Capacity 985 (38.7) 560 (22) 273 (10.7) 318 (702)

3 Capacity 848 (33.4) 548 (21.5) 277 (10.9) 761 (1678)

4 Capacity 865 (34) 545 (21.4) 277 (10.9) 865 (1909)

0 Redundant 975 (38.4) 561 (22.1) 274 (10.7) 334 (737)

Eaton 93PM-50-2 UPS 0 Redundant 1032 (40.6) 557 (21.9) 275 (10.8) 421 (929)

Dimensions are in millimeters [inches]
