UPS Operating Instructions
Eaton 9E UPS (40–60 kVA, 208/220V) Installation and Operation Manual P-164000058—Rev 4 www.eaton.com/powerquality 6-9

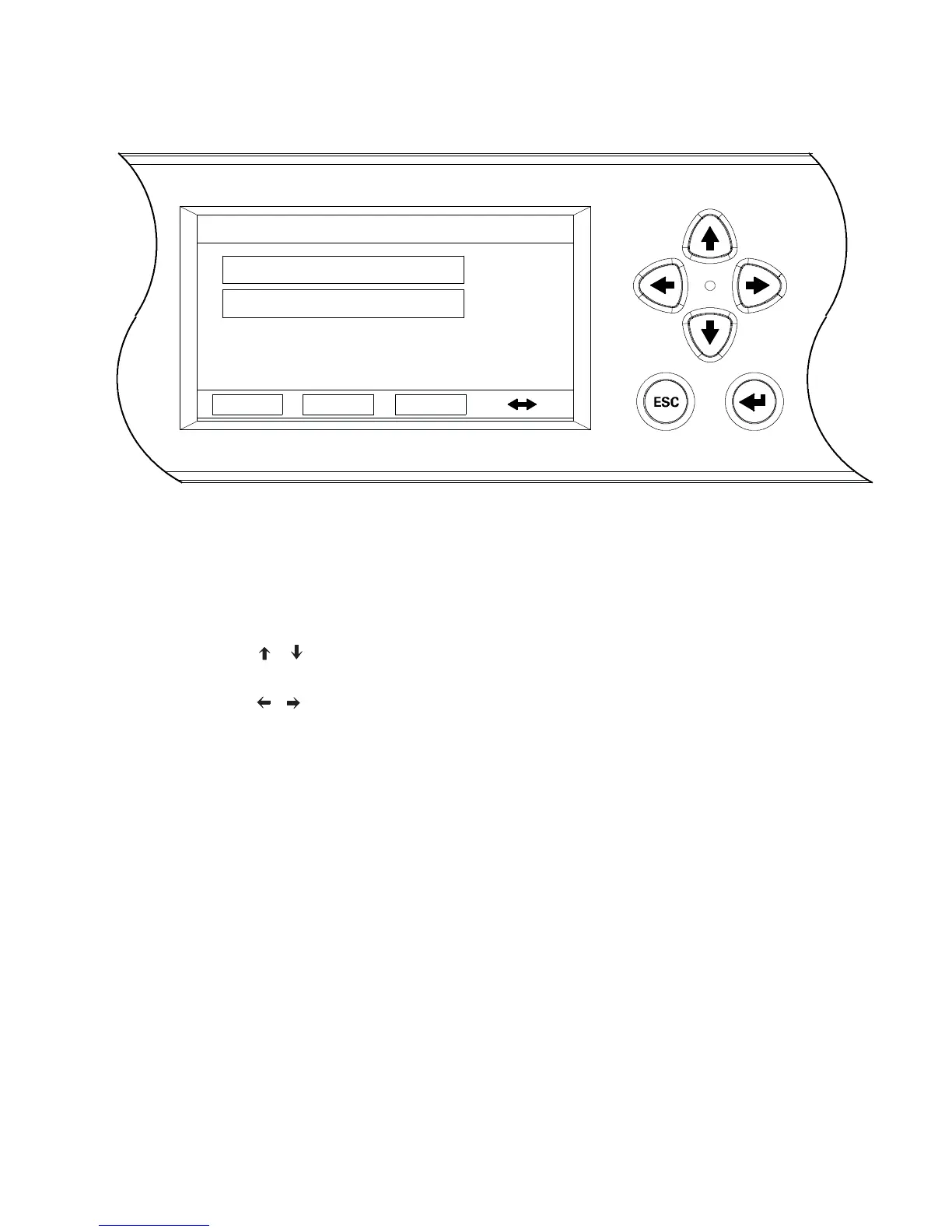

Figure 6-6. Typical Initial Setup Screen
6.2.7 System Controls
Select the CONTROLS symbol on the main menu bar, then press the RETURN pushbutton to display the
Controls screen. Normal operation, transfer to bypass, load off, and charger control commands are controlled
through this screen. In addition, the screen displays the current status of the UPS. Figure 6-7 shows the
System Control screen.
Use the or pushbutton to highlight the command screen desired, then press the RETURN pushbutton to
display the command menu screen.
Use the or pushbutton to highlight the command desired.
Table 6-4 describes the control functions and provides instructions to access and use the command menu
screens.
Table 6-5 lists the typical System Status Screen Messages that are displayed during UPS operation.
For detailed information about using the System Controls, see paragraph 6.3.
Status:
Status:Status:
Status: Load
LoadLoad
Load Off
OffOff
Off
Info
InfoInfo
Info
About
AboutAbout
About
User
UserUser
User Config
ConfigConfig
Config Service
ServiceService
Service
