1. Presentation
1.2 Rear panels

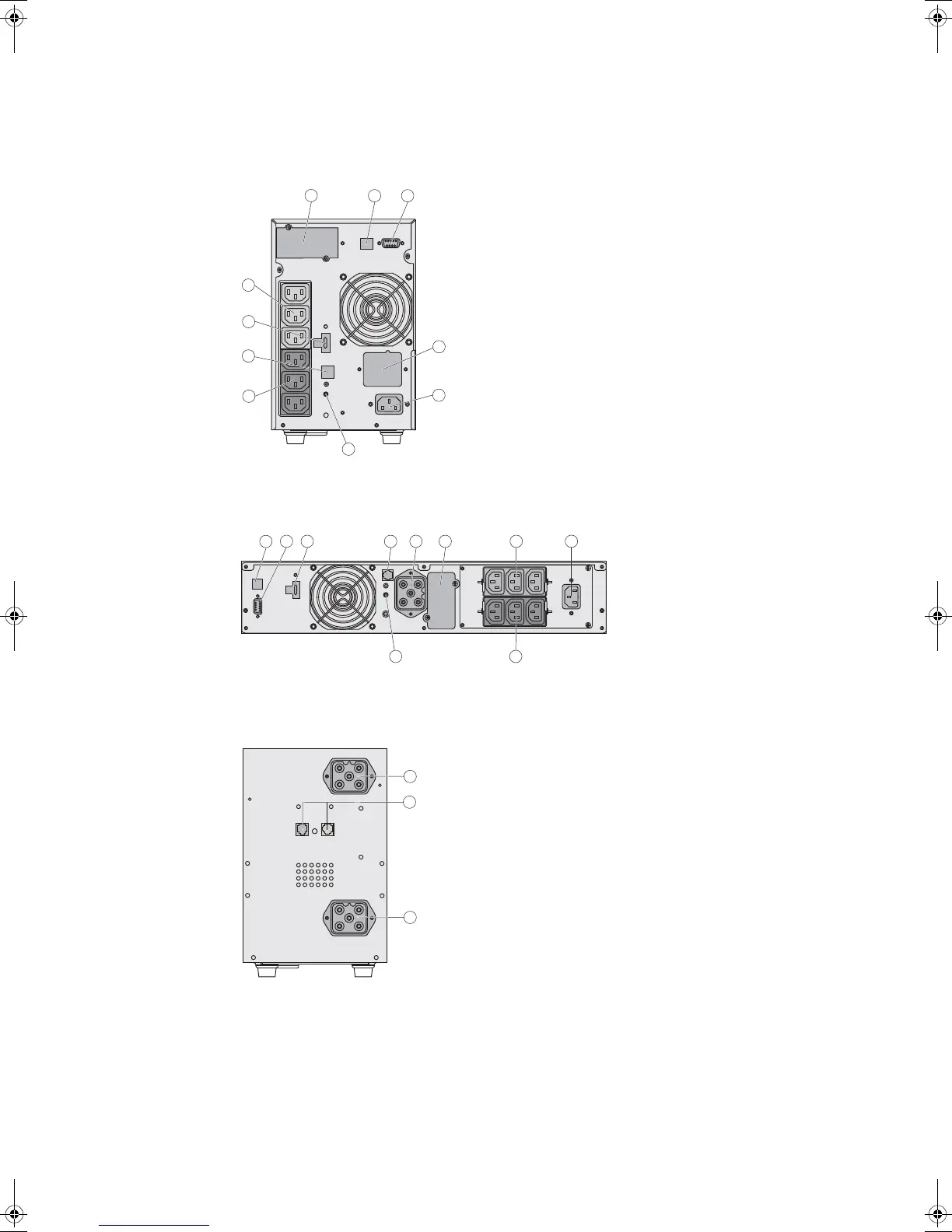

EX 700 / 1000 / 1500
EX 1000 RT / 1500 RT
EX EXB (optional battery module)
(1) USB communication port
(2) RS232 and dry contacts
communication port
(3) Connector for automatic recognition of
a battery EXB module (except on EX 700)
(4) Slot for optional communication card
(5) Connector for remote ON/OFF and RPO
(Remote Power Off) control
(6) Connector for battery EXB module
(7) Group of 3 programmable outlets for
connection of equipment
(8) Group of 3 outlets for connection of
equipment
(9) Socket for connection to AC-power
source
(10) LED (SWF) indicating distribution
system phase/neutral reversal
(11) Connectors for battery modules (to
the UPS or to the other battery modules)
(12) Connectors for automatic recognition
of battery modules
4
1
2
5
3
7
8
6
9
10
4
6
3
5
2
1
8 9
7
10
12
11
11
