Eaton EX RT7 User Manual

Page 14 - 34007724EN/AD

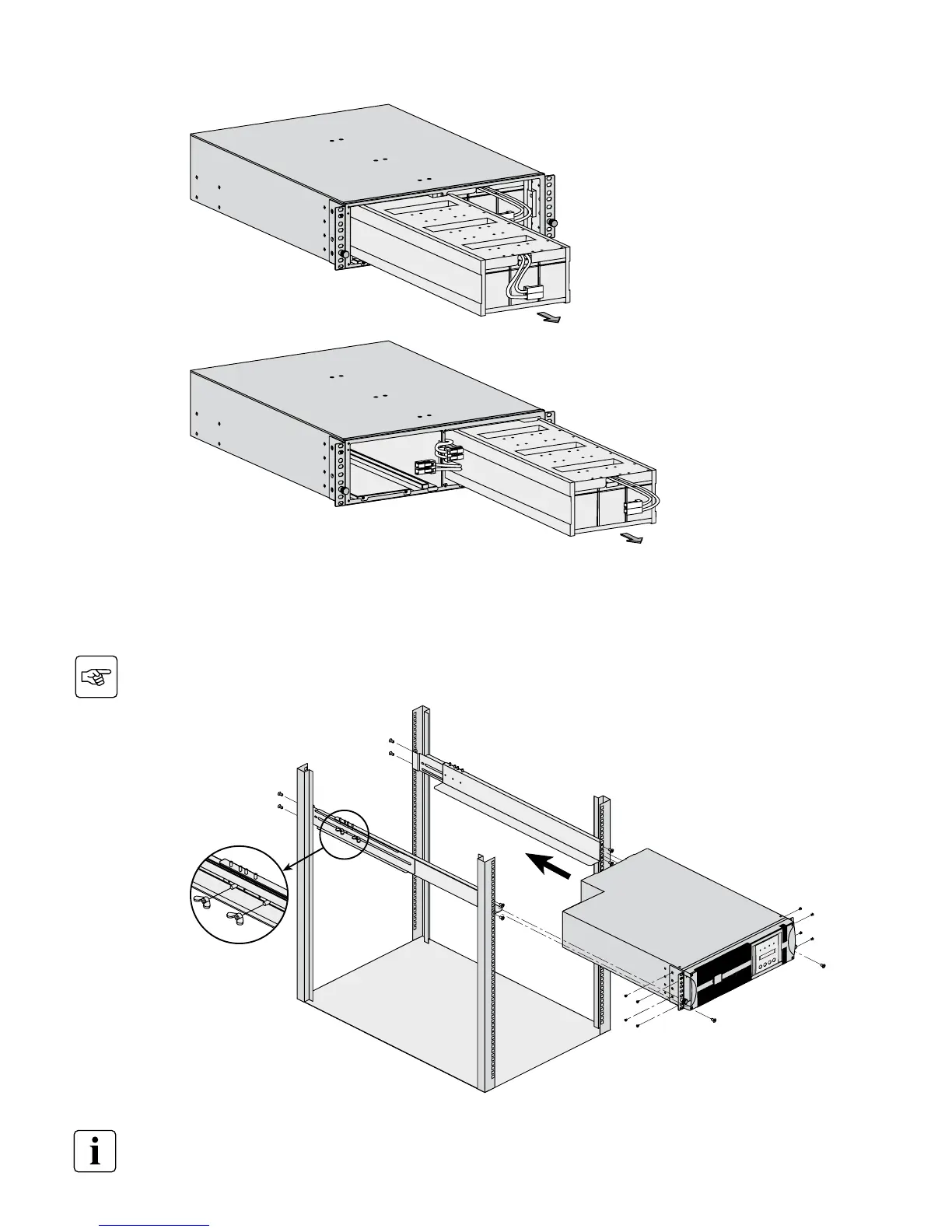

Follow steps 1 to 4 for rack mounting the UPS onto the rails.
The rails and the necessary mounting hardware are supplied by EATON.
Note for step 1: it is possible to adjust the position of both front mounting ears.
1
3
3
4
2
1
4
3
3
Power or battery module rack mounting (optional rails required, part number: 68001)
2. Installation
5
6
