3. Operation

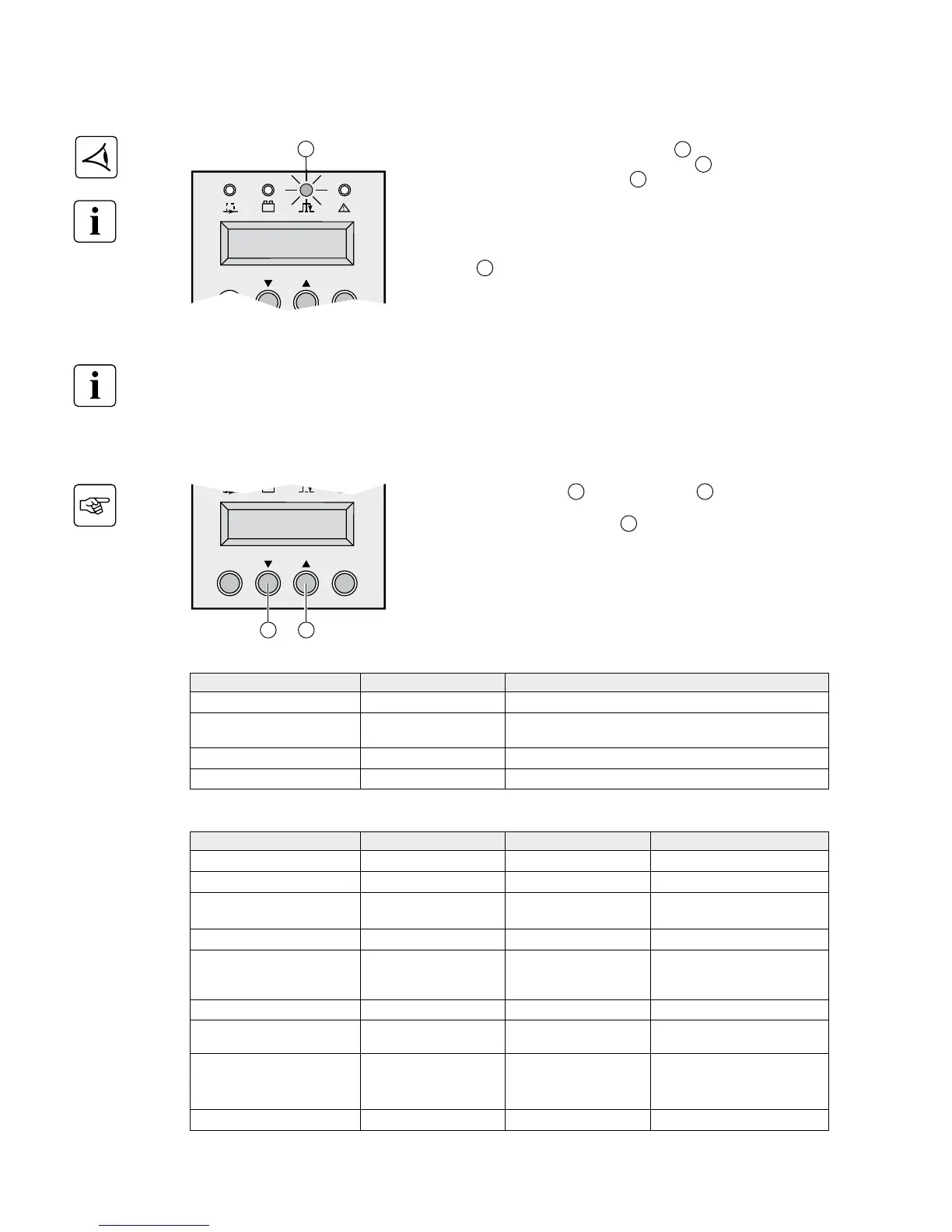

3.1 Initial start up
Check that the manual bypass switch
7
is on Normal position.
Set the normal AC source circuit-breaker
9
to the "I" position.
Set the battery circuit breaker
12
to the "I" position.
The load is powered via the bypass AC source, but not protected by
the UPS.
Batteries are recharging, an eight-hour recharge period is necessary
to get full backup time.
LED
15
is ON.
PRESS ONTO START
UPS
If specific settings are required, it is recommended to enter the UPS personnalisation mode at this stage.
It is possible to enter this mode through the front panel buttons or the Personal Solution-Pac software for
Windows included in the EATON Solution-Pac power management suite CD-ROM.
Press "scroll up" z
19
and "scroll down"
20
function buttons
together for more than 3 seconds.
Press the function button z
20
placed under the ENT word to
enter the set up mode and follow the LCD messages using the
buttons now defined as select keys.
Local settings
Personnalisation de la sortie
(*) : - Select "I/T Network" and "AC Bypass within tolerance" for computer loads.
- Select "Industrial" and "AC Bypass out of tolerance" in case of absolute need for service continuity
(with potential 10 ms break).
Accessing personalisation with front panel buttons
UPS personalisation
15
19 20
Function Factory setting Options
Language
English French, Spanish, German, Italian.
Date / time format
International format
(DD-MM-YYYY/HH:MM)
US format (MM-DD-YYYY/HH:MM AM/PM).
Date / time change
Time in France MM-DD-YYYY/HH:MM adjustable.
Audible alarm
Quick beeps Slow beeps.
Function Factory setting Options Comments
Output voltage 230 Volts AC 200/208/220/240/250
Frequency converter Disabled Enabled
Bypass AC source disabled.
Output frequency Auto ranging 50/60 Hz
User selectable under
frequency converter mode.
Eco mode Disabled Enabled
See glossary.
Hot standby Disabled Enabled
N+1 redundancy
(See section 2.5 "Hot
standby").
Operating mode Industrial I/T Network
(*)
Transfer on Bypass AC
source
If the Bypass AC source
is out of tolerances
If the Bypass AC source
is inside tolerances
(*)
Break time 10 ms 10 to 200 ms
(by steps of 10 ms)
Break time calibration during
load transfer on Bypass AC
source out of tolerances.
Overload level 102 % 50/70 %
