Eaton EX RT7 - 1 Presentation; Standard Configurations; Tower Configuration; Rack Configuration

34007724EN/AD - Page 5
1. Presentation
1.1 Standard configurations

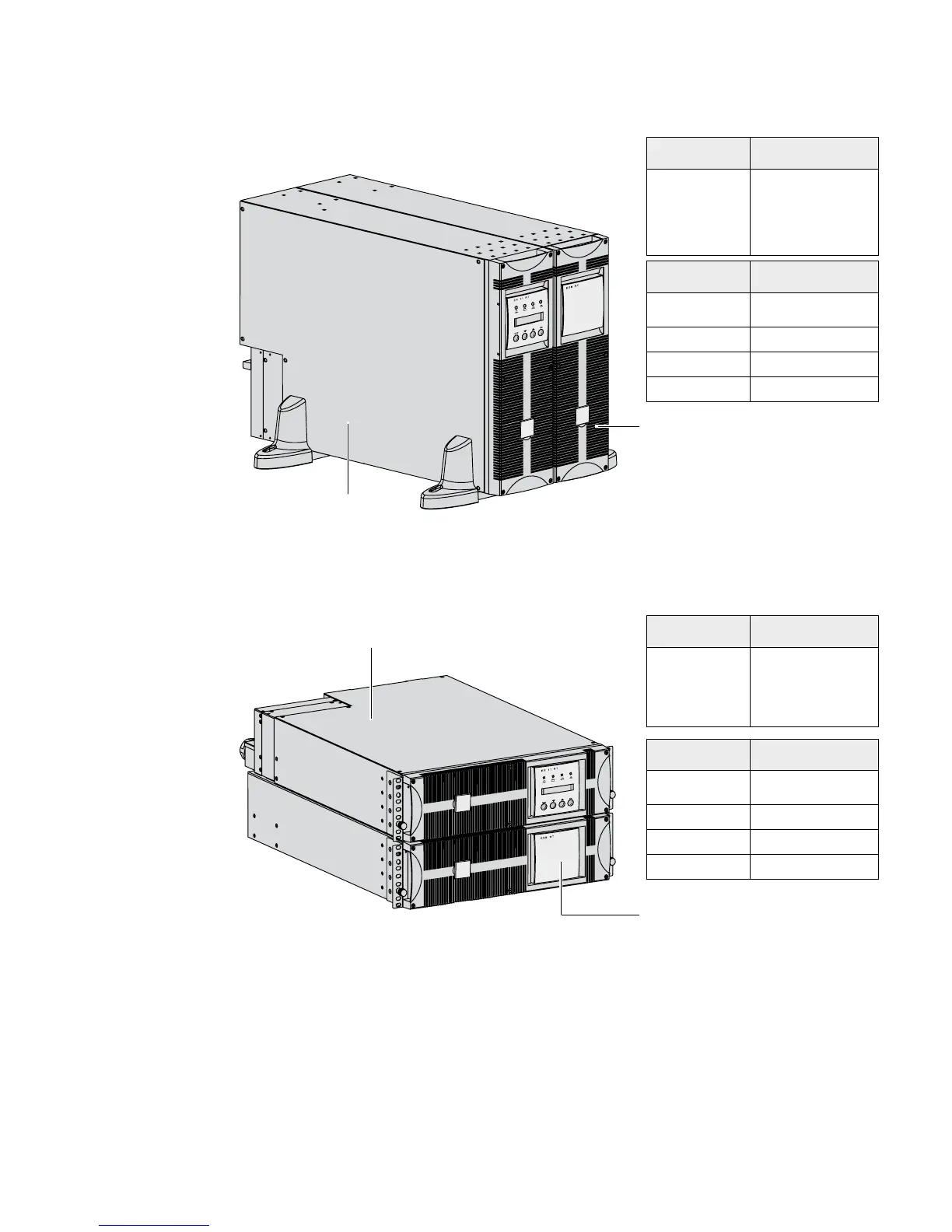

Rack configuration
Tower configuration
Battery module
(EX RT EXB 7/11)
Battery module
(EX RT EXB 7/11)
Power module
(EX RT 5/7/11)
Power module (EX RT 5/7/11)
Dimensions in mm/
inches (H x W x D)
EX RT 5
EX RT 7
EX RT 11
EX RT EXB 7
EX RT EXB 11
444 x 131 x 635
Dimensions in mm/
inches (H x W x D)
EX RT 5
EX RT 7
EX RT 11
EX RT EXB 7
EX RT EXB 11
131 (3U) x 444 x 635
Weight in kg/lbs
EX RT 5
EX RT 7
22.5
EX RT 11 27.5
EX RT EXB 7 64.5
EX RT EXB 11 68.5
Weight in kg/lbs
EX RT 5
EX RT 7
22.5
EX RT 11 27.5
EX RT EXB 7 64.5
EX RT EXB 11 68.5
