MAGNUM PRODUCT GUIDE CA013002EN—April 2017 www.eaton.com10
Family features and characteristics

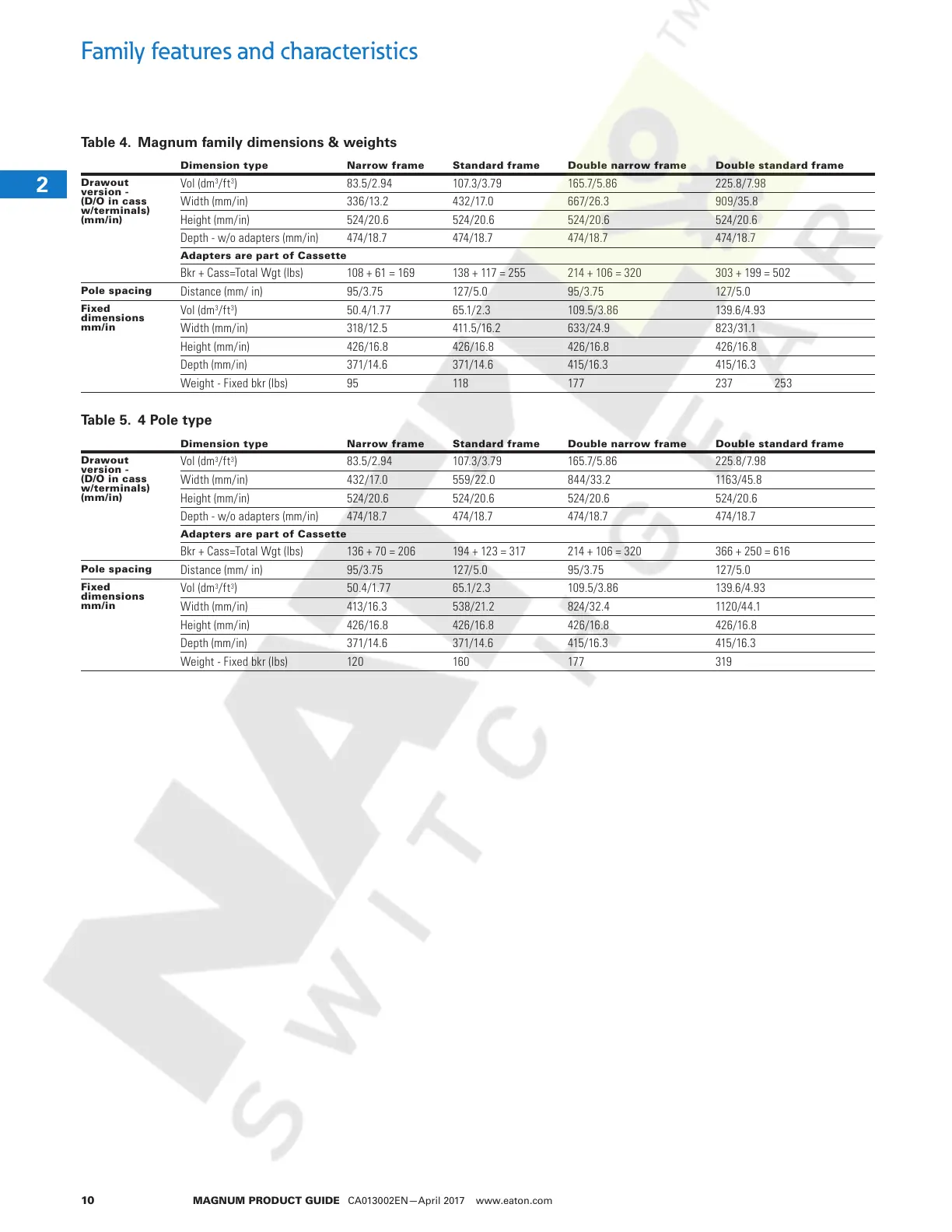

Table 4. Magnum family dimensions & weights
Dimension type Narrow frame Standard frame Double narrow frame Double standard frame
Drawout
version -
(D/O in cass
w/terminals)
(mm/in)
Vol (dm
3
/ft
3
) 83.5/2.94 10 7.3/3.79 165.7/5.86 225.8/7.98
Width (mm/in) 336/13.2 432 /17.0 667/26.3 909/35.8
Height (mm/in) 524/20.6 524/20.6 524/20.6 524/20.6
Depth - w/o adapters (mm/in) 474/18.7 474/18.7 474/18.7 474/18.7
Adapters are part of Cassette
Bkr + Cass=Total Wgt (lbs) 108 + 61 = 169 138 + 117 = 255 214 + 106 = 320 303 + 199 = 502
Pole spacing
Distance (mm/ in) 95/3.75 127/ 5.0 95/3.75 127/ 5.0
Fixed
dimensions
mm/in
Vol (dm
3
/ft
3
) 50.4/1.77 65.1/2.3 109.5/3.86 139.6/4.93
Width (mm/in) 318/12.5 411.5/16.2 633/24.9 823/31.1
Height (mm/in) 426/16.8 426/16.8 426/16.8 426/16.8
Depth (mm/in) 371/14.6 371/14.6 415/16.3 415/16.3
Weight - Fixed bkr (lbs) 95 118 177 237 253
Table 5. 4 Pole type
Dimension type Narrow frame Standard frame Double narrow frame Double standard frame
Drawout
version -
(D/O in cass
w/terminals)
(mm/in)
Vol (dm
3
/ft
3
) 83.5/2.94 10 7.3/3.79 165.7/5.86 225.8/7.98
Width (mm/in) 432 /17.0 559/22.0 844/33.2 1163/45.8
Height (mm/in) 524/20.6 524/20.6 524/20.6 524/20.6
Depth - w/o adapters (mm/in) 474/18.7 474/18.7 474/18.7 474/18.7
Adapters are part of Cassette
Bkr + Cass=Total Wgt (lbs) 136 + 70 = 206 194 + 123 = 317 214 + 106 = 320 366 + 250 = 616
Pole spacing
Distance (mm/ in) 95/3.75 127/ 5.0 95/3.75 127/ 5.0
Fixed
dimensions
mm/in
Vol (dm
3
/ft
3
) 50.4/1.77 65.1/2.3 109.5/3.86 139.6/4.93
Width (mm/in) 413/16.3 538/21.2 824/32.4 1120/4 4.1
Height (mm/in) 426/16.8 426/16.8 426/16.8 426/16.8
Depth (mm/in) 371/14.6 371/14.6 415/16.3 415/16.3
Weight - Fixed bkr (lbs) 120 160 177 319
