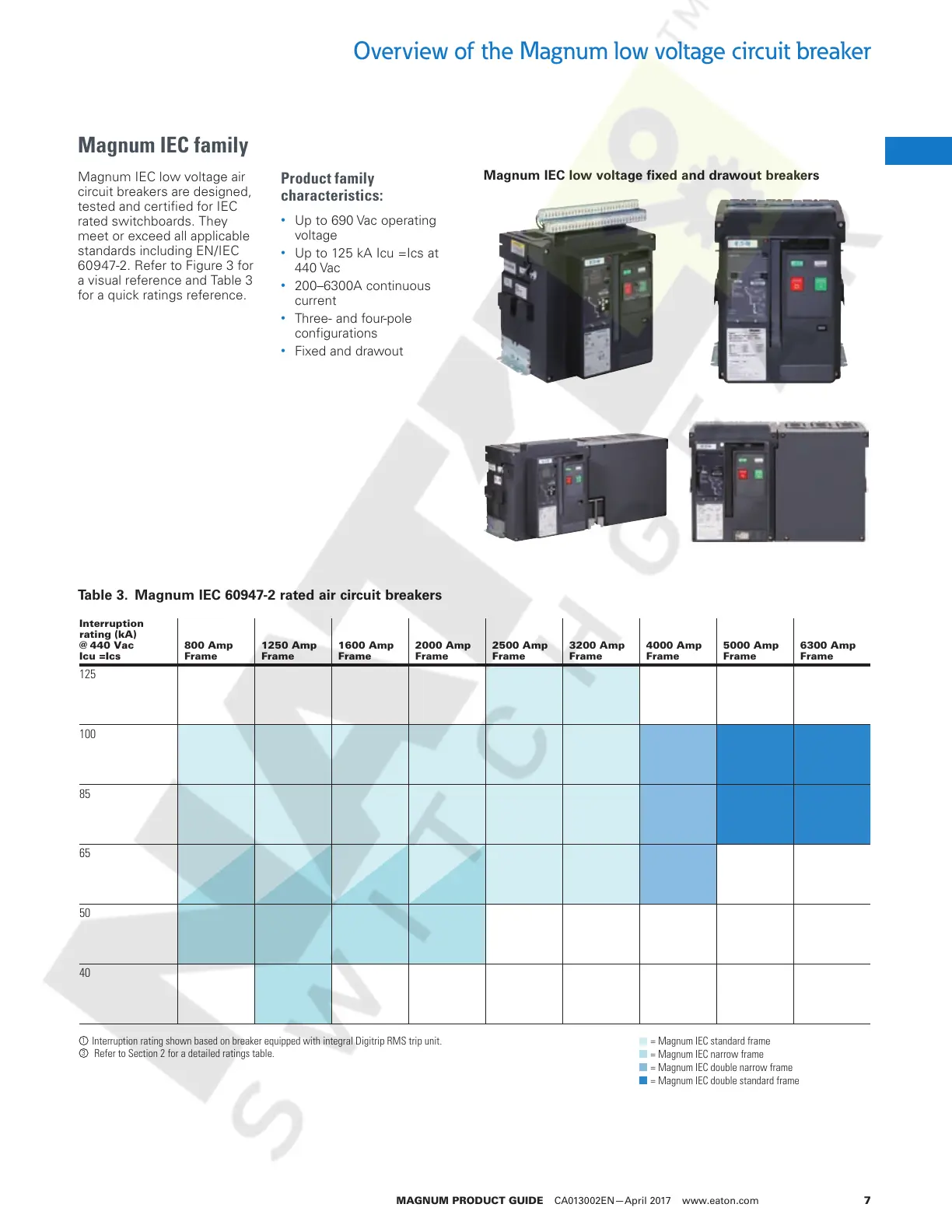

MAGNUM PRODUCT GUIDE CA013002EN—April 2017 www.eaton.com 7
Overview of the Magnum low voltage circuit breaker
Magnum IEC family
Magnum IEC low voltage air
circuit breakers are designed,
tested and certified for IEC
rated switchboards. They
meet or exceed all applicable
standards including EN/IEC
60947-2. Refer to Figure 3 for
a visual reference and Table 3
for a quick ratings reference.
Product family
characteristics:
•
Up to 690 Vac operating
voltage
•
Up to 125 kA Icu =Ics at
440 Vac
•
200–6300A continuous
current
•
Three- and four-pole
configurations
•
Fixed and drawout
Magnum IEC low voltage fixed and drawout breakers
Table 3. Magnum IEC 60947-2 rated air circuit breakers
Interruption
rating (kA)
@ 440 Vac
Icu =Ics
800 Amp
Frame
1250 Amp
Frame
1600 Amp
Frame
2000 Amp
Frame
2500 Amp
Frame
3200 Amp
Frame
4000 Amp
Frame
5000 Amp
Frame
6300 Amp
Frame
125
100
85
65
50
40
= Magnum IEC standard frame
= Magnum IEC narrow frame
= Magnum IEC double narrow frame
= Magnum IEC double standard frame
Interruption rating shown based on breaker equipped with integral Digitrip RMS trip unit.
Refer to Section 2 for a detailed ratings table.
1
3
Courtesy of NationalSwitchgear.com
