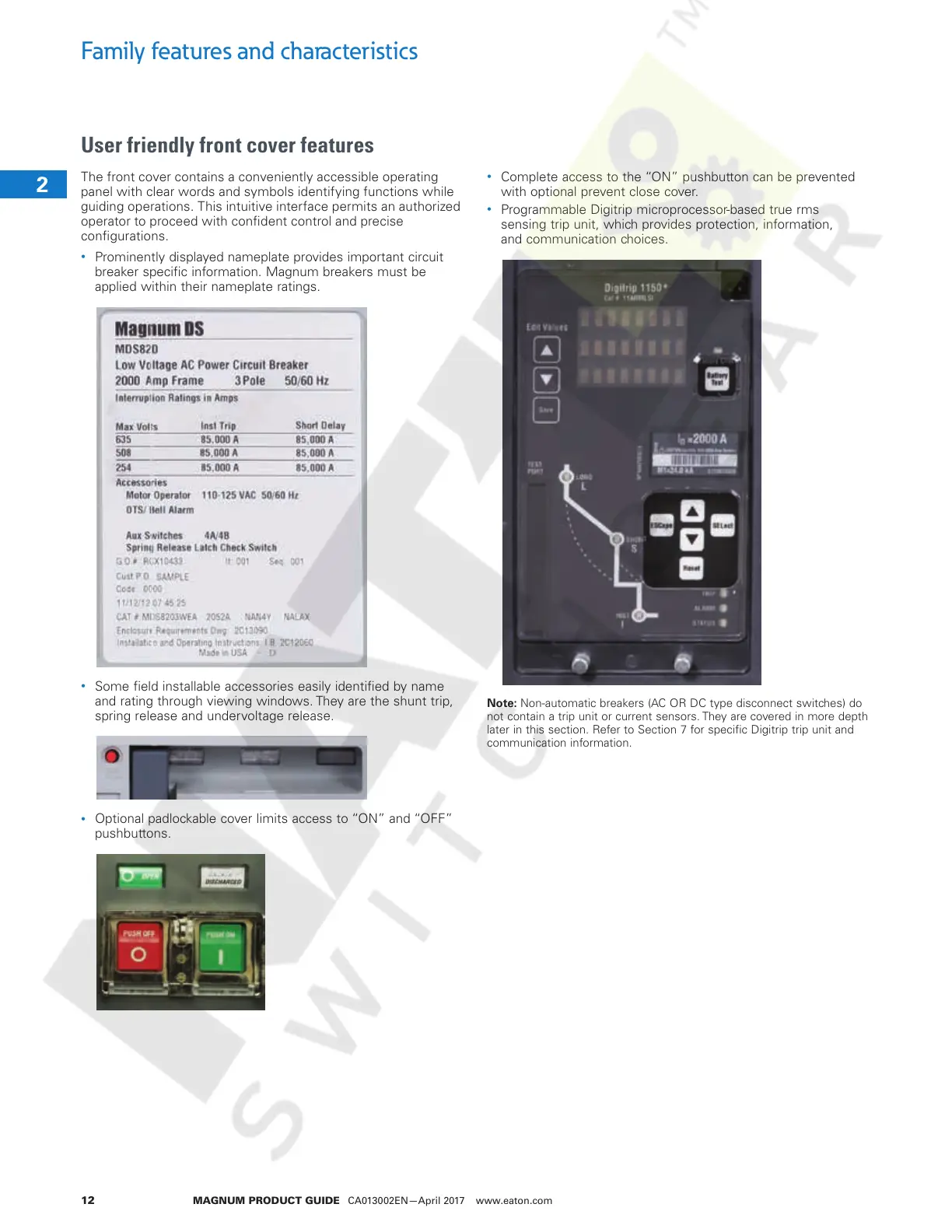

MAGNUM PRODUCT GUIDE CA013002EN—April 2017 www.eaton.com12
Family features and characteristics
User friendly front cover features
The front cover contains a conveniently accessible operating
panel with clear words and symbols identifying functions while
guiding operations. This intuitive interface permits an authorized
operator to proceed with confident control and precise
configurations.
•
Prominently displayed nameplate provides important circuit
breaker specific information. Magnum breakers must be
applied within their nameplate ratings.
•
Some field installable accessories easily identified by name
and rating through viewing windows. They are the shunt trip,
spring release and undervoltage release.
•
Optional padlockable cover limits access to “ON” and “OFF”
pushbuttons.
•
Complete access to the “ON” pushbutton can be prevented
with optional prevent close cover.
•
Programmable Digitrip microprocessor-based true rms
sensing trip unit, which provides protection, information,
and communication choices.
ote:N Non-automatic breakers (AC OR DC type disconnect switches) do
not contain a trip unit or current sensors. They are covered in more depth
later in this section. Refer to Section 7 for specific Digitrip trip unit and
communication information.
