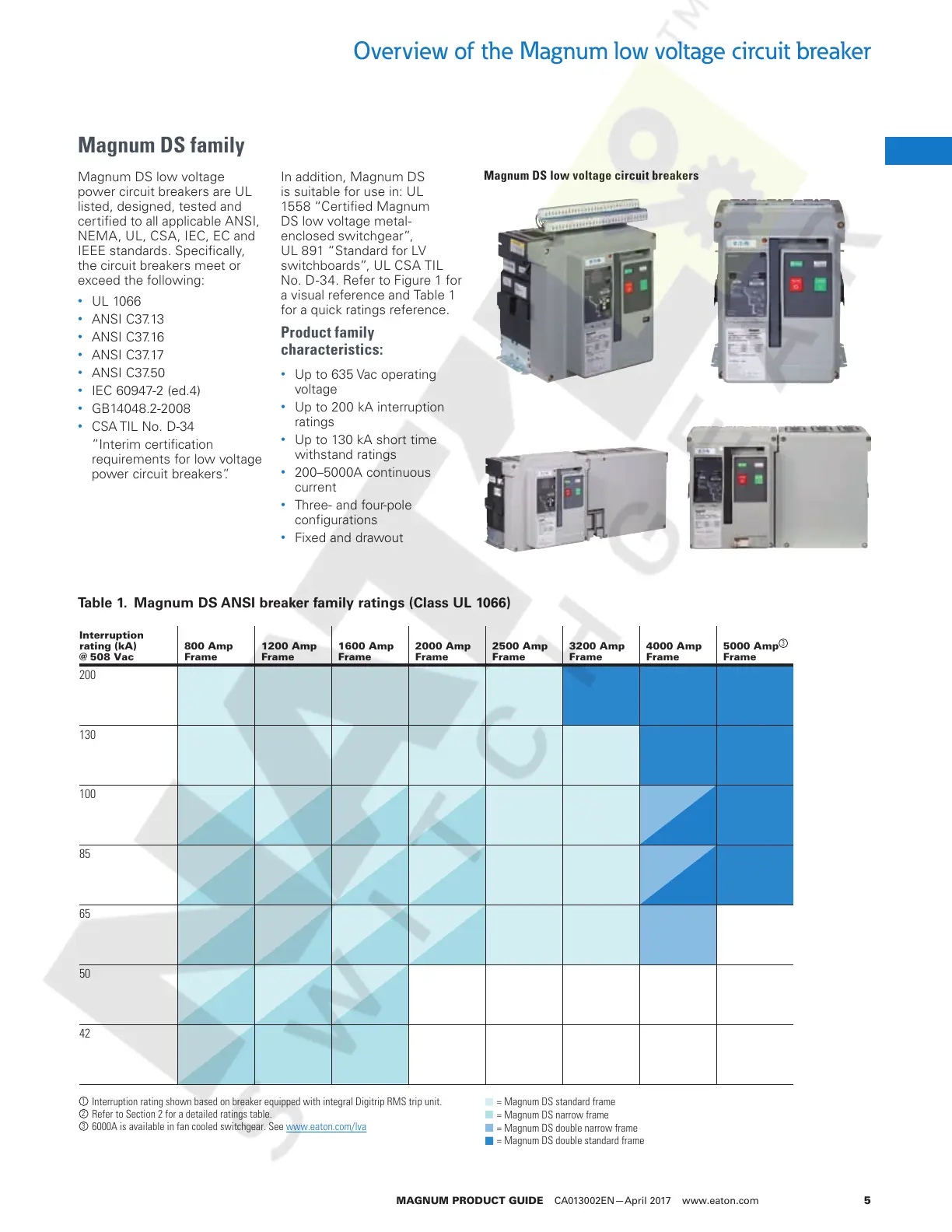

MAGNUM PRODUCT GUIDE CA013002EN—April 2017 www.eaton.com 5
Overview of the Magnum low voltage circuit breaker
Magnum DS family
Magnum DS low voltage
power circuit breakers are UL
listed, designed, tested and
certified to all applicable ANSI,
NEMA, UL, CSA, IEC, EC and
IEEE standards. Specifically,
the circuit breakers meet or
exceed the following:
•
UL 1066
•
ANSI C37.13
•
ANSI C37.16
•
ANSI C37.17
•
ANSI C37.50
•
IEC 60947-2 (ed.4)
•
GB14048.2-2008
•
CSA TIL No. D-34
”Interim certification
requirements for low voltage
power circuit breakers”.
In addition, Magnum DS
is suitable for use in: UL
1558 “Certified Magnum
DS low voltage metal-
enclosed switchgear”,
UL 891 “Standard for LV
switchboards”, UL CSA TIL
No. D-34. Refer to Figure 1 for
a visual reference and Table 1
for a quick ratings reference.
Product family
characteristics:
•
Up to 635 Vac operating
voltage
•
Up to 200 kA interruption
ratings
•
Up to 130 kA short time
withstand ratings
•
200–5000A continuous
current
•
Three- and four-pole
configurations
•
Fixed and drawout
Table 1. Magnum DS ANSI breaker family ratings (Class UL 1066)
Interruption
rating (kA)
@ 508 Vac
800 Amp
Frame
1200 Amp
Frame
1600 Amp
Frame
2000 Amp
Frame
2500 Amp
Frame
3200 Amp
Frame
4000 Amp
Frame
5000 Amp
Frame
200
130
100
85
65
50
42
= Magnum DS standard frame
= Magnum DS narrow frame
= Magnum DS double narrow frame
= Magnum DS double standard frame
Interruption rating shown based on breaker equipped with integral Digitrip RMS trip unit.
Refer to Section 2 for a detailed ratings table.
1
2
6000A is available in fan cooled switchgear. See www.eaton.com/lva
3
3
Magnum DS low voltage circuit breakers
Courtesy of NationalSwitchgear.com
