86-81710-00ES A03 - Page 20
5.2 Sustitución del módulo de la batería
Recomendaciones de seguridad
La batería puede producir la electrocución y alta tensión de cortocircuito. Se deben seguir las siguientes precauciones
de seguridad antes de hacer servicios a los componentes de la batería:
w Quítese el reloj, anillos, brazaletes y cualquier otro objeto metálico de las manos y brazos,
w Use herramientas con las manijas aisladas.

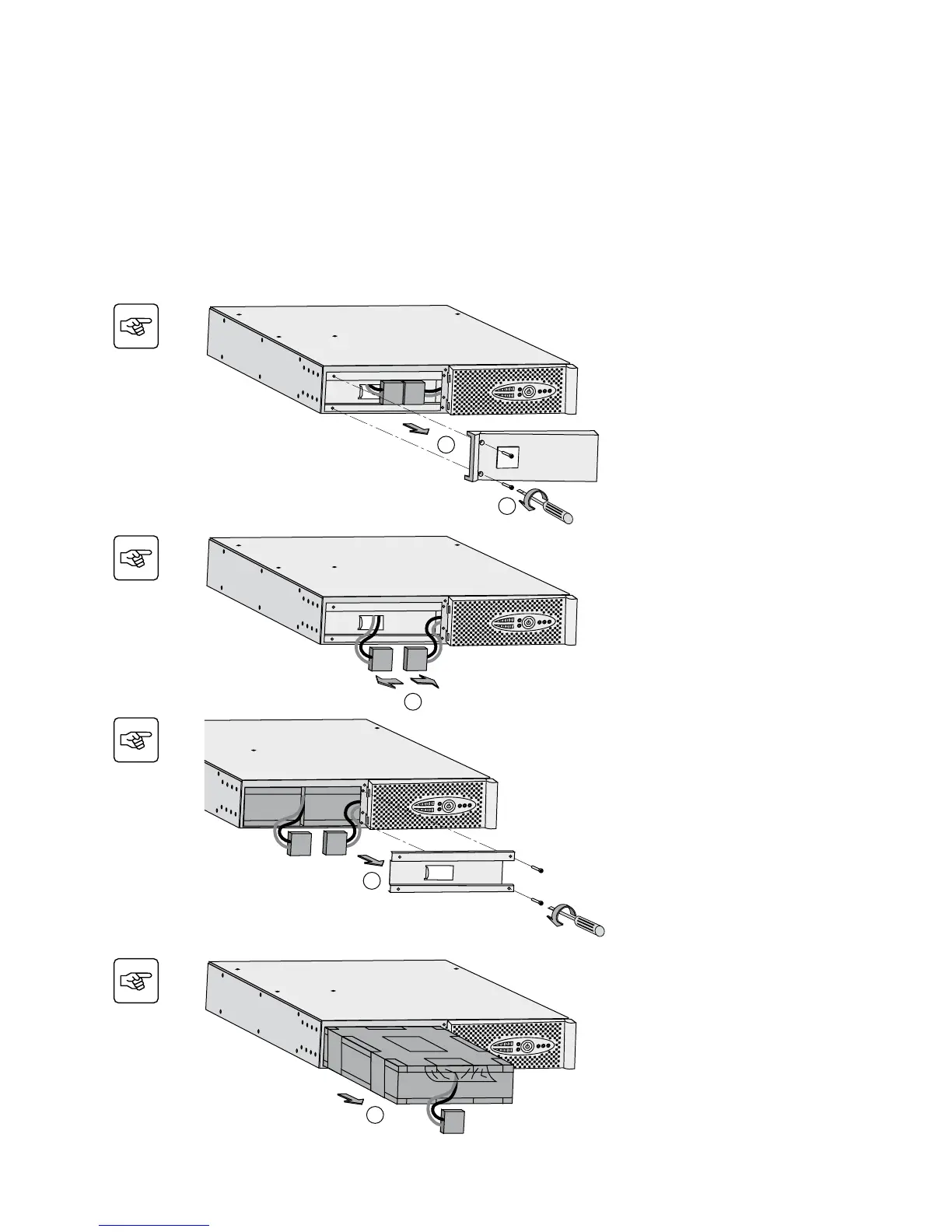

Extracción del módulo de batería
D
C
E
A
B
5. Mantenimiento
C. Disconnect the battery block by separating
the two connectors (never pull on the
wires).
A. Unscrew the left-hand side of the front panel
(two screws).
B. Remove the part
E. Pull the plastic tab to remove the battery
block and replace it.
D. Remove the metal protection cover in front of
the battery (two screws).
