32
PTO Interface
PTO Interface
UltraShift ASW Auto Neutral Feature
Electrical Interface Requirements
All devices mounted on the vehicle that require Auto Neutral function from the Fuller
®
UltraShift ASW transmission must provide
an electrical interface with the transmission. A switch must be used to activate the Neutral mode of the transmission. This feature

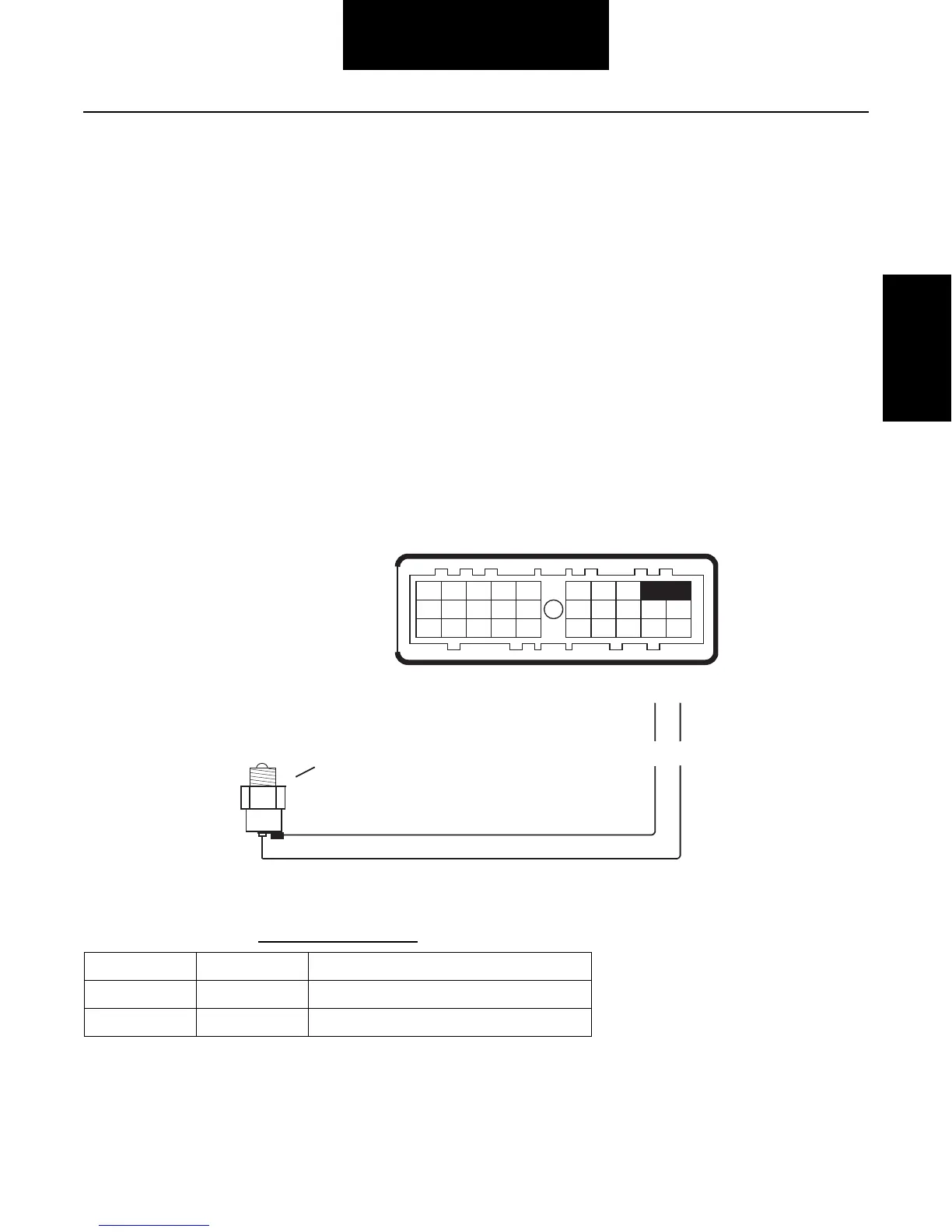

uses pin A1 and B1 of the 30-way push button connector. See the figure below for electrical interface diagram.
Features
When engaged (switch closed), this feature causes the transmission to neutralize when the vehicle is stopped (i.e. stationary PTO
operation) and a transmission gear engagement cannot be selected. When disengaged (switch opened), normal transmission
gear engagement can be selected.
The Fuller AutoShift ASW transmission
must have an input signal from the device to activate this feature.
The input signal wires must be isolated from other related circuits.
Switch
A1
A2
A3B3
C1
C3
D1
D2
D3
E1
E2
E3
F1
F2
F3
G1
G2
G3
H1
H2
H3
B2C2
J3K3
J1
J2
K1
K2
FRONT VIEW
Push Button Control (30-Way Connector)
PACKARD
Connector 12048455
Terminal 12103881
Plug 12034413
B1
A1B1
Note: The input signal wires for the Auto Neutral Device must be isolated from other related circuits.
Interconnection Table
FROM TO Description
A1 Switch Auto Neutral Input
Switch B1 Auto Neutral Return
