Inertia Brake
Note: Before installing I-Brake Harness, apply contact lubricant to terminals
How to Apply Contact Lubrication to Eaton Transmission Harnesses
Please use the enclosed package of electrical contact lubrication when installing or replacing the I-Brake harness. Lubrication is
provided to ease assembly and to restore electrical connector protection. Apply material to harness connectors and mate
immediately to prevent contamination
with grime and dirt.

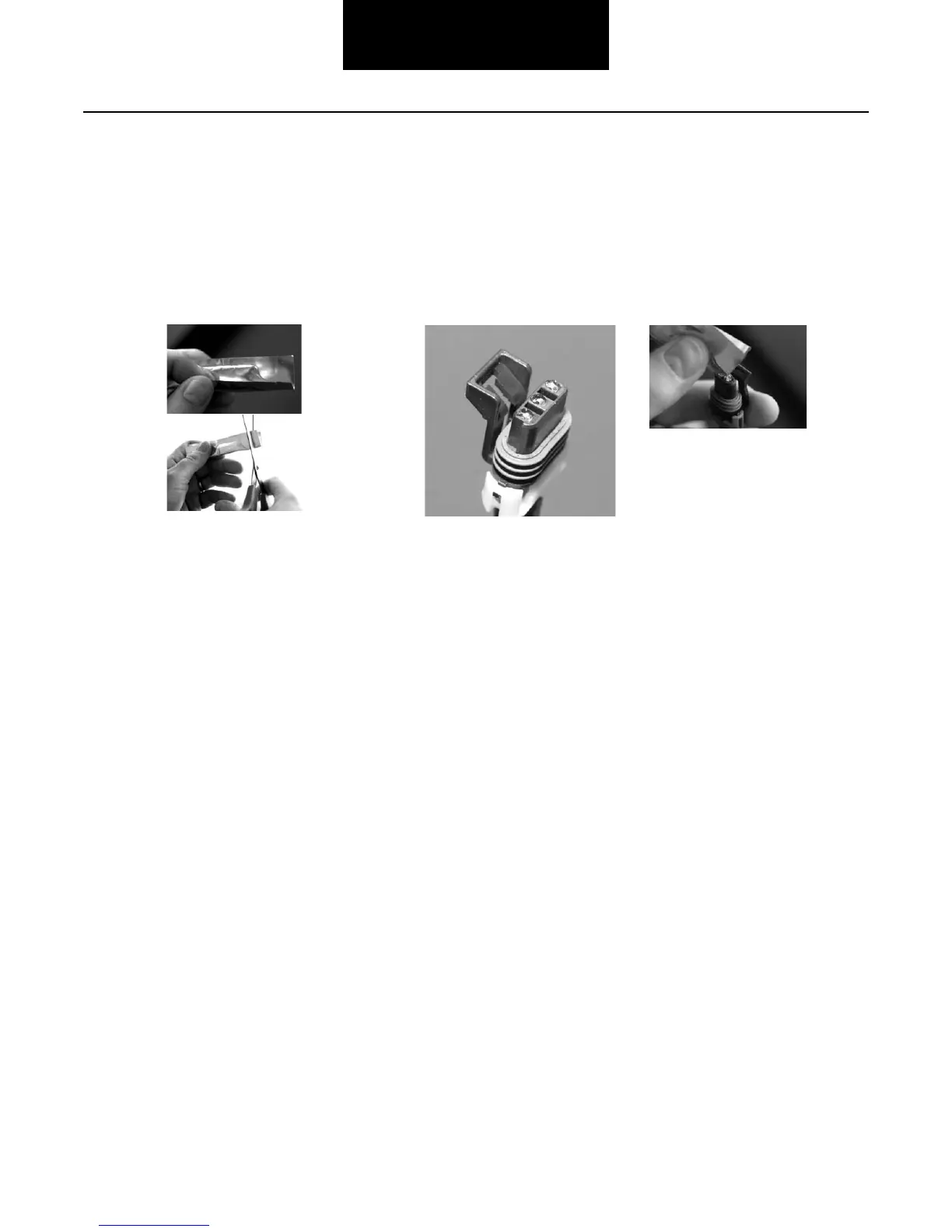

Snip off tip of foil
at cut-line.
Dispense with package
folded as shown for ease of
flow and control.
Use just enough material to
cover end of terminal.
Fold
package
length-wise.
Before starting, inspect mating connector pins on transmission for damage or dirt. If pins need cleaning, use clean shop air or an
approved spray cleaner specifically for electrical contacts. To ease dispensing, fold and cut package as shown above.
Dispensing a small amount of lubricant onto each terminal of harness. Th
e amount should be just enough to cover the end of the
contact – about the size of a BB. Use care to prevent damage to the terminal. Each package contains enough material for one har-
ness installation. Apply to all female terminals on all connectors. Mate
connector immediately after applying lubrication.
Use only Eaton lubricant part number 5564527 (Nye Lubricants
NYOGEL 760G - For MSDS safety or other information see
www.nyelubricants.com.
