EB TECHNOLOGY START-S1XL v2 User Manual

• 230Vac mono-phase control unit.
• For rolling shutters and awainings.
• 433.92 Mhz radio receiver included.
• Standard or “Man present“ or Anemometer or centralized Open/Close
START-S1XL v2
START-S1XLv2_170414_VXX09_GB www.ebtechnology.it www.nologo.info
Operating Guide

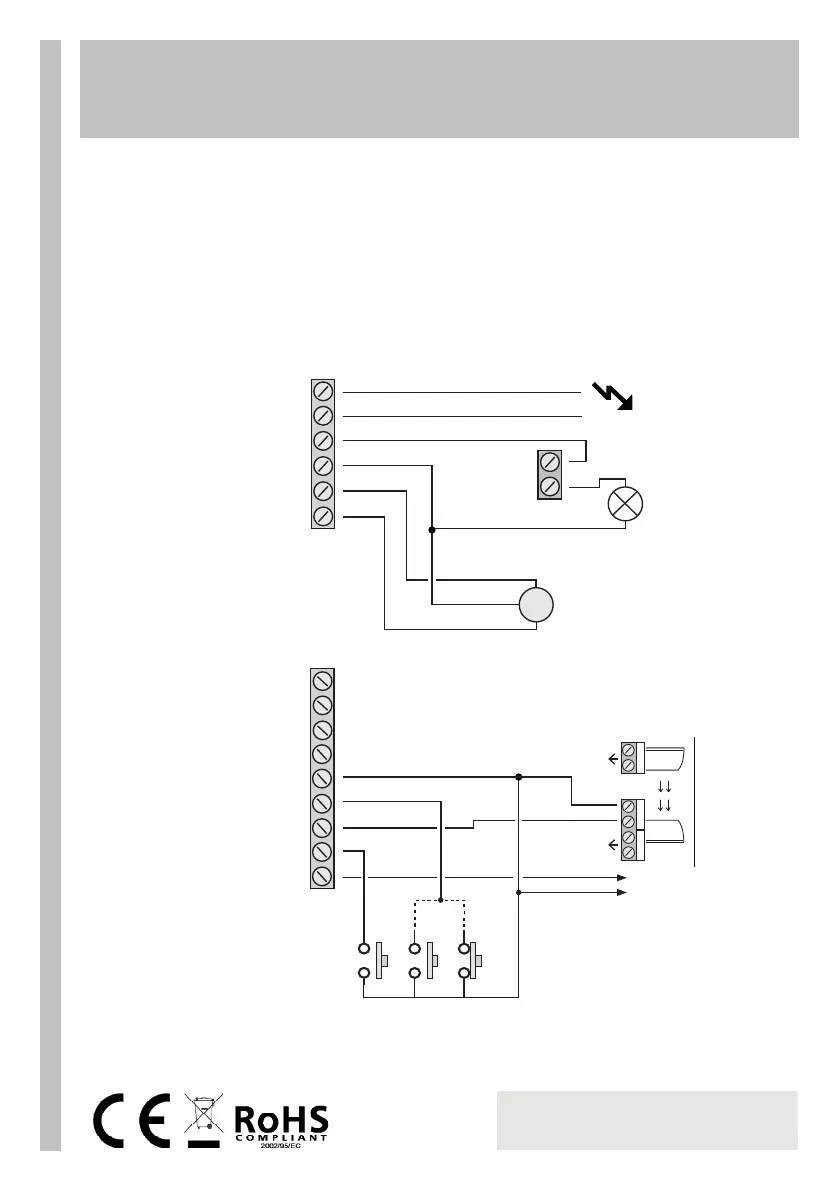

LAMP
Common
MOT OPEN
-6-
-5-
-4-
-3-
-2-
-1-
230 Vac Input
230 Vac Input
MOT CLOSE
230 Vac
230 Vac lamp
CONTACT
CONTACT
-17-
-16-
M
CL
OP
COM
MOTOR
-15-
-14-
-13-
-12-
-11-
-10-
-9-
-8-
-7-
Output 12 Vac (J1-AC)
- 12 Vdc (J1-DC) Comm Services
CLOSE / STOP
PHOTO / ANEMOMETER
OPEN / START
BUS-DATA
- Antenna / Comm Services
+ Antenna
TX
RX
Alim.
Active
Photo-beams
when closing
N.A.
DIP 3B
OFF
DIP 3B
ON
N.A.
N.C.
BUS-DATA
*
POWER SUPPLY TO ACCESSORIES:
[9-10] 12 Vac (J1 - ac)
[10-11] 12 Vdc (J1 - dc)
Out 12Vac (J1-AC) / +12Vdc (J1-DC)
OUT
Alim.
*
*

EB TECHNOLOGY START-S1XL v2 Specifications

General

Brand	EB TECHNOLOGY
Model	START-S1XL v2
Category	Control Unit
Language	English
