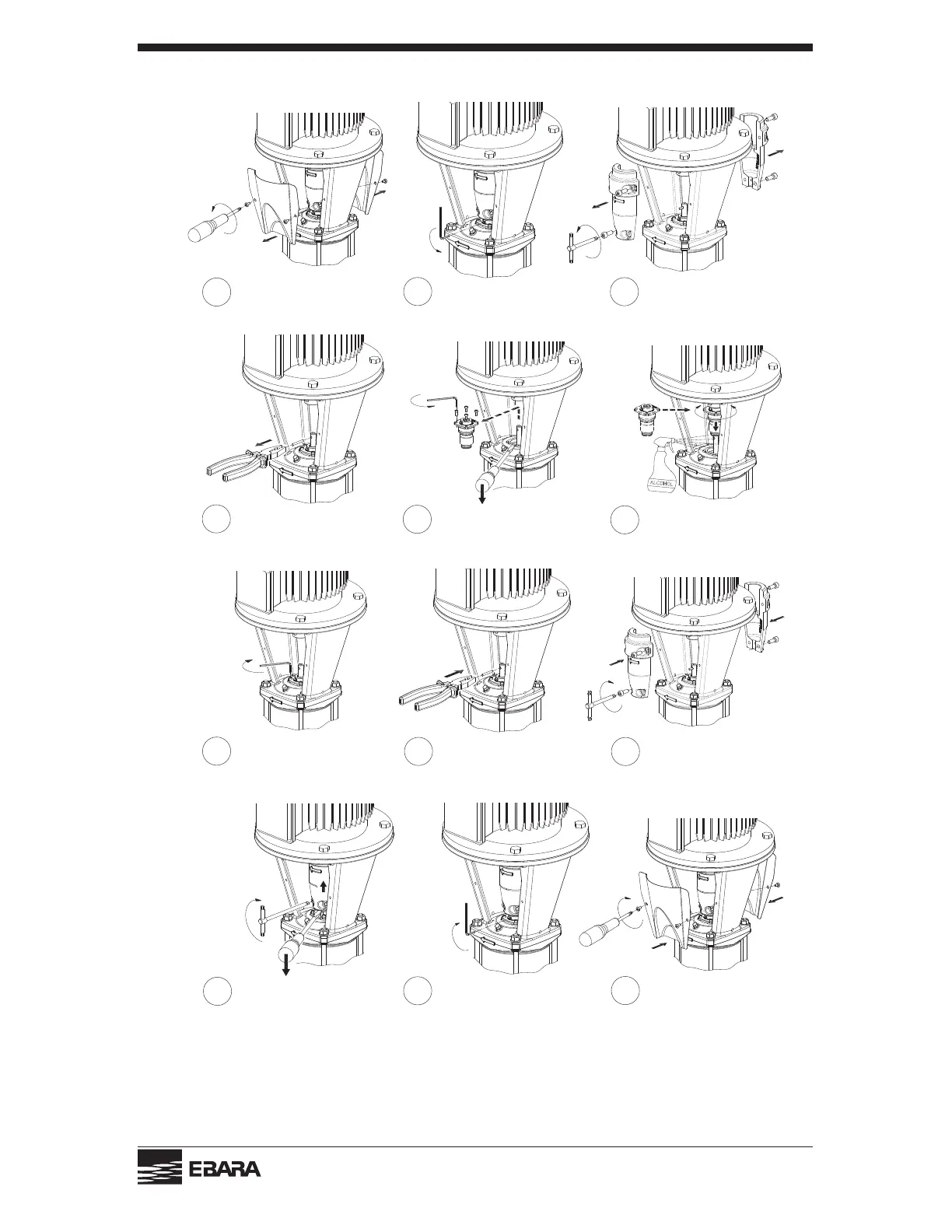

REPLACEMENT OF SHAFT SEAL EVMSU 1 - 3 - 5 - 10 - 15 - 20 SPACER COUPLING [-C-]
2
3
4
1
5
6
7
8
9
10
M8 = 18 Nm (13 lb-ft)
M10 = 50 Nm (37 lb-ft)
11
3 - 5 Nm
2.2 - 3.7 lb-ft
12
