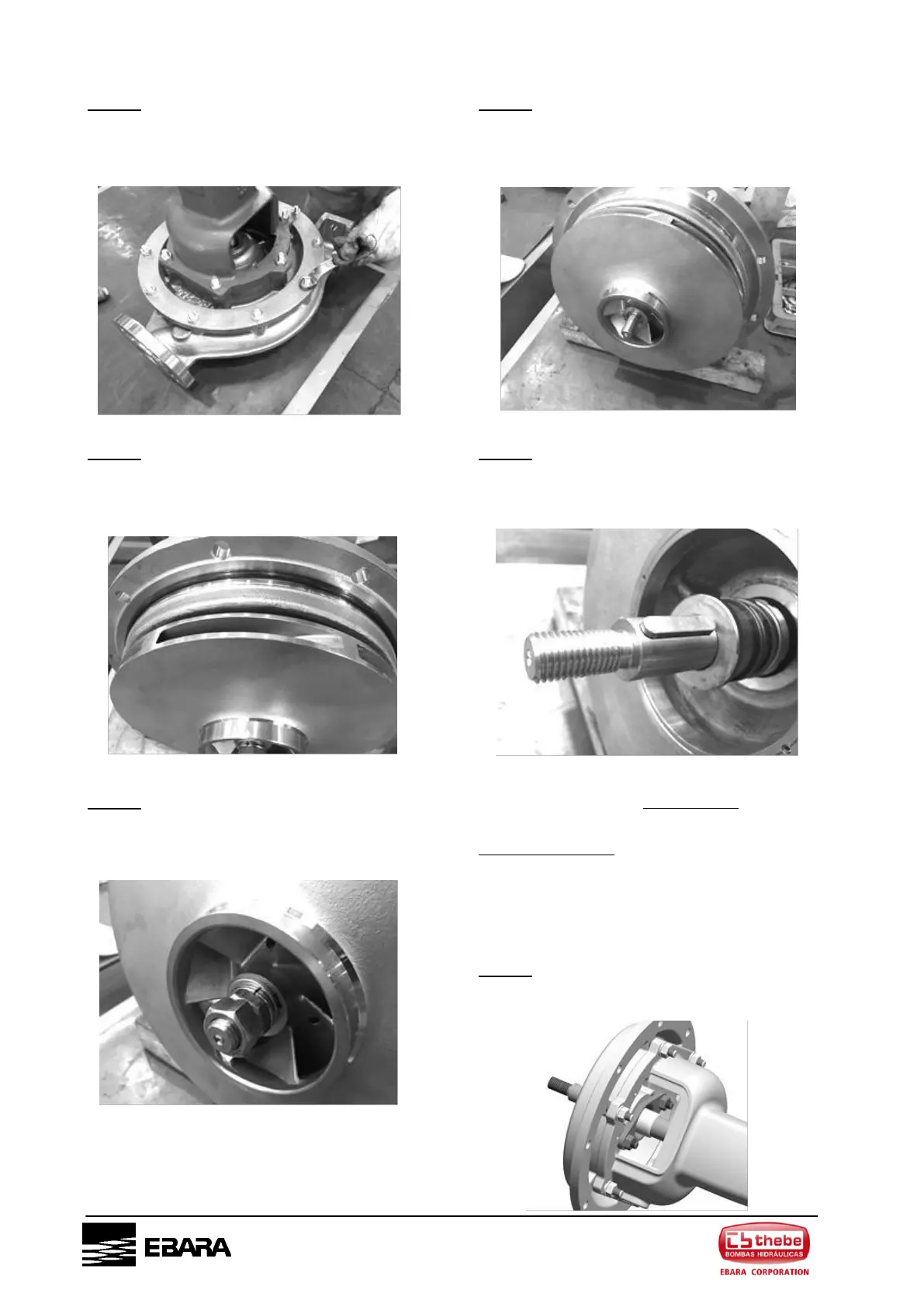

STEP.4
Remove the Casing Cover (27) from Casing
(35).
STEP.5
Remove the O-Ring (28) from the Casing Cover
(27).
STEP.6
Remove the Washer (30) and the Hex Nut
(31/32) for impeller from the Shaft (2).
STEP.7
Remove the Impeller (29) from the Shaft (2)
through the key.
STEP.8
Remove the Key (3) of impeller side from the
Shaft (2).
*Refer to the following STEP.9 to 13 for Gland
Packing specification and refer to the following
STEP.14 to 16 for Mechanical Seal
specifications.
[Gland Packing specification]
STEP.9
Loosen the Nuts (19).
