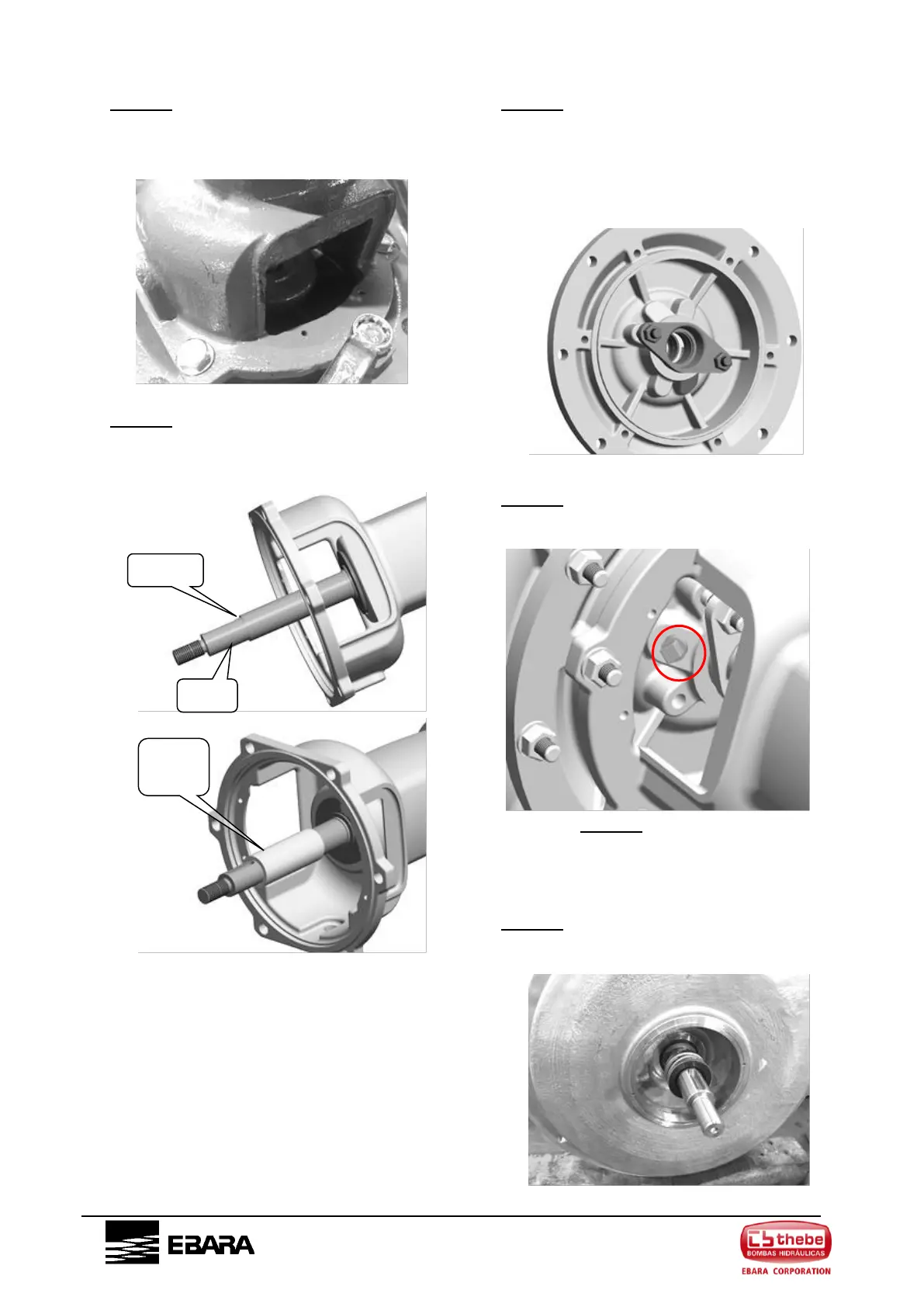

STEP.10
Remove the Casing Cover (27) from the Bearing
Casing (11).
STEP.11
Remove the Gasket (17) and Shaft Sleeve (18)
from Shaft (2).
STEP.12
Remove the Gland (21), the Gland Bolts (20) and
the Nuts. Then remove the Gland Packings (22)
and the Lantern Ring (23) from the Casing Cover
(27).
STEP.13
Remove 2 Plugs (26) from Casing Cover (27).
Proceed to STEP.17 next.
[Mechanical Seal specification]
STEP.14
Remove the Mechanical Seal from the Shaft (2).
Shaft
Sleeve
Gasket
Shaft
