- 28 -

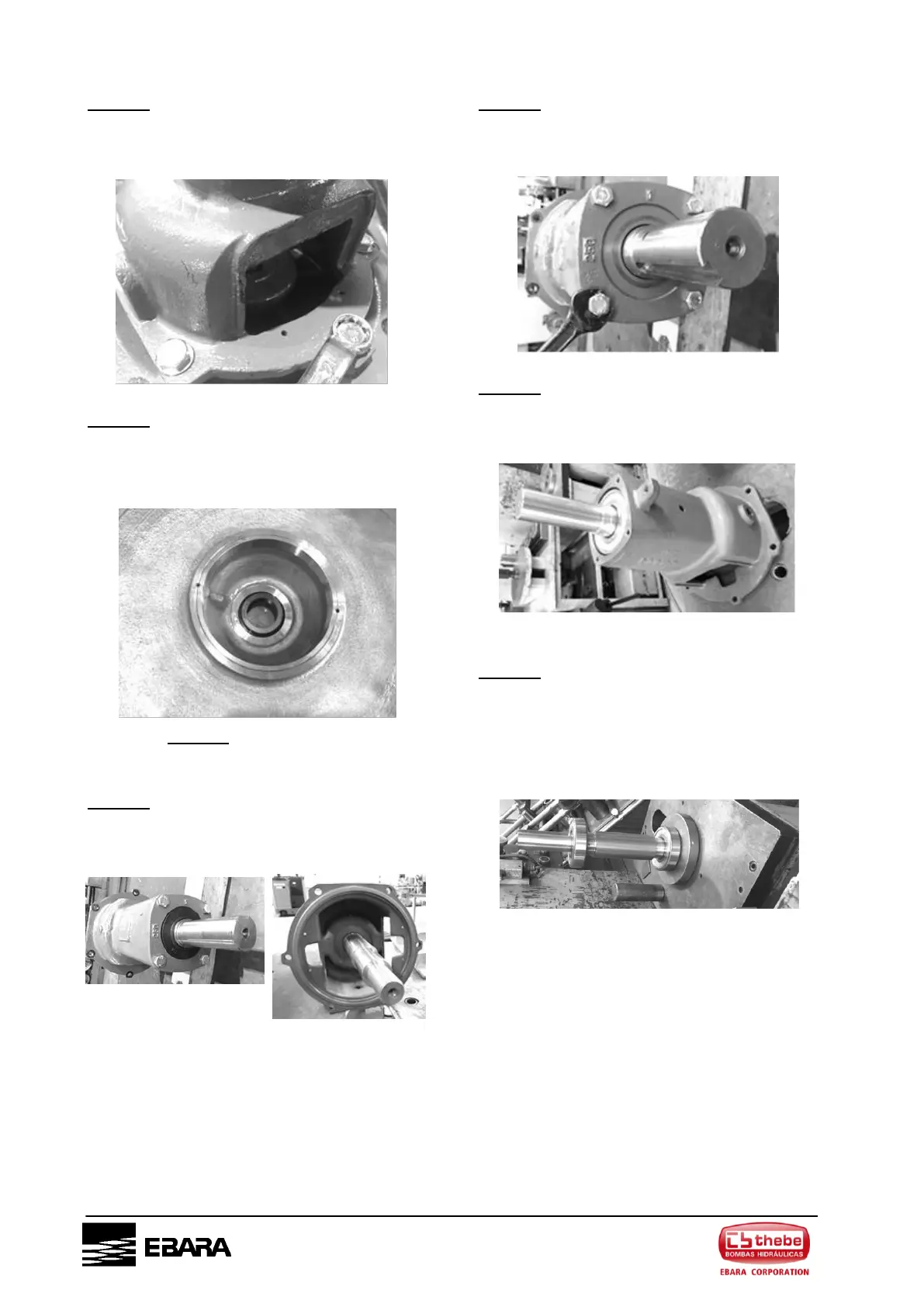

STEP.15
Romove the Casing Cover (27) from the Bearing
Casing (11).
STEP.16
Remove the Mechanical Seal from Casing Cover
(27).
Proceed to STEP.17 next.
STEP.17
Remove Deflectors (4) from Bearing Cover (6)
and Bearing Casing (11).
STEP.18
Remove the Bearing Cover (6) from the Bearing
Casing (11).
STEP.19
Remove the Shaft (2) from the Bearing Casing
(11).
STEP.20
Remove 2 Bearings (7) from the Shaft (2).
*First, remove 1 bearing from the shaft. Then,
remove another bearing from the shaft at the
other side.
