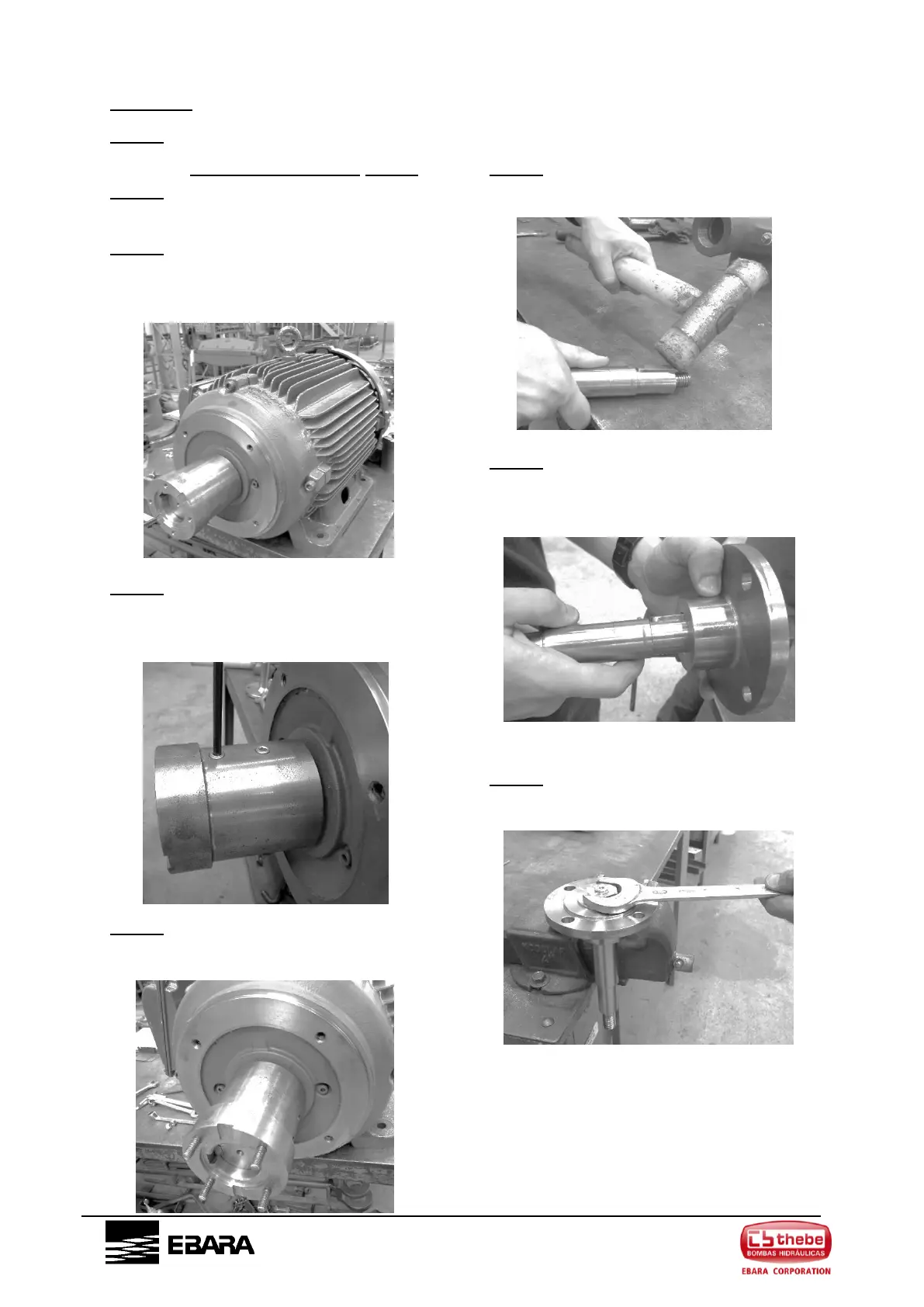

Model GSD
STEP.1
Refer to “2.Assembly Model GS(STEP.1 and
STEP.2)”
STEP.2
Heat the Motor Bushing (2) up to 100°C. Assemble
the Motor Bushing (2) to motor shaft (1).
STEP.3
After cooling, assemble set screw (3) to motor
bushing(2).
STEP.4
Assemble stud bolt(8) to motor bushing(2).
STEP.5
Assemble key(11) to motor side of shaft(5).
STEP.6
Assemble pump bushing(4) to motor side of
shaft(5).
STEP.7
Assemble nut(6) to motor side of shaft(5).
