EBR 1190 SX - Headlamp Adjustment

HEADLAMP ADJUSTMENT
To access adjusters on the SX first remove the front trim
pieces; see Figure 55.

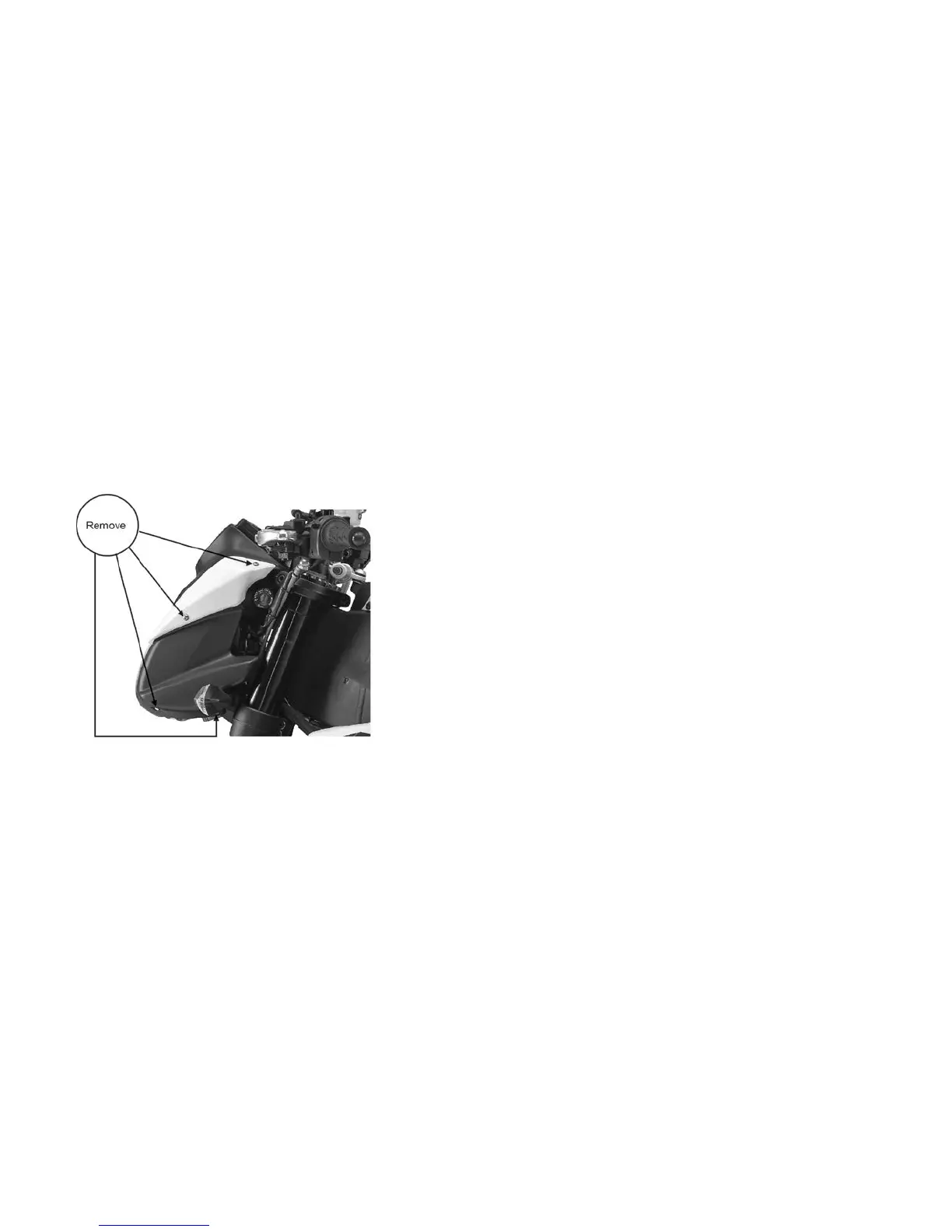

Figure 55.
Horizontal Adjustment
Horizontal adjusters are located on the left side of the bike
behind the fairing/headlamp. See figure 36.
NOTE
The top adjuster works on the low beam which is the top
lamp. The lower adjuster works on the high beam which is the
lower lamp.
• To move low beam to the right, turn upper left
adjuster clockwise.
• To move low beam to the left, turn upper left
adjuster counterclockwise.
• To move high beam to the right, turn lower left
adjuster clockwise.
• To move high beam to the left, turn lower left
adjuster counterclockwise.
