EBR 1190 SX - Passenger Seat Removal;Fuse Access

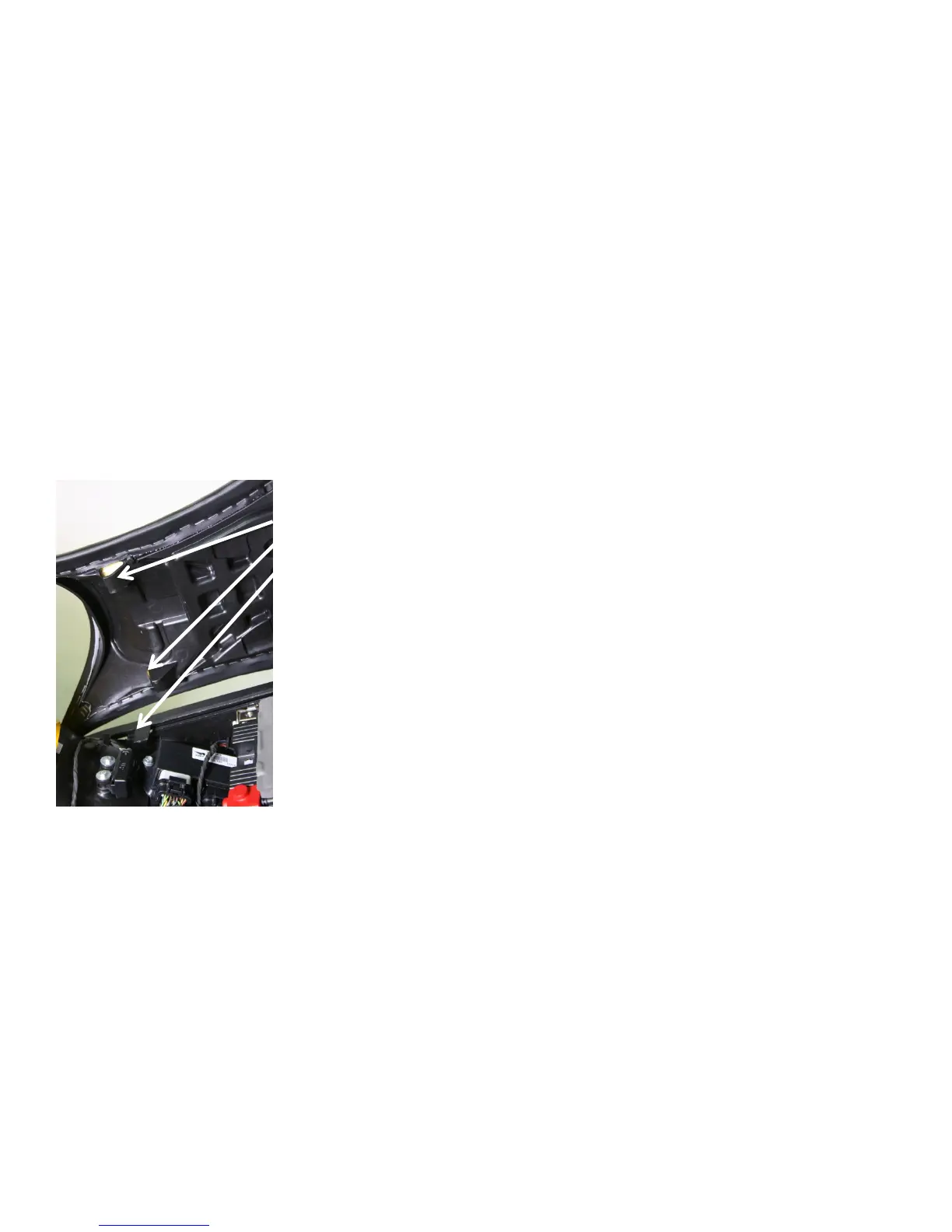

To reinstall rider seat insure that the tabs on the seat bottom
engage the tabs on the subframe. See figure 19.
Push down on seat and slide forward.
Reinstall bolt through bottom of seat pan.
Figure 19: Reinstall seat.
Passenger Seat Removal/Fuse Access
The fuses and relays are under the passenger seat.
• To remove this, insert key into the rider seat back
panel and unlock the passenger seat. See figure 20.
Tabs
