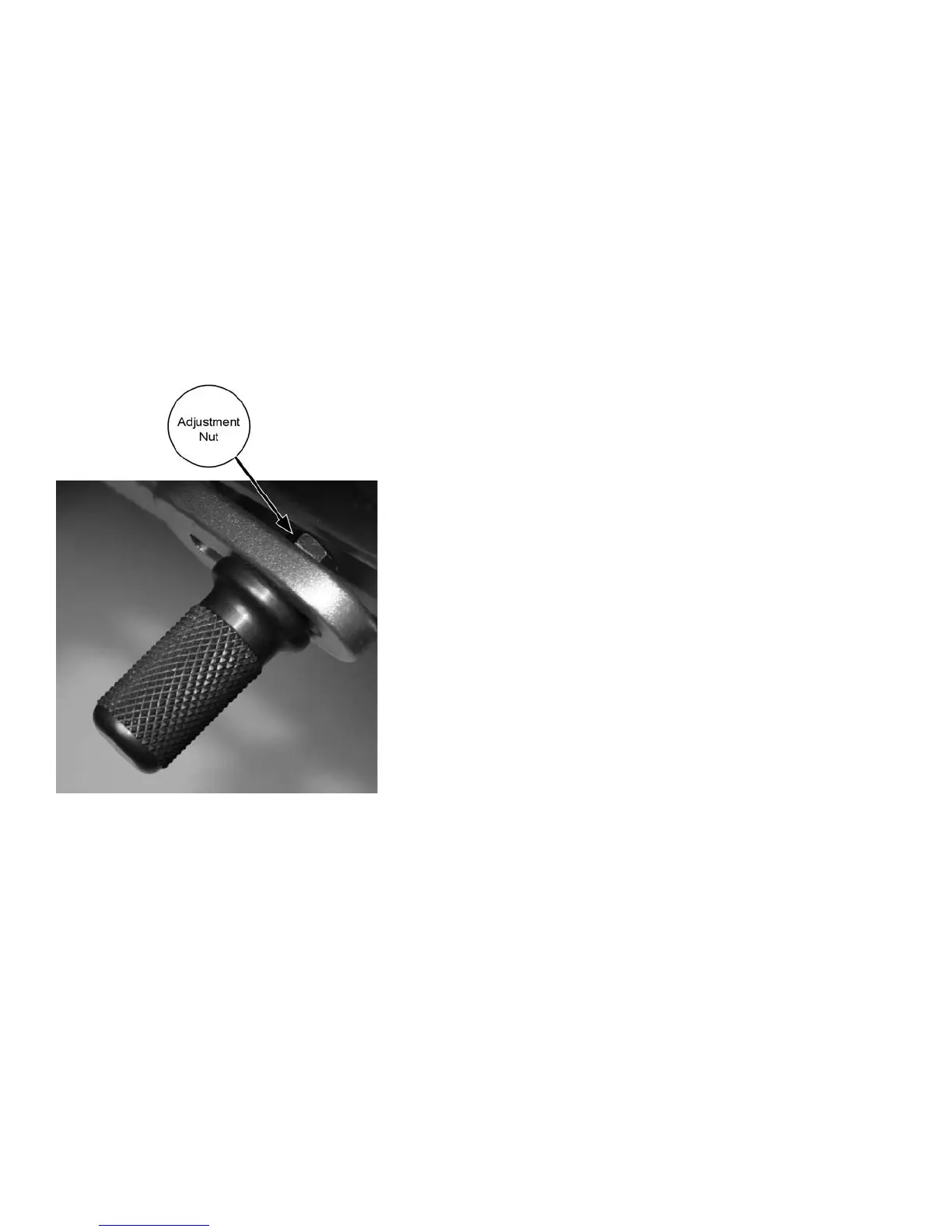

Figure 13. Toe Peg Adjustment.
ADJUSTING SHIFTER TOE PEG
The gear shift toe peg can be adjusted for rider preference.
1. See Figure 13. Loosen the fastener from the toe peg.
2. Slide toe peg to the desired position.
3. Tighten the fastener to 48-72 in-lbs (5.4-8.1 Nm).
ADJUSTING HANDLE BAR LEVERS
The clutch and brake hand lever may be adjusted to the
rider's preference.
See Figure 14. Turn knob to desired position.
NOTE
It is easier to adjust the dial if you gently push the lever
outward to reduce pressure on the adjuster.
After adjusting hand lever position, rotate steering to full left
and full right positions to make certain the levers do not
contact the fairing.
51
