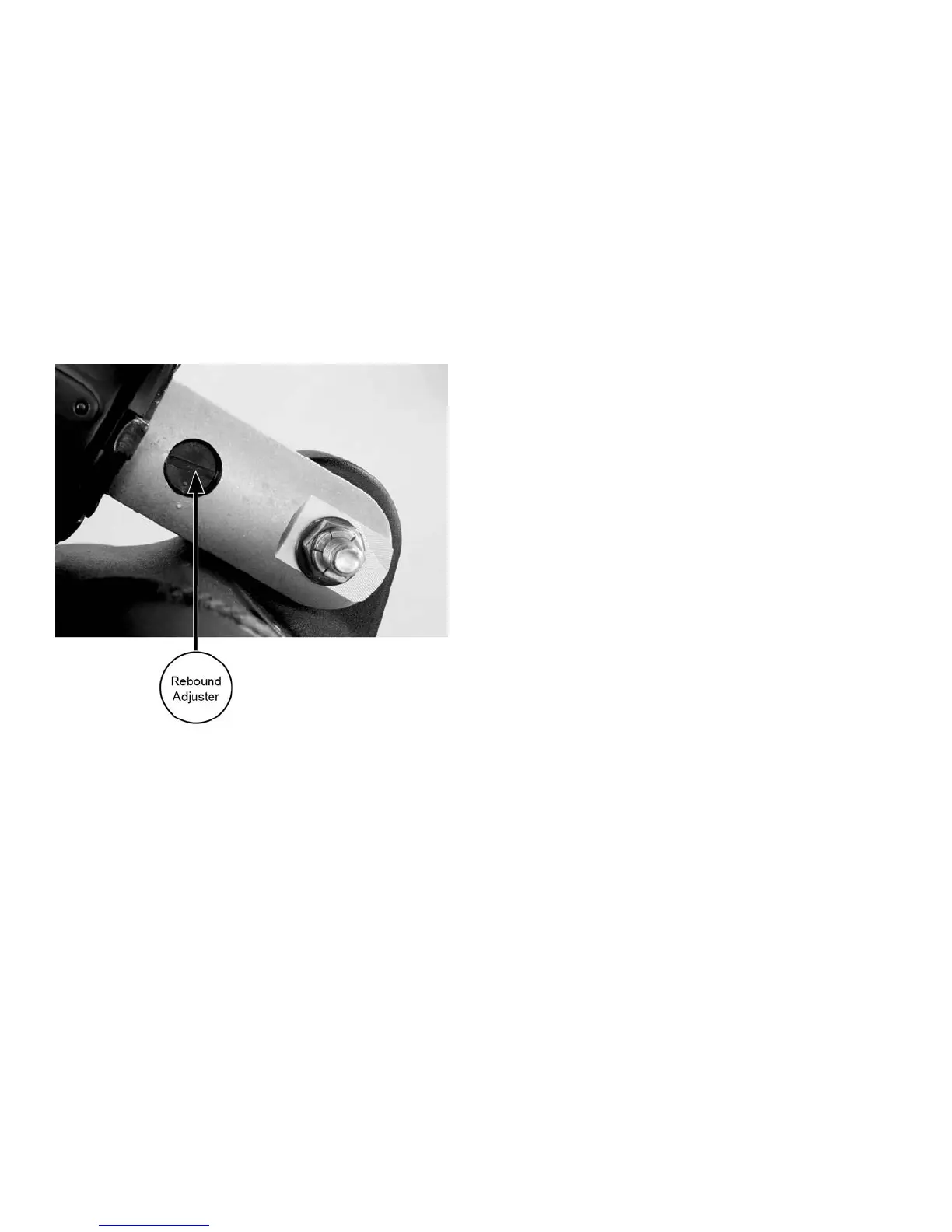

Figure 45. Rear Rebound Adjuster.
Front Fork Preload Settings
See Figure 44. The factory setting is 5 turns in (clockwise)
from minimum setting. Use 5mm Allen wrench to turn
adjusting screw to desired preload setting. There are
approximately 14 turns total range of adjustment each turn is
1mm of spring preload. NOTE: Both forks should be set the
same.
Front Compression Damping
See Figure 30. Use screwdriver to lightly tighten screw
clockwise until it stops. Loosen screw counterclockwise
counting the turns as you go to get to desired setting. Factory
setting is 6 turns out (counterclockwise) from maximum.
There are approximately 7 turns a total of range of
adjustment. NOTE: Both forks should be set the same.
See Figure 30. Use screwdriver to lightly tighten screw
clockwise until it stops. Loosen screw counterclockwise
counting the turns as you go to get to desired setting. Factory
setting is4 turn out (counterclockwise) from maximum. There
are approximately 5 1/2 turns total of range of adjustment.
76
