LX20B – Manual Page 32 / 67
with GPRS transmission. Parameter this allow for significant extension of distance
between tests (time in minutes) or completely interlocking of this option.
7.1.3.2.3. Send events immediately
In case of GPRS/3G connection lost device will send SMS reports immediately, even
if the LX20B isn’t in SMS mode yet.

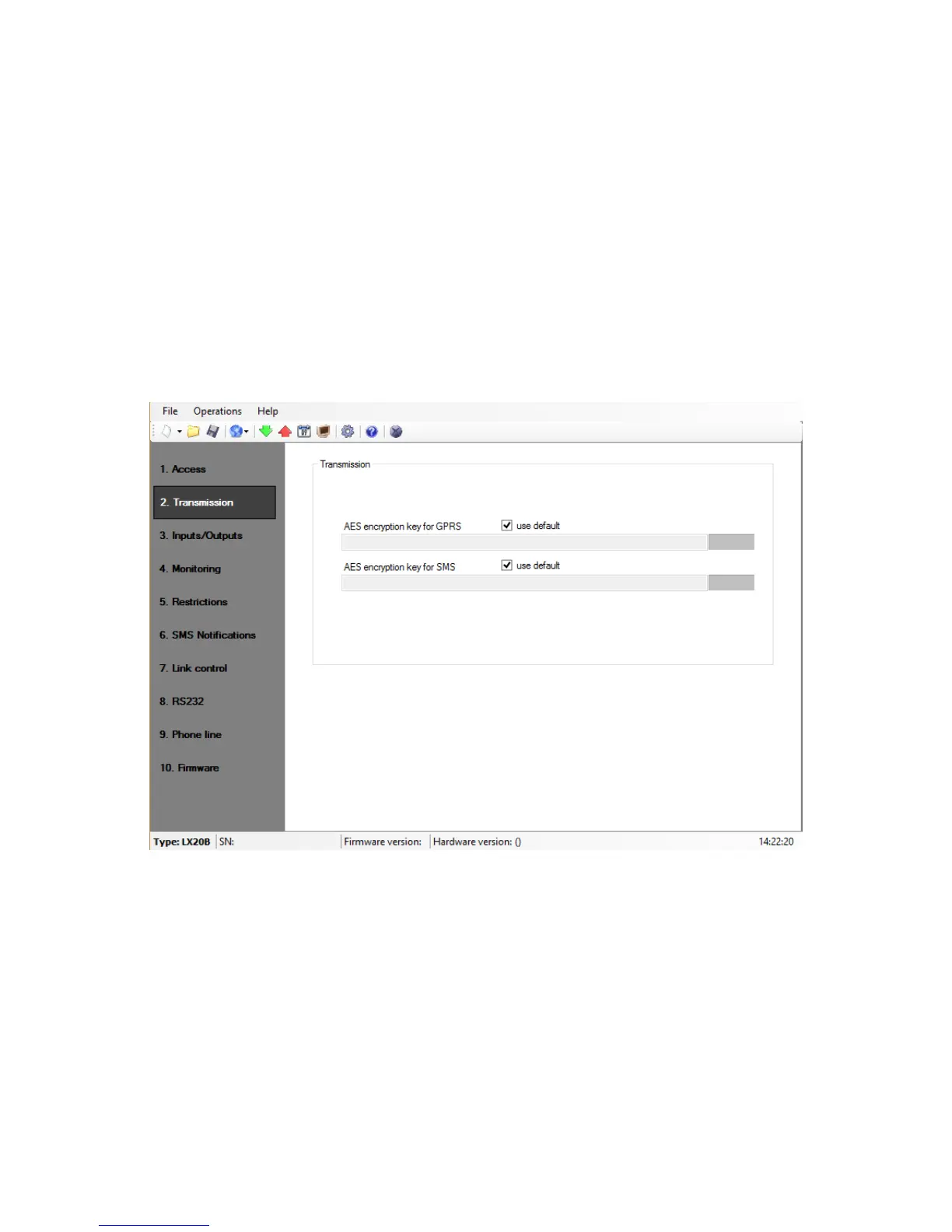

7.2. TRANSMISSION
For the purpose of maximum security of transmission, data is encrypted with AES
key. This option may be used for GPRS and SMS transmission.
After selection of encrypted transmission you may use your own code (256 bytes –
signs 0-9 and A-F) or use default settings.
7.3. INPUTS/OUTPUTS
Transmitter has got 5 signal inputs. Module is equipped with two outputs.
Inputs/Outputs option enable programmable configuration so that transmitter
operates pursuant to requirements of the user.
7.3.1. Inputs configuration
For every input the following settings shall be determined respectively.
7.3.1.1. Input mode
