LX20B – Manual Page 38 / 67
7.3.4.1. Output 1/Output 2

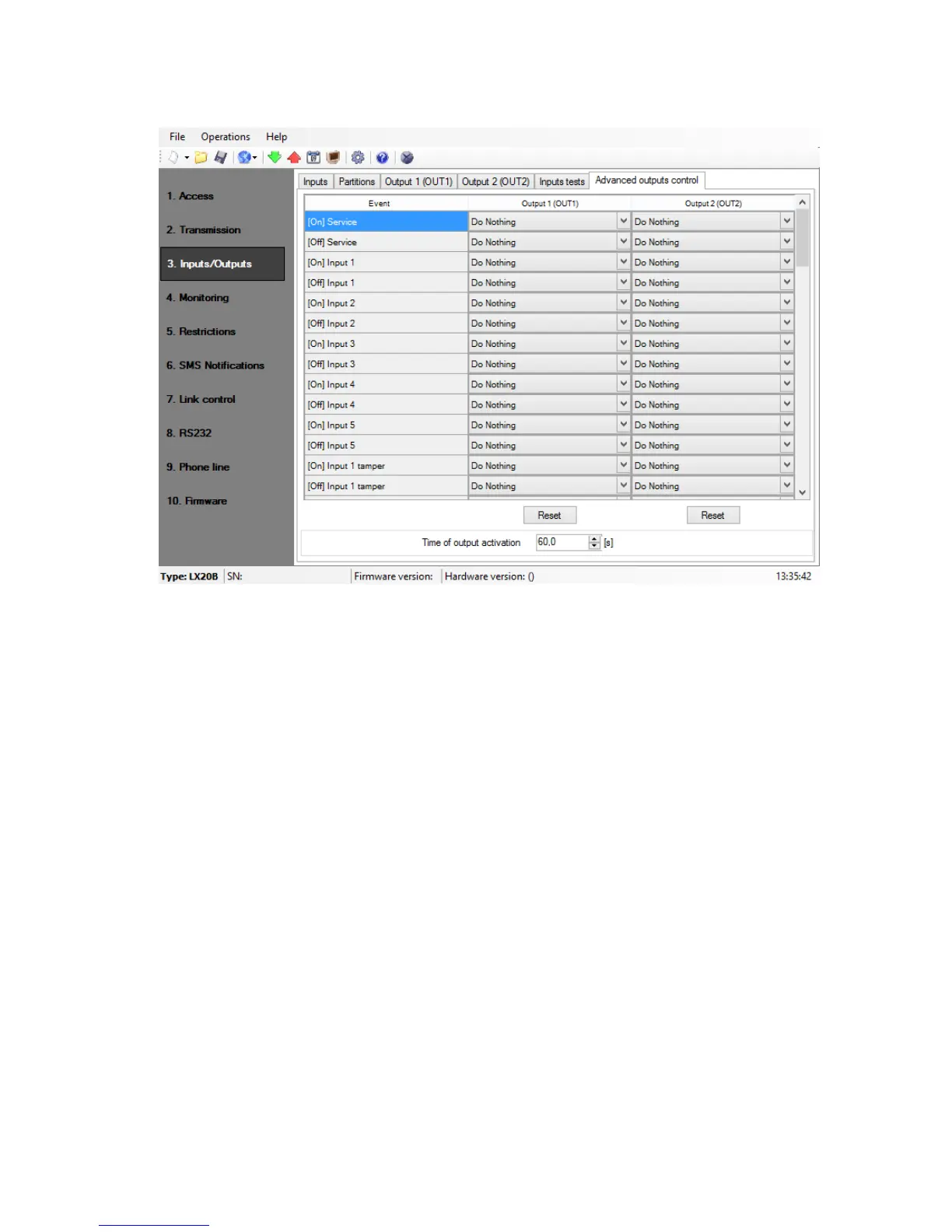

These columns define which signals are to influence the status of a specific output.
You can define the output operating mode and which signals control the outputs.
Available options for the output mode:
o Do Nothing – output status will be not changed (default action)
o Turn on output – output will be permanently turned on
o Turn on output temporarily – output will be turned on for an amount of time
specified by parameter 7.3.4.2 Time of output activation
o Turn off output – output will be turned off
Press the [Reset] button to assign the action “Do Nothing” for each event.
The output state does not change if the current state of the output coincides with
the result of the action.
7.3.4.2. Time of output activation
Parameter defining amount of time for which the output is to be turned on for the
functions of advanced outputs control.
