LX20B – Manual Page 36 / 67
7.3.2.4. Exit time
Partition exit time. Partition inputs will be monitored when this configured time
elapses after partition input had been armed.
7.3.2.5. Entry time
Time after which alarm will be generated after delayed input had been armed and
partition to which delayed input belongs will not be disarmed.

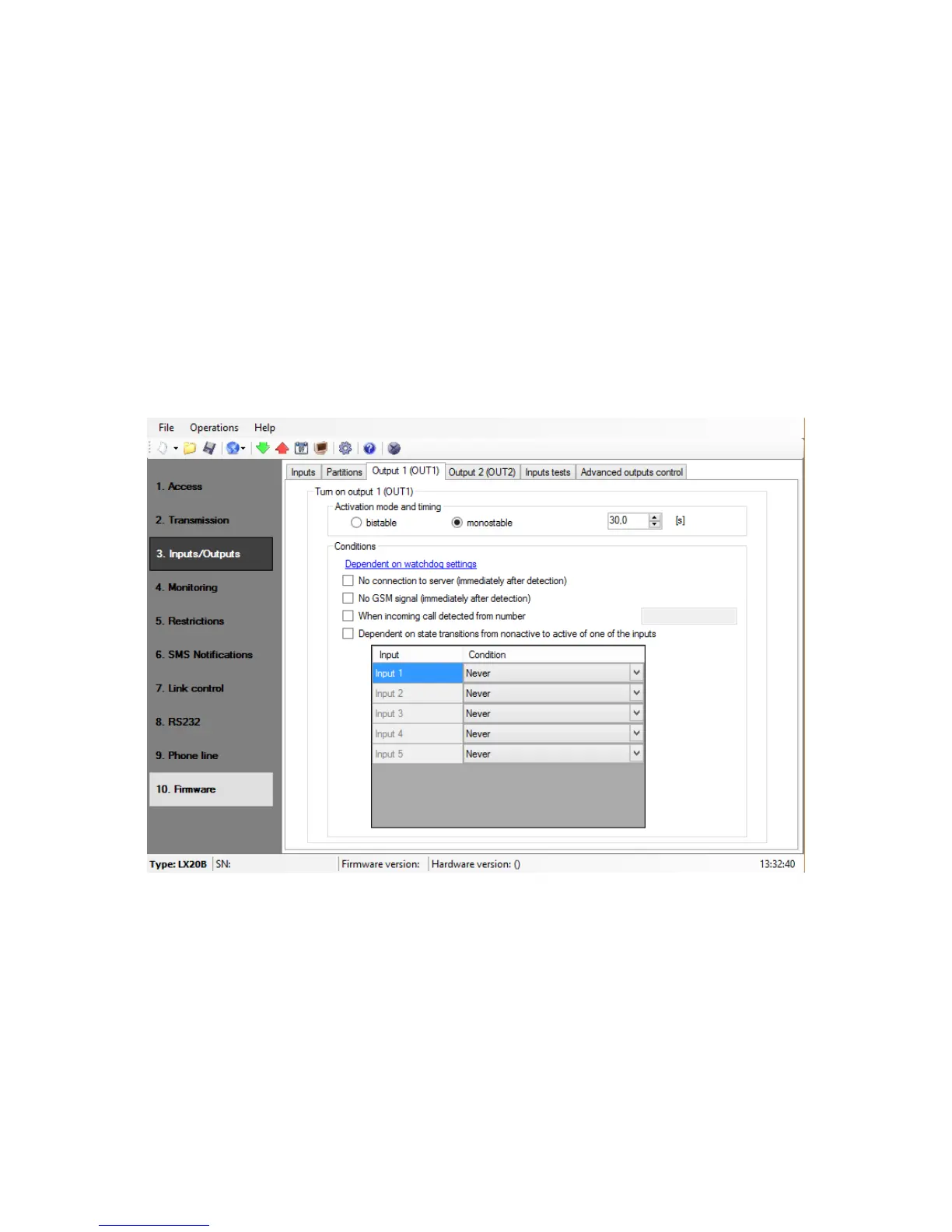

7.3.3. Outputs
Tab „Output 1 (OUT1)” and „ Output 2 (OUT2)” specify conditions of switch outputs.
Settings for all outputs are identical so they will be described in one chapter.
7.3.3.1. Activation mode and timing
Thanks to this option you may choose output operation mode. There are two
operation modes available:
o Bistable – connection follows for indefinite time – up to the moment of
disconnection of power for module or remote command which switches
output off,
o Monostable – connection follows for time defined by user – every 100ms.
7.3.3.2. Conditions
