LX2NB Manual v.1.9 Page 21 / 60
Click on [Add] button to confirm settings. Connections shall be saved (and inserted
in table). From this time on program shall enable remote connection to device and
reading and saving of parameters in LX memory shall be possible.
Notice: The following parameters: analyzer name, analyze address, port
relate to settings of OSM.Server receiver of monitoring system. Remote
programming is available only if above mentioned device (or software) is
used.
CSD link
Activate file in Main Menu and select Connection function (or after clicking on
icon on fast access bar) and click on GSM Modem tab to carry out configuration of
this mode.

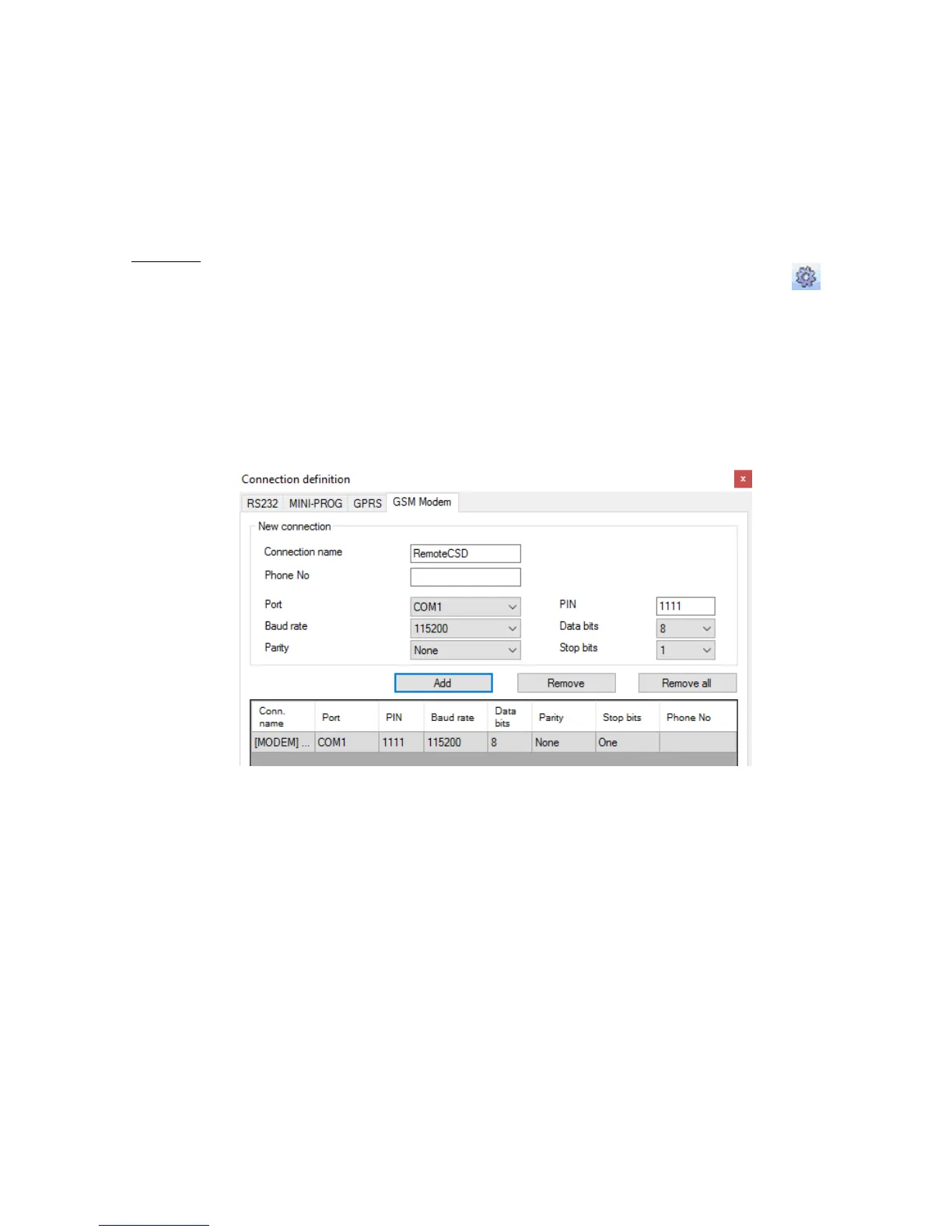

On screen the window shall appear where it is possible to define:
Name of connection e.g. Remote CSD
Serial port where GSM modem is connected (e.g. Wavecom Fastrack)
PIN code of SIM card installed in GSM modem e.g. 1111
Serial port parameters: amount of bytes/sec. (e.g. 115200), data bytes (8),
parity (none), stop bytes (1)
Click [Add] button to confirm settings and save connection (settings are inserted
into table). Since that time a remote connection to device, reading and saving of
parameters in LX memory is possible.
Note : Remote configuration with CSD channel is possible if option of CSD data
sending has been activated both for SIM card inserted into a device and SIM card
installed in GSM modem. In addition, the transmitter must have turned on
permission to receive CSD data calls, see clause 7.5.2 .
Programming with CSD is also possible if OSM.Server system has been installed,
and minimum one GSM modem is connected. If device has been entered onto
server list (factory number and SIM card telephone number –See OSM.Server
Operation Manual) it is possible to use link via OSM. It is possible if device is not
connected to the OSM.Server via GPRS. During programming procedure (with GPRS
link- See above) a question will be displayed if user want to use a modem
connected to the server. After confirmation procedure will follow as in case of other
programming channels.
