LX2NB Manual v.1.9 Page 32 / 60
7.3.2.3. Delayed inputs
Here, delayed inputs can be selected. Delayed input switches on associated output,
ie. generates alarm, after expiry of Entry time, but only when partition to which
input belongs will not be disarmed before Entry time period.
7.3.2.4. Exit time
Partition exit time. Partition inputs will be monitored when this configured time
elapses after partition input had been armed.
7.3.2.5. Entry time
Time after which alarm will be generated after delayed input had been armed and
partition to which delayed input belongs will not be disarmed.
7.3.3. Output configuration

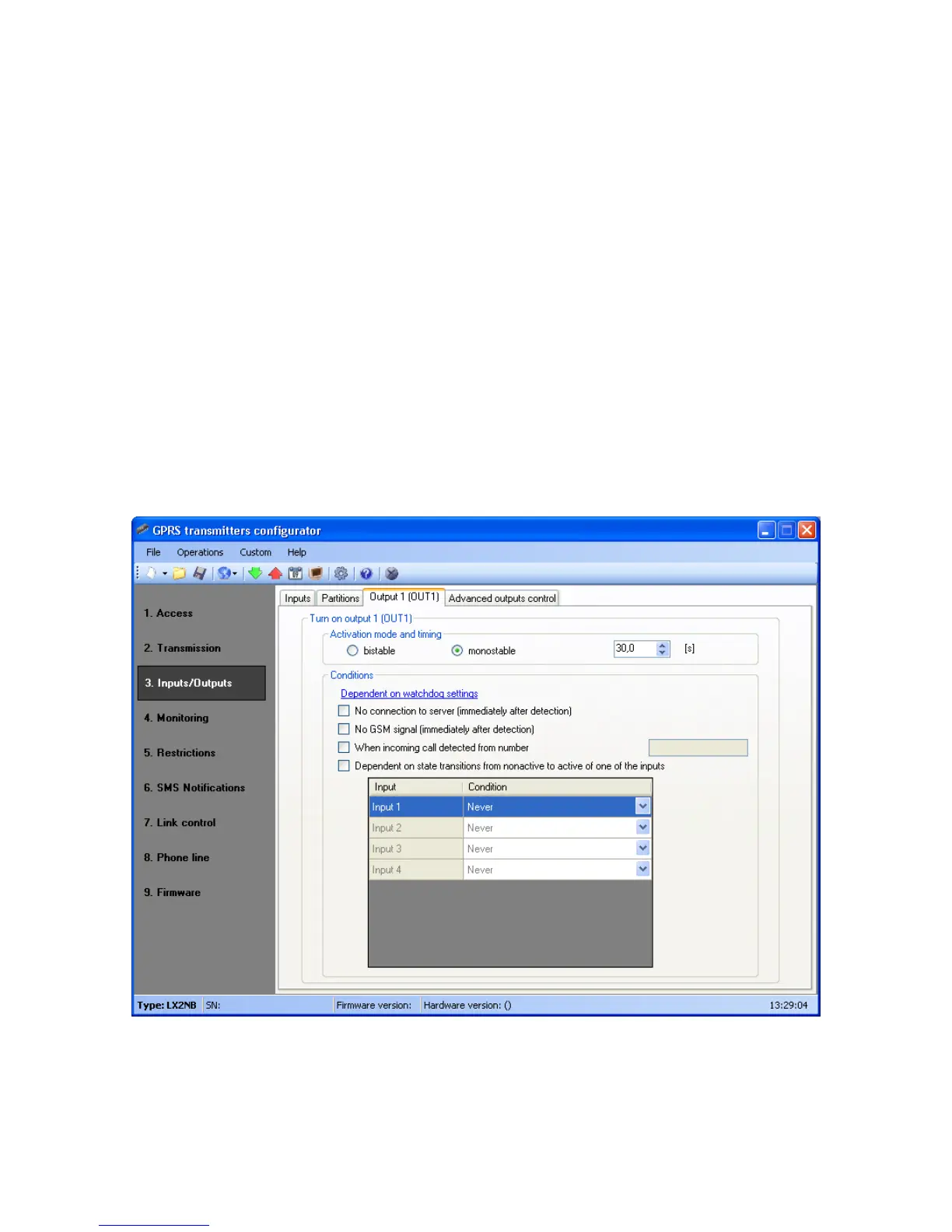

Tab „Output 1 (OUT1)” specify conditions of switch output.
7.3.3.1. Activation mode and timing
Thanks to this option you may choose output operation mode. There are two
operation modes available:
