LX2NB Manual v.1.9 Page 8 / 60
3. ASSEMBLY AND WIRING
Transmitter is delivered along with a power supply (See below). The manufacturer
provides necessary wiring linking a power supply with the transmitter, and
described procedures relate to wiring of a transmitter printed circuit board.
Switch power off to perform any connection.
3.1. LX2NB TRANSMITTER

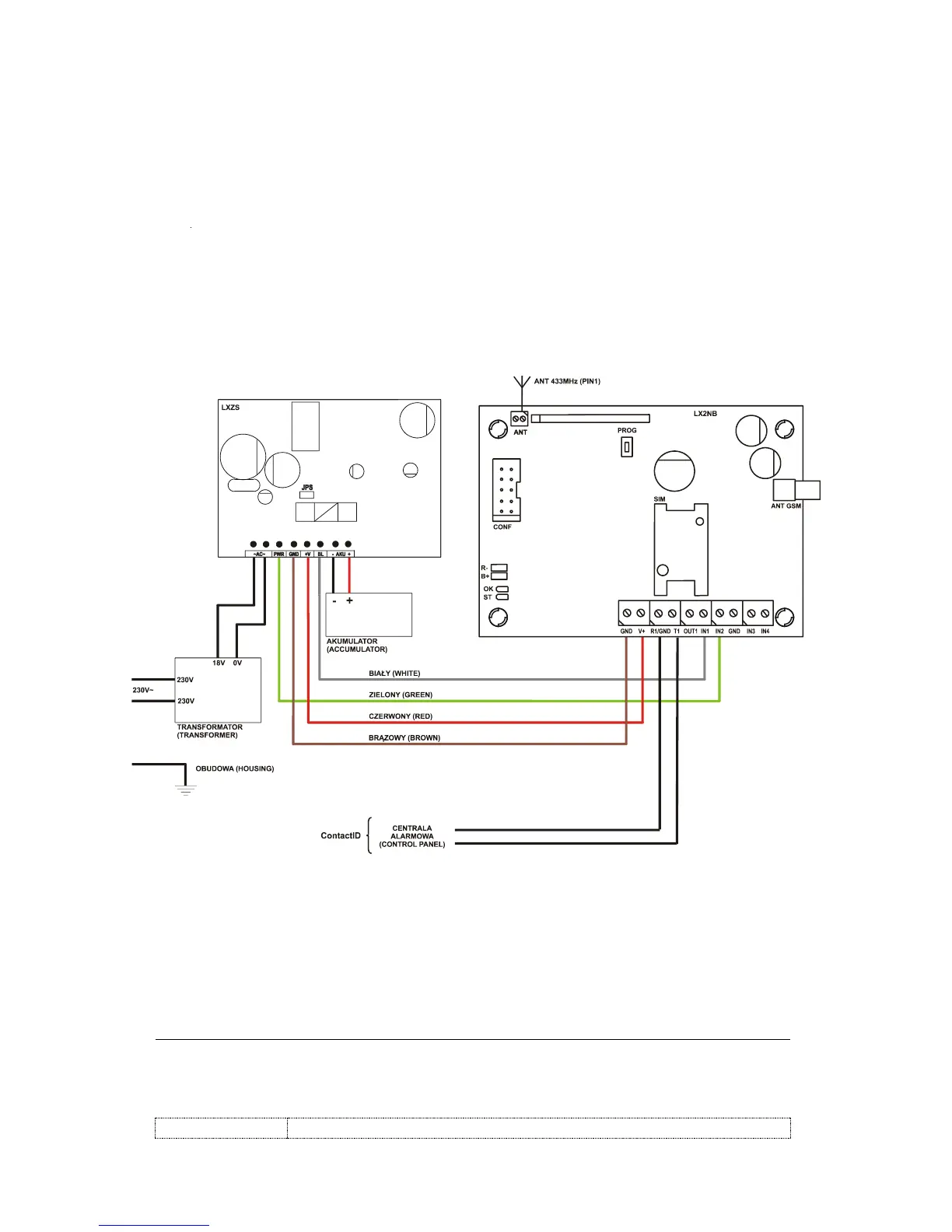

Figure 1. LX2NB Transmitter with LX-ZAS
a) Connections of wires shall be made with due care to prevent any faults or dead
shorts. Places of connections shall be protected against weather conditions.
a) According to the above figure terminals of transmitter shall be connected to:
To Next Page
