ECCI TRACKSTAR 6000 - Pedal Resistance Spring Adjustment; Pedal Potentiometer Wire Connections

TRACKSTAR
MAIN SPRING BRACKET POSITION

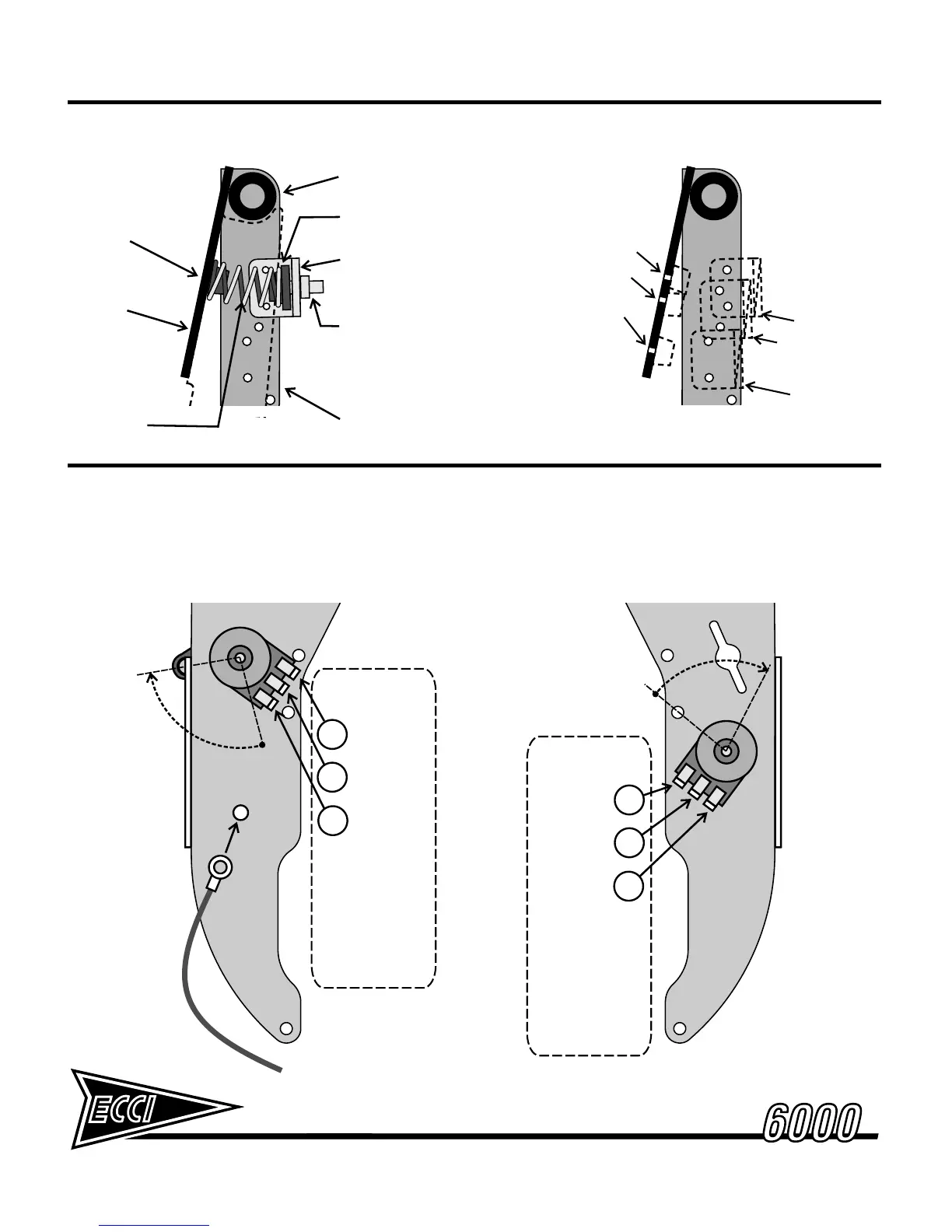

Figure 18 - PEDAL POTENTIOMETER WIRE CONNECTIONS [HI-DEF]
GAS PEDAL POT
ALL POTENTIOMETERS VIEWED FROM BACK SIDE (INSIDE OF POTENTIOMETER CARTRIDGE)
DIRECTION
OF POT
ROTATION
A
C
B
CABLE
GROUND
ATTACHMENT
POT TERMINALS
DIRECTION
OF POT
ROTATION
F
D
E
POT TERMINALS
BLACK
WIRE COLORS
WIRE COLORS
VIOLET
GREEN
BLUE
ORANGE
PINK
Figure 17 - PEDAL RESISTANCE SPRING ADJUSTMENT
UPPER SPRING
SEAT
PEDAL
ARM
PEDAL ARM
PIVOT
LOWER SPRING
SEAT
LOWER SPRING
SEAT BRACKET
PRELOAD
ADJUSTMENT
PEDAL FRAME
PEDAL
RESISTANCE
SPRING
SCREW AND
LOCKNUT
LIGHT
HEAVY
MED.
LIGHT
MEDIUM
HEAVY
BRAKE PEDAL POT
(PMB UNIT)
