ECCI TRACKSTAR 6000 - Steering Resistance Spring Combinations; Steering Centering Tuning

TRACKSTAR
ROTATION FROM CENTER
0 240-240
RESISTANCE FORCE
0 MAX
MINIMUM PRELOAD
ROTATION FROM CENTER
0 240-240
RESISTANCE FORCE
0 MAX
MAXIMUM PRELOAD
OUTER MIDDLE INNER
140 lb.
173 lb.
197 lb.
197 lb.
24 lb.57 lb.
116 lb.
2.0 TURNS MAX PRELOAD
2.0 TURNS MAX PRELOAD
2.5 TURNS MAX PRELOAD
57 lb.
81 lb.
116 lb.
2.5 TURNS MAX PRELOAD
3.0 TURNS MAX PRELOAD
3.5 TURNS MAX PRELOAD
MONOPOINT II
CONCENTRIC
SPRING SYSTEM
2.0 TURNS FOR STRONGEST CENTERING FORCE
0.75 TO 1.25 TURNS FOR BALANCED FEEL
0.5 TURNS FOR LIGHTEST CENTERING
2.0 TURNS FOR STRONGEST CENTERING FORCE
0.75 TO 1.25 TURNS FOR BALANCED FEEL
0.5 TURNS FOR LIGHTEST CENTERING
2.5 TURNS FOR STRONGEST CENTERING FORCE
1 TO 1.5 TURNS FOR BALANCED FEEL
0.5 TURNS FOR LIGHTEST CENTERING
2.5 TURNS FOR STRONGEST CENTERING FORCE
1 TO 1.5 TURNS FOR BALANCED FEEL
0.5 TURNS FOR LIGHTEST CENTERING
3.5 TURNS FOR STRONGEST CENTERING FORCE
2.0 TO 2.5 TURNS FOR BALANCED FEEL
0.75 TURNS FOR LIGHT CENTERING
SPRING COMBINATIONS PRELOAD RANGE AVAILABLE
3.0 TURNS FOR STRONGEST CENTERING FORCE
1.5 TO 2 TURNS FOR BALANCED FEEL
0.75 TURNS FOR LIGHT CENTERING
BALANCED RANGE IS RECOMMENDED FOR THE BEST COMBINATION OF SMOOTHNESS AND CENTER FEEL
COMBINATION

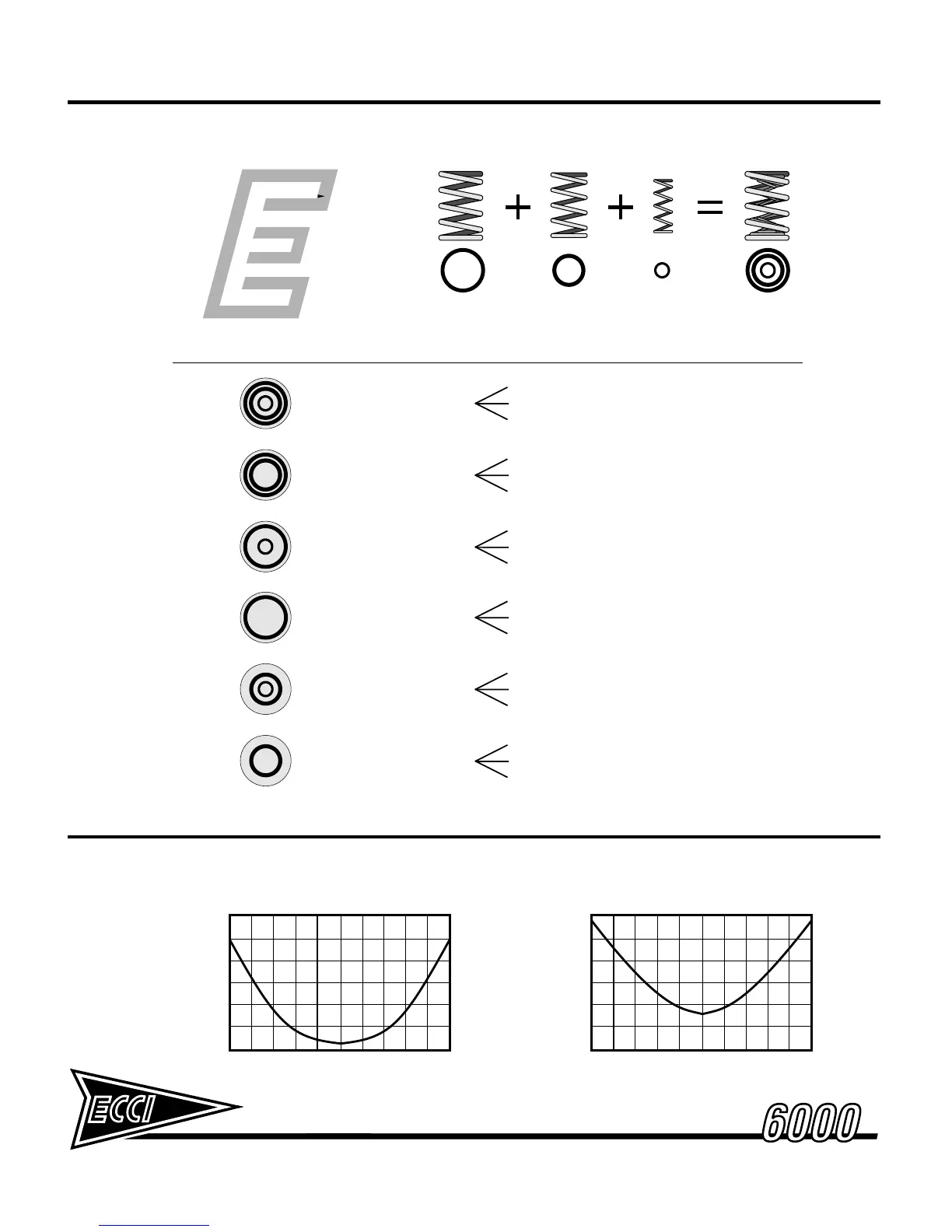

Figure 24 - STEERING RESISTANCE SPRING COMBINATIONS
Figure 25 - STEERING CENTERING TUNING
