ECCI TRACKSTAR 6000 - Assembled Wheel Unit; Table Bracket Installation

TRACKSTAR

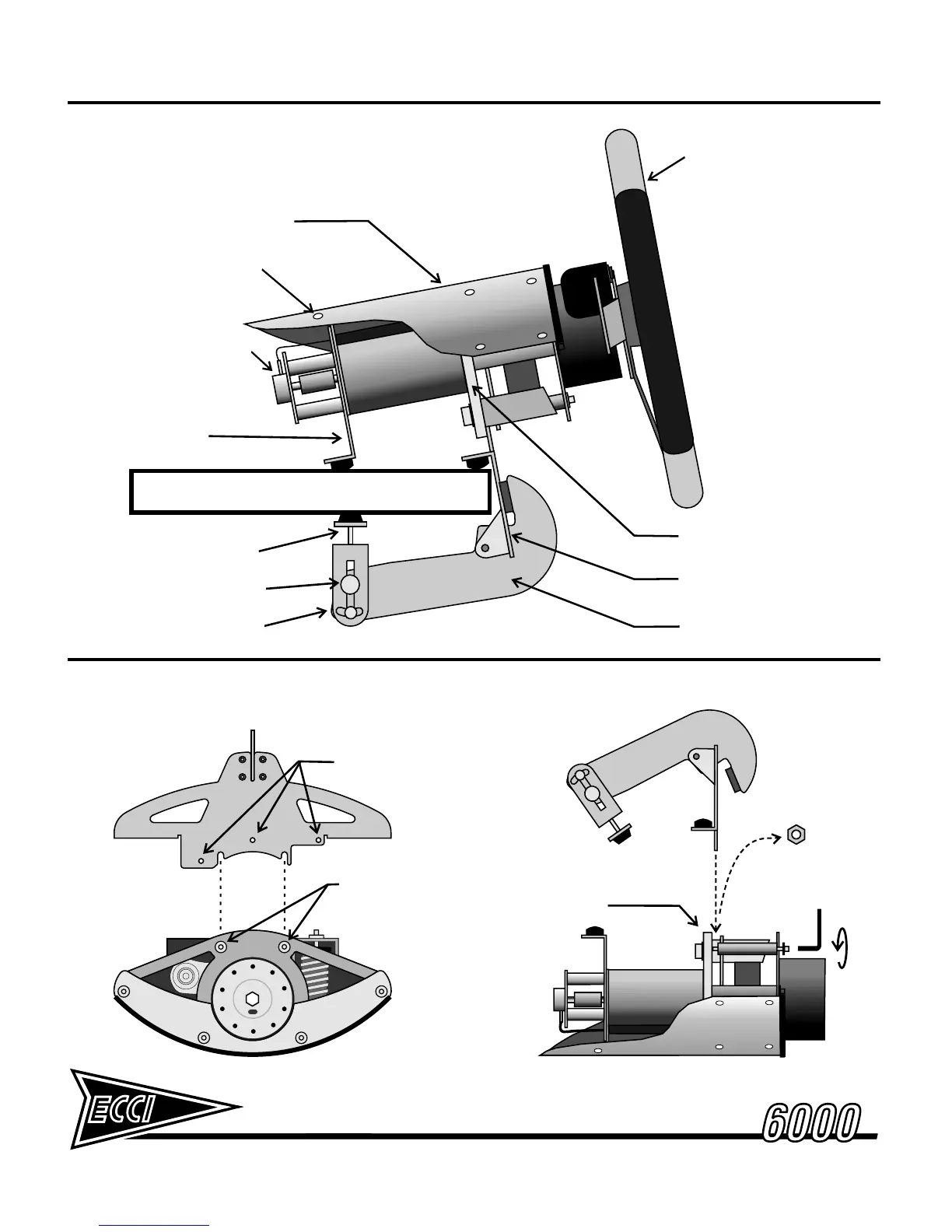

Figure 3 - TABLE BRACKET INSTALLATION
CHASSIS TUBE BOLTS
BRACKET MOUNT
SCREW HOLES
HEX KEY
CENTRAL STRUCTURAL PLATE
REMOVE
2 NUTS
Figure 2 - ASSEMBLED WHEEL UNIT
STEERING WHEEL
TABLE MOUNTING
BRACKET
CENTRAL CHASSIS
STRUCTURAL PLATE
BRACKET
TENSIONING BOLT
TENSIONING PIVOT
TABLE MOUNTING ARM
PIVOT SET SCREW
WHEEL UNIT HOUSING
POTENTIOMETER
HOUSING SCREWS
REAR LEG
