TRACKSTAR
CENTER LOGO
STEERING UNIT
BUTTON
WHEEL MOUNT
SCREWS (5)
STEERING
WHEEL
CHASSIS
SHIFT PADDLE SET
BUTTON RETAINING RING
WHEEL SPACER (OPTIONAL)
NON-MOMO WHEEL INSTALLATION
E- LOGO
STEERING UNIT
PLATE
WHEEL MOUNT
SCREWS (4)
CHASSIS
SHIFT PADDLE SET
PADDLE MOUNT SCREWS (5)
MOMO WHEEL INSTALLATION STEP ONE STEP TWO
BEFORE AND DURING INSTALLATION OF THE WHEEL
MAKE SURE THAT THE SWITCH WIRES ARE ROUTED
THROUGH THESE SLOTS. THE WHEEL SCREWS
SHOULD BE TIGHTENED ONLY AFTER VERIFYING THE
CORRECT POSITION OF THESE WIRES

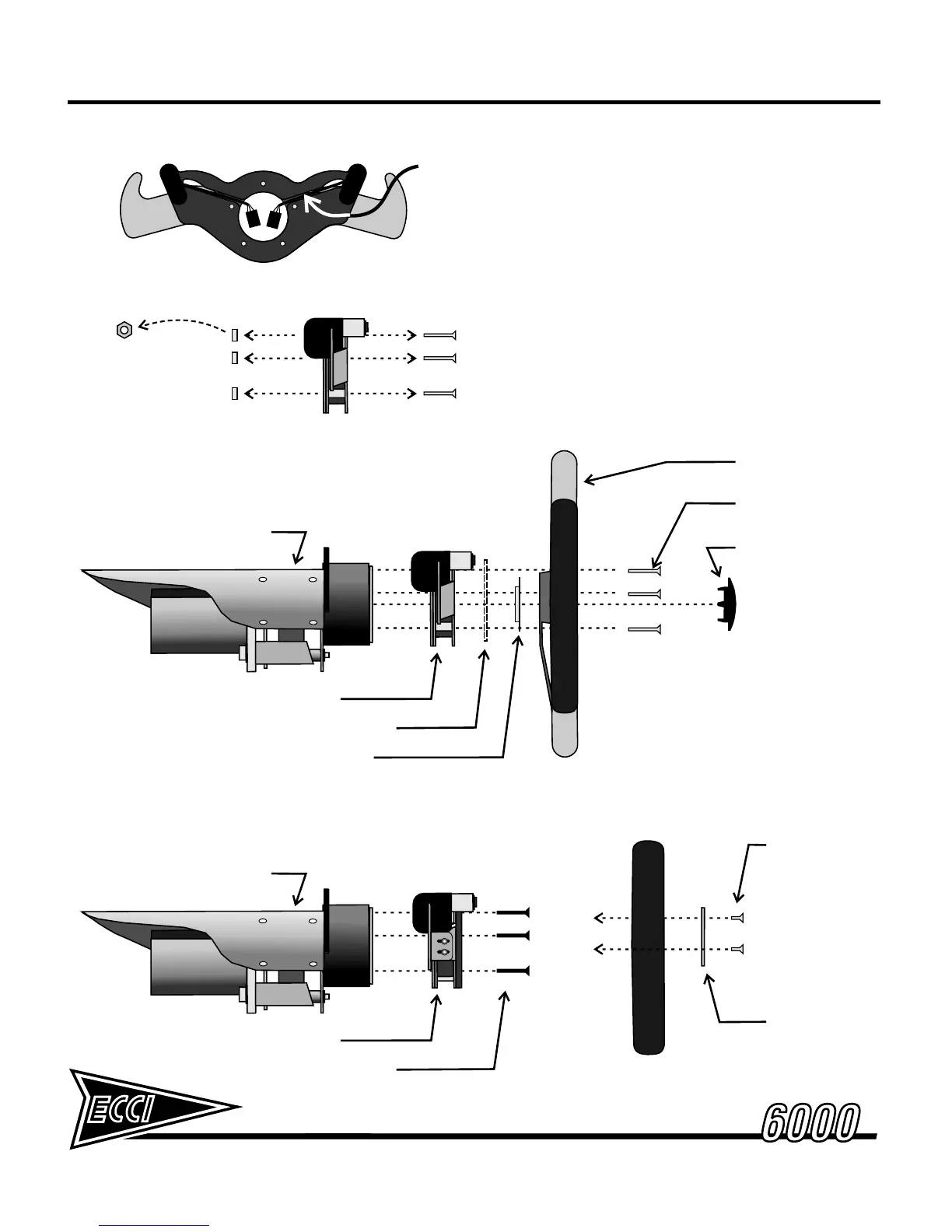

Figure 5b - WHEEL AND PADDLE SET INSTALLATION
PADDLE SET PREPARATION
WHEEL MOUNT
SCREWS (5)
DISCARD
NUTS (5)
TEMPORARY
To Next Page
