ECCI TRACKSTAR 6000 - Steering Potentiometer Mounting Details; Pedal Potentiometer Mounting Details

TRACKSTAR
PEDAL POT
BRACKET
POT SHAFT
POT RETAINING
NUT AND LOCK
WASHER
POT FOLLOWER
ARM
Figure 29b - PEDAL POTENTIOMETER MOUNTING DETAILS
Figure 29a - STEERING POTENTIOMETER MOUNTING DETAILS
STEERING POT
POT BRACKET
SCREWS
POT MOUNTING
BRACKET
POT RETAINING
NUT AND LOCK
WASHER
STEERING POT
CONNECTOR
REAR CHASSIS
PLATE
STEERING SHAFT
TERMINUS
STEERING
SHAFT
CLAMPING
SCREW
POT SHAFT
CLAMPING
SCREW
POT FOLLOWER
ARM
FOLLOWER ARM
SET SCREWS
SLOTTED POT SHAFT
TURN SLOTTED SHAFT WITH
SCREWDRIVER BLADE TO ADJUST
CENTER SLOT
OF POT SHAFT
MUST BE IN
VERTICAL
POSITION
STEERING POT BRACKET
ASSEMBLY READY FOR CHASSIS
INSTALLATION

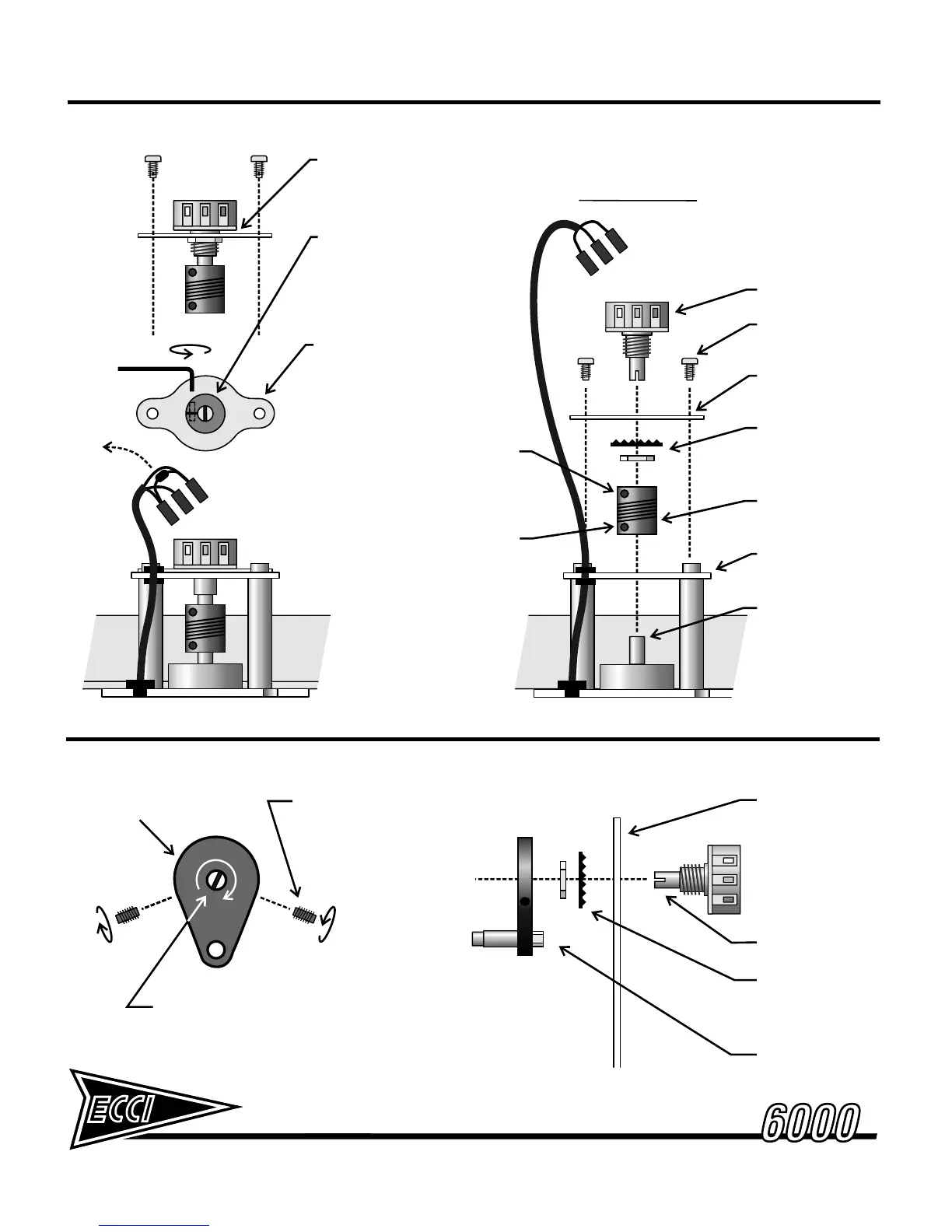

EXPLODED VIEW
STEERING UNIT CHASSISSTEERING UNIT CHASSIS
POT
MOUNTING
BRACKET
HEX KEY
