Center Illumination
Installation

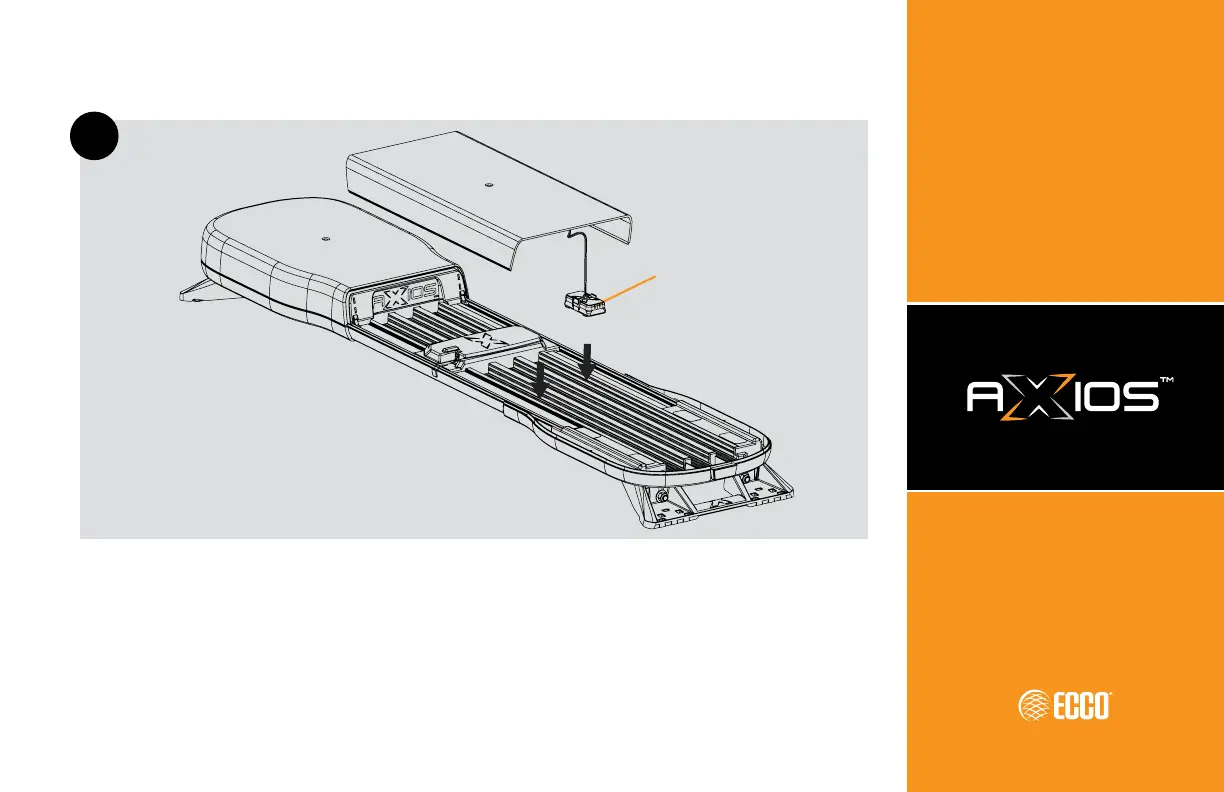

When installing the center illumination module lens, insert the opposite end of this lens
from the DropLock power adapter into the already installed end lens(es), position on the
chassis, then secure the DropLock power adapter within the area that is covered by the
center illumination module lens. The DropLock power adapter must be installed in either
the front or rear power rail only.
2
60”m/1.5m & 72”/1.8m
For correct operation, the DropLock power adapter must
be installed in either the front or rear power rail only.
Power adapter
