PLEASE NOTE: SH12
-
A IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECTED TO CHANGE WITHOUT NOTICE.
PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR MORE INFORMATION.
English

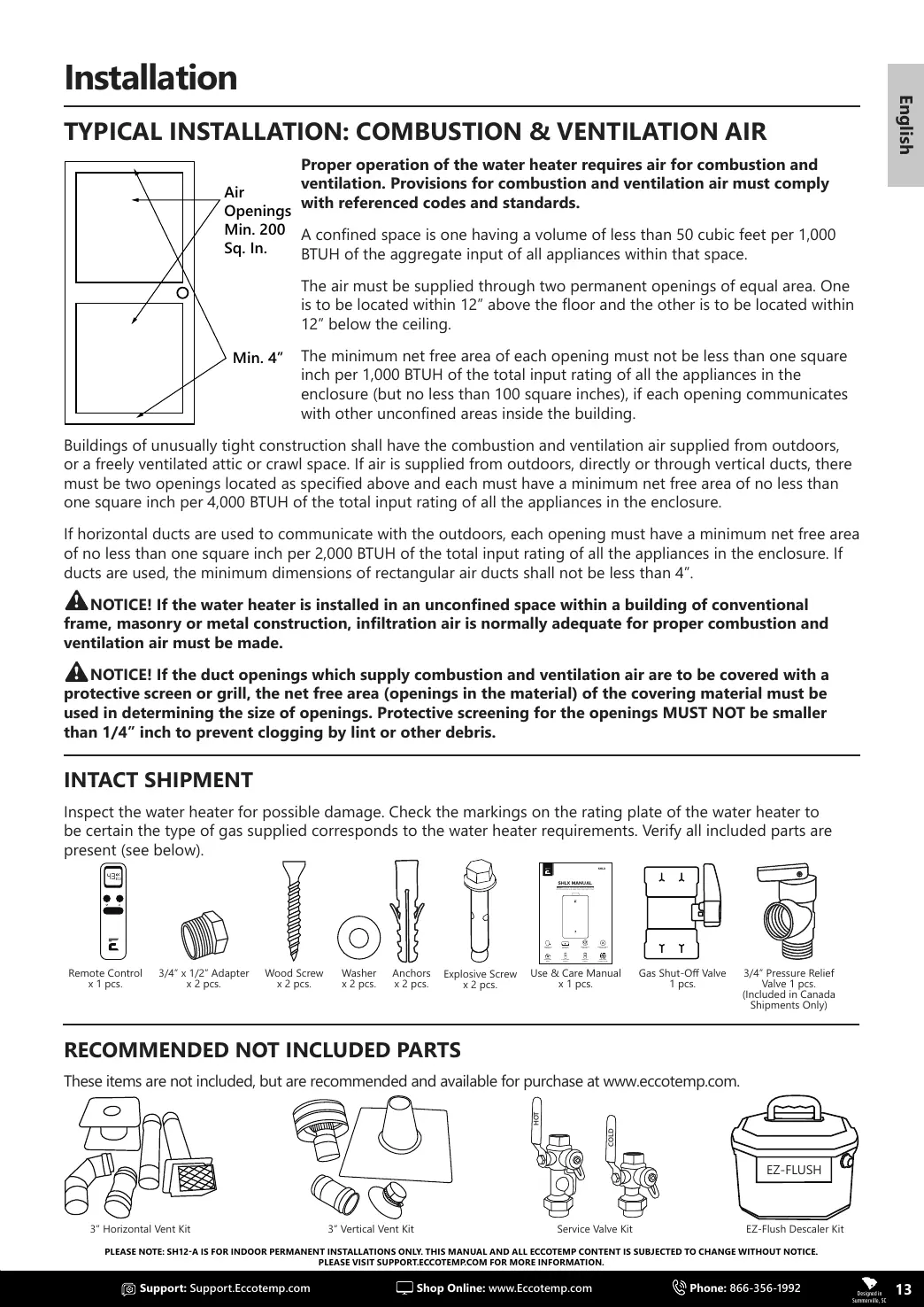

Installation
TYPICAL INSTALLATION: COMBUSTION & VENTILATION AIR
INTACT SHIPMENT
Inspect the water heater for possible damage. Check the markings on the rating plate of the water heater to
be certain the type of gas supplied corresponds to the water heater requirements. Verify all included parts are
present (see below).
Proper operation of the water heater requires air for combustion and
ventilation. Provisions for combustion and ventilation air must comply
with referenced codes and standards.
A conned space is one having a volume of less than 50 cubic feet per 1,000
BTUH of the aggregate input of all appliances within that space.
The air must be supplied through two permanent openings of equal area. One
is to be located within 12” above the oor and the other is to be located within
12” below the ceiling.
The minimum net free area of each opening must not be less than one square
inch per 1,000 BTUH of the total input rating of all the appliances in the
enclosure (but no less than 100 square inches), if each opening communicates
with other unconned areas inside the building.
Buildings of unusually tight construction shall have the combustion and ventilation air supplied from outdoors,
or a freely ventilated attic or crawl space. If air is supplied from outdoors, directly or through vertical ducts, there
must be two openings located as specied above and each must have a minimum net free area of no less than
one square inch per 4,000 BTUH of the total input rating of all the appliances in the enclosure.
If horizontal ducts are used to communicate with the outdoors, each opening must have a minimum net free area
of no less than one square inch per 2,000 BTUH of the total input rating of all the appliances in the enclosure. If
ducts are used, the minimum dimensions of rectangular air ducts shall not be less than 4”.
NOTICE! If the water heater is installed in an unconned space within a building of conventional
frame, masonry or metal construction, inltration air is normally adequate for proper combustion and
ventilation air must be made.
NOTICE! If the duct openings which supply combustion and ventilation air are to be covered with a
protective screen or grill, the net free area (openings in the material) of the covering material must be
used in determining the size of openings. Protective screening for the openings MUST NOT be smaller
than 1/4” inch to prevent clogging by lint or other debris.
RECOMMENDED NOT INCLUDED PARTS
These items are not included, but are recommended and available for purchase at www.eccotemp.com.
Air
Openings
Min. 200
Sq. In.
Min. 4”
INSTALLATION, USE AND CARE INSTRUCTIONS
SMARTHOME TANKLESS WATER HEATER
SHLX MANUAL
SHLX
SMARTHOME
READY
SMART VOICE
COMMANDS
ADVANCED ERROR
DETECTION
SMART APP
CONTROL
SMART ON/OFF
BUTTON
DIGITAL TEMP
CONTROL
“A” RATING
EFFICIENCY
INTELLIGENT
CONTROL BOARD
EZ-FLUSH
43
C
HOT
COLD
Remote Control
x 1 pcs.
3/4” x 1/2” Adapter
x 2 pcs.
Washer
x 2 pcs.
Wood Screw
x 2 pcs.
Anchors
x 2 pcs.
Explosive Screw
x 2 pcs.
Use & Care Manual
x 1 pcs.
Gas Shut-O Valve
1 pcs.
3/4” Pressure Relief
Valve 1 pcs.
(Included in Canada
Shipments Only)
3” Horizontal Vent Kit 3” Vertical Vent Kit
Service Valve Kit
EZ-Flush Descaler Kit
!

!

