Installation

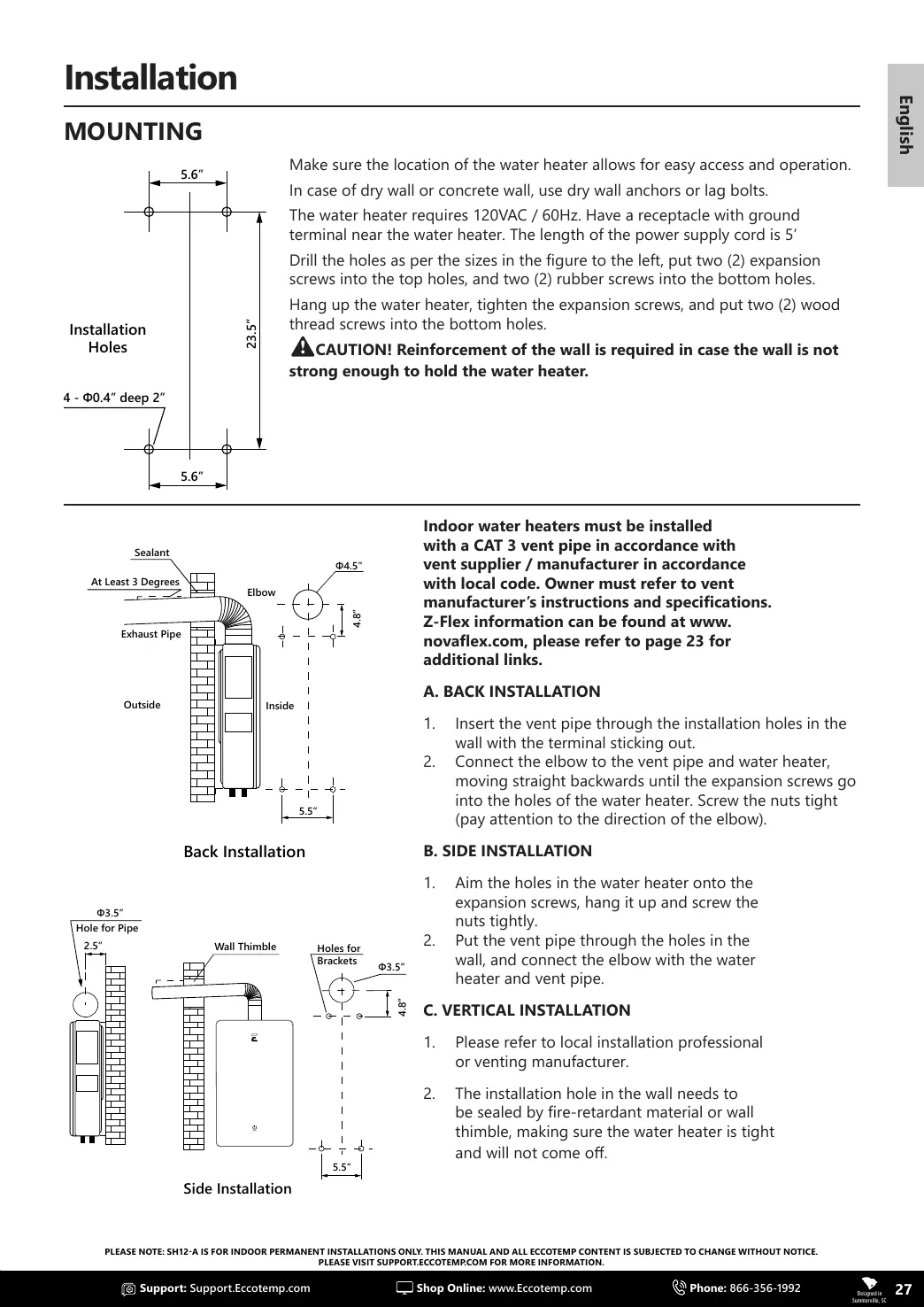

MOUNTING
4 - Φ0.4”
profundo 2”
Installation
Holes
4 -
Φ0.4” deep 2”
5.6”
5.6”
23.5”
Make sure the location of the water heater allows for easy access and operation.
In case of dry wall or concrete wall, use dry wall anchors or lag bolts.
The water heater requires 120VAC / 60Hz. Have a receptacle with ground
terminal near the water heater. The length of the power supply cord is 5’
Drill the holes as per the sizes in the gure to the left, put two (2) expansion
screws into the top holes, and two (2) rubber screws into the bottom holes.
Hang up the water heater, tighten the expansion screws, and put two (2) wood
thread screws into the bottom holes.
CAUTION! Reinforcement of the wall is required in case the wall is not
strong enough to hold the water heater.
Indoor water heaters must be installed
with a CAT 3 vent pipe in accordance with
vent supplier / manufacturer in accordance
with local code. Owner must refer to vent
manufacturer’s instructions and specications.
Z-Flex information can be found at www.
novaex.com, please refer to page 23 for
additional links.
A. BACK INSTALLATION
1. Insert the vent pipe through the installation holes in the
wall with the terminal sticking out.
2. Connect the elbow to the vent pipe and water heater,
moving straight backwards until the expansion screws go
into the holes of the water heater. Screw the nuts tight
(pay attention to the direction of the elbow).
B. SIDE INSTALLATION
1. Aim the holes in the water heater onto the
expansion screws, hang it up and screw the
nuts tightly.
2. Put the vent pipe through the holes in the
wall, and connect the elbow with the water
heater and vent pipe.
C. VERTICAL INSTALLATION
1. Please refer to local installation professional
or venting manufacturer.
2. The installation hole in the wall needs to
be sealed by re-retardant material or wall
thimble, making sure the water heater is tight
and will not come o.
Back Installation
Inside
Outside
Exhaust Pipe
At Least 3 Degrees
Sealant
Elbow
Φ4.5”
5.5”
Φ3.5”
Hole for Pipe
5.5”
Side Installation
4.8”
Wall Thimble
2.5”
Holes for
Brackets
Φ3.5”
4.8”
!

