Eccotemp SHLX - Typical Installation

PLEASE NOTE: SH12
-
A IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECTED TO CHANGE WITHOUT NOTICE.
PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR MORE INFORMATION.
14
14
Support: Support.Eccotemp.com Shop Online: www.Eccotemp.com Phone: 866-356-1992
English
Installation

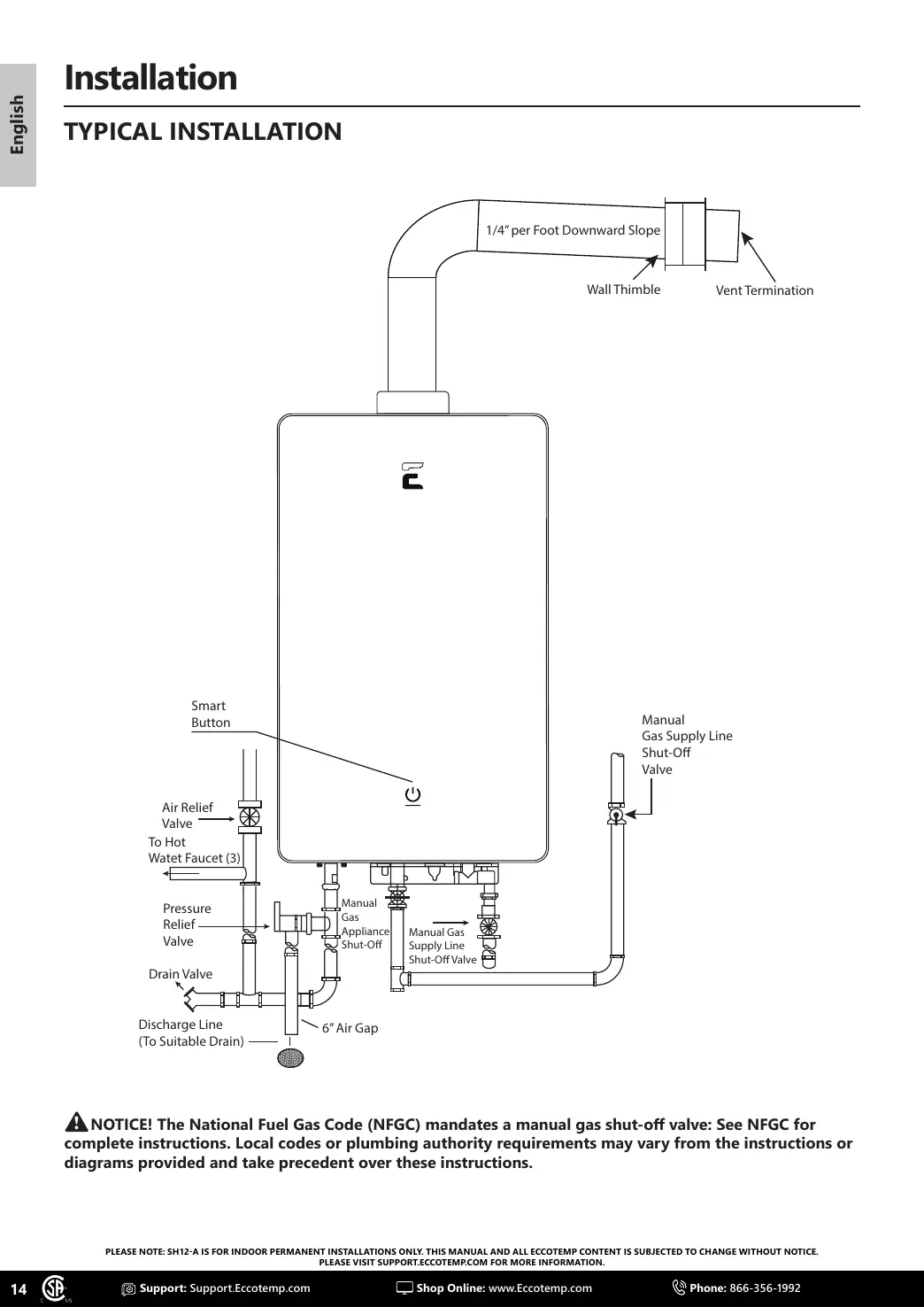

TYPICAL INSTALLATION
NOTICE! The National Fuel Gas Code (NFGC) mandates a manual gas shut-o valve: See NFGC for
complete instructions. Local codes or plumbing authority requirements may vary from the instructions or
diagrams provided and take precedent over these instructions.
!

1/4” per Foot Downward Slope
Wall Thimble
Vent Termination
Manual
Gas Supply Line
Shut-O
Valve
Air Relief
Valve
To Hot
Watet Faucet (3)
Pressure
Relief
Valve
Drain Valve
Discharge Line
(To Suitable Drain)
6” Air Gap
Manual
Gas
Appliance
Shut-O
Manual Gas
Supply Line
Shut-O Valve
Smart
Button
