English
Maintenance

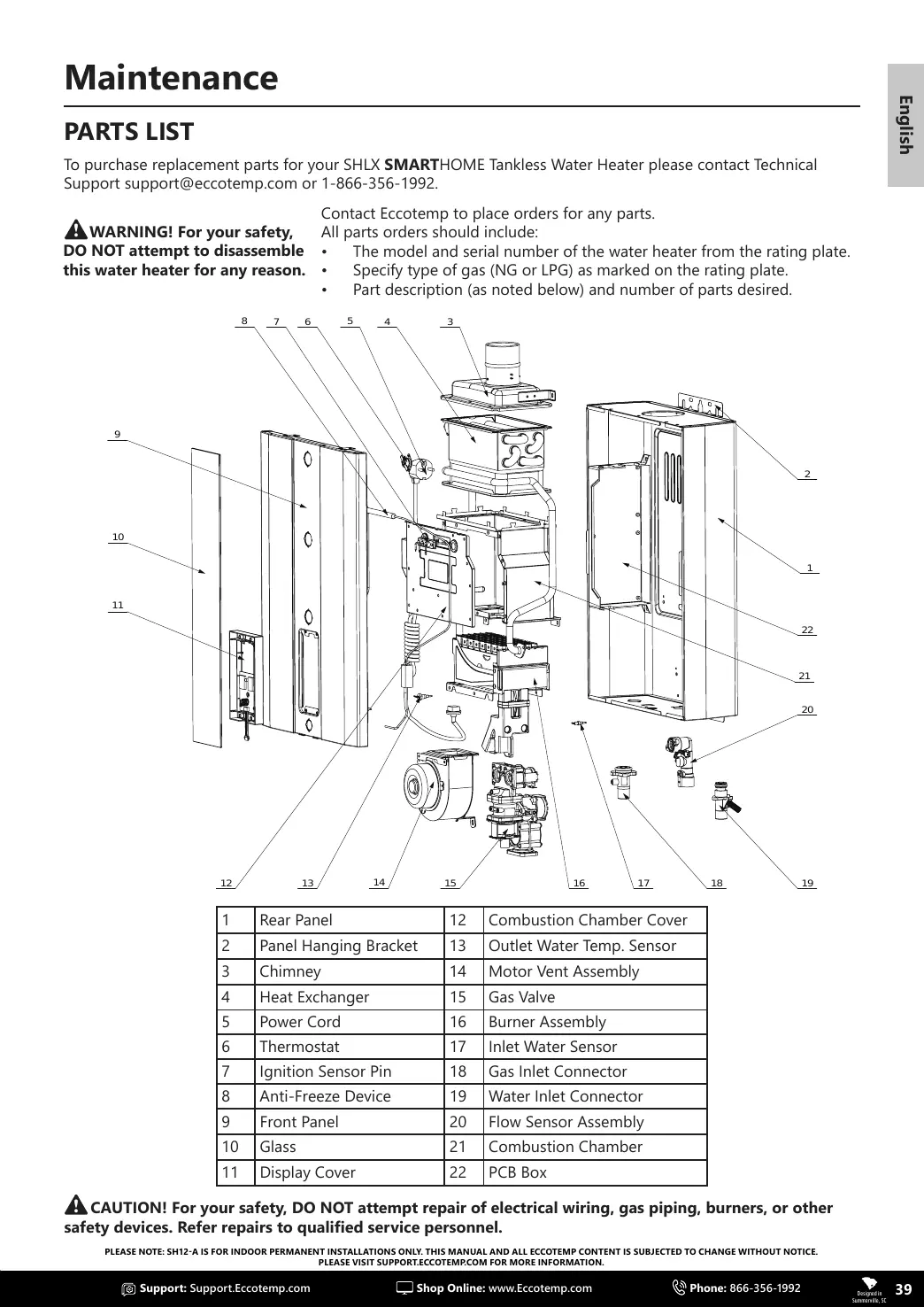

PARTS LIST
To purchase replacement parts for your SHLX SMARTHOME Tankless Water Heater please contact Technical
Support support@eccotemp.com or 1-866-356-1992.
Contact Eccotemp to place orders for any parts.
All parts orders should include:
• The model and serial number of the water heater from the rating plate.
• Specify type of gas (NG or LPG) as marked on the rating plate.
• Part description (as noted below) and number of parts desired.
WARNING! For your safety,
DO NOT attempt to disassemble
this water heater for any reason.
!

CAUTION! For your safety, DO NOT attempt repair of electrical wiring, gas piping, burners, or other
safety devices. Refer repairs to qualied service personnel.
!

7
1
2
36
10
22
20
191815
14
13
21
17
9
11
12
4
16
85
1 Rear Panel 12 Combustion Chamber Cover
2 Panel Hanging Bracket 13 Outlet Water Temp. Sensor
3 Chimney 14 Motor Vent Assembly
4 Heat Exchanger 15 Gas Valve
5 Power Cord 16 Burner Assembly
6 Thermostat 17 Inlet Water Sensor
7 Ignition Sensor Pin 18 Gas Inlet Connector
8 Anti-Freeze Device 19 Water Inlet Connector
9 Front Panel 20 Flow Sensor Assembly
10 Glass 21 Combustion Chamber
11 Display Cover 22 PCB Box
