Eclipse EA500 User Manual

5080735B
STRUCTURE AND EQUIPMENT
REMOVED FOR CLARITY
NOTE:
1
FWD
FWD
A
A
5
6
2
3
4

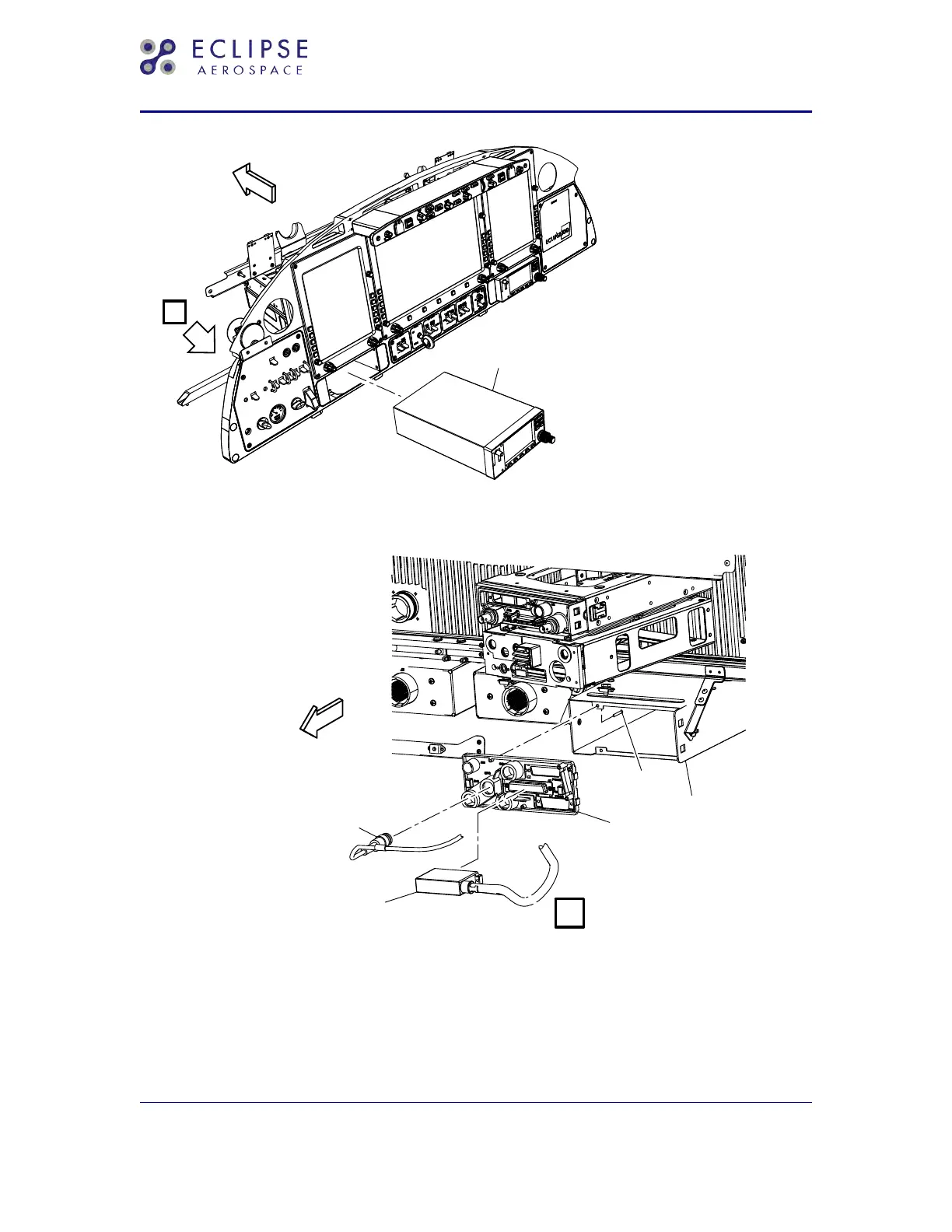

GPS - Removal/Installation
Figure 401 (Sheet 1 of 1)
EA500 Aircraft Maintenance Manual — 06-117751
Temporary Revision No. 34-21
EFFECTIVITY: 0001-0262 POST SB 500-99-005; AND
0266-0267; ALL POST MB 500-31-018
34-50-11
CONFIG B
Page 403-Inst
Sep 30/20
© 2020 Eclipse Aerospace, Inc.
